RTS Model TR-240 Beltpack
Owners / Users Manual
(Preliminary Information)
General Description

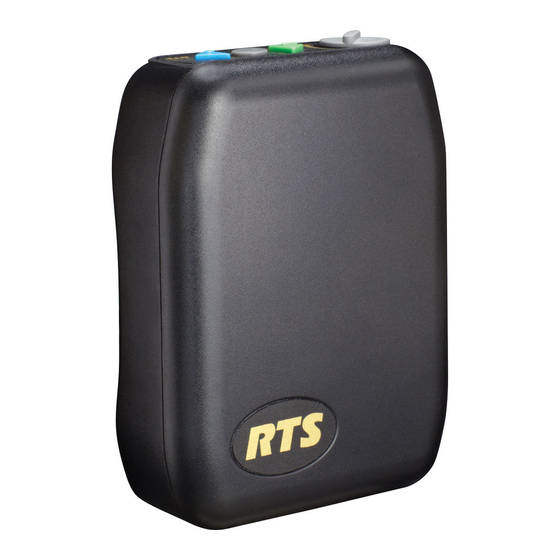

The RTS model TR-240 beltpack
transceiver is intended for use as a wireless
full-duplex intercom radio to be worn on a
belt. Multiple TR-240 beltpacks can be used
with a BTR-240 base station transceiver or a
BTR-24 access point to communicate with
each other over-the-air.
The TR-240 uses the IEEE 802.11b
technology to transmit / receive within one
channel of the 1 – 11 (2.412 to 2.462 GHz)
allowable channels of the 2.4 GHz ISM
band. Its operation is license free.
The typical line-of-sight distances for the
system may be 300 feet.
The transmit and receive antennas are
internal to the beltpack so the unit has a
smaller profile. The outer case also provides
extra protection against possible damage to
the antennas.
The TR-240 is powered via an internal Li-
Ion battery that will provide up to 8 hours of
run time at room temperature.
TR-240 Users Manual - Preliminary
Rev D – 3 / 09 / 2011
The top panel provides on/off/volume
control, channel select buttons and lights,
talk button and battery status light.
Page 1 of 7
