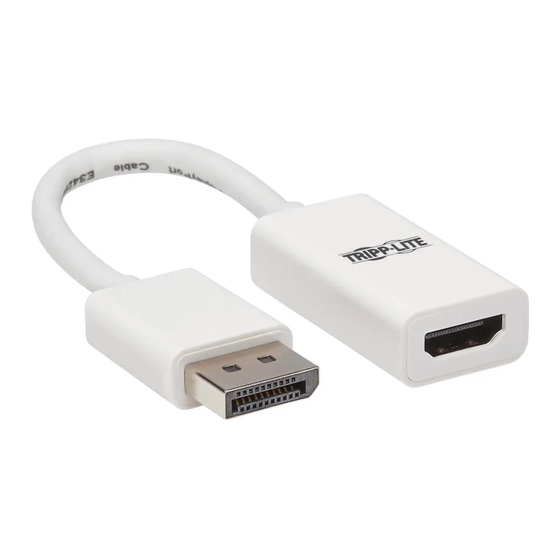

Tripp Lite P136-06N-HDR-W Quick Start Manual

Displayport 1.2 to 4k hdmi adapter with hdr / mini displayport 1.2 to 4k hdmi adapter with hdr
Hide thumbs
Table of Contents
  • Specifications
  • Guía de Inicio Rápido
  • Instalación
  • Especificaciones
  • Guide de Démarrage Rapide
  • Caractéristiques Techniques
  • Garantie
  • Краткое Руководство Пользователя

Advertisement

Available languages

Available languages

  • ENGLISH, page 1

Quick Links

Download this manual
DisplayPort 1.2
to 4K HDMI Adapter
with HDR
Model: P136-06N-HDR-W
Product Features
• Connect a 4K HDMI monitor to a DisplayPort or Mini DisplayPort on your laptop, tablet or computer
• HDMI port supports 4K x 2K Ultra High Definition (UHD) video resolutions up to 3840 x 2160 (60 Hz)
and HDR
• Supports HDMI 2.0, HDCP 2.2 and HDR 10
• Supports 4K 60 Hz RGB 4:4:4, YCBCR 4:4:4 8-Bit, YCBCR 4:2:2 8-Bit and YCBCR 4:2:0 10-Bit
• Supports EDID and 3D
System Requirements
• Computer or tablet with a DisplayPort or Mini DisplayPort
Package Includes
• P136-06N-HDR-W or P137-06N-HDR-W
Optional Accessories
• P568-XXX-CERT-Series Certified High-Speed
HDMI Cables
Installation
1. Connect the adapter to the DisplayPort or Mini DisplayPort on your computer or tablet.
2. Using an HDMI cable (such as Tripp Lite P568-XXX-CERT-Series cables) connect a monitor to the
adapter's HDMI port.
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
19-04-380-93398F.indb 1
Quick Start Guide
Español 3 • Français 5 • Русский 7
WARRANTY REGISTRATION
Register your product today and be automatically entered to
win an ISOBAR surge protector in our monthly drawing!
www.tripplite.com/warranty
Copyright © 2019 Tripp Lite. All rights reserved.
Mini DisplayPort 1.2
to 4K HDMI Adapter
with HDR
Model: P137-06N-HDR-W
• Quick Start Guide
• P568-006 High Speed HDMI Cable – 6 ft.
1
5/22/2019 10:21:48 AM

Advertisement

Table of Contents
loading

Related Manuals for Tripp Lite P136-06N-HDR-W

Summary of Contents for Tripp Lite P136-06N-HDR-W

  • Page 1 HDMI Cables Installation 1. Connect the adapter to the DisplayPort or Mini DisplayPort on your computer or tablet. 2. Using an HDMI cable (such as Tripp Lite P568-XXX-CERT-Series cables) connect a monitor to the adapter’s HDMI port. WARRANTY REGISTRATION Register your product today and be automatically entered to win an ISOBAR surge protector in our monthly drawing! www.tripplite.com/warranty...

  • Page 2: Specifications

    3-Year Limited Warranty with the limits for a Class B digital device, pursuant to part Tripp Lite warrants its products to be free from defects in 15 of the FCC Rules. These limits are designed to provide materials and workmanship for a period of three (3) years from reasonable protection against harmful interference in a the date of initial purchase.

  • Page 3: Guía De Inicio Rápido

    Instalación 1. Conecte el adaptador al puerto DisplayPort o Mini DisplayPort en su computadora o tableta. 2. Usando un cable HDMI (Como los cables Serie P568-XXX-CERT de Tripp Lite) conecte un monitor al puerto HDMI del adaptador. 1111 W. 35th Street, Chicago, IL 60609 EE. UU. • www.tripplite.com/support Copyright ©...

  • Page 4: Especificaciones

    Información de Cumplimiento con WEEE para los Clientes y Recicladores de Tripp Lite (Unión Europea) Tripp Lite garantiza durante un período de tres (3) años a partir de la fecha de compra inicial que este producto no presenta Conforme a la Directiva de Desechos de Equipos defectos de materiales ni de mano de obra.

  • Page 5: Guide De Démarrage Rapide

    1. Permet de raccorder l'adaptateur au DisplayPort ou au Mini DisplayPort sur l'ordinateur ou la tablette. 2. À l'aide d'un câble HDMI (comme les câbles de la série P568-XXX-CERT de Tripp Lite) raccorder un moniteur au port HDMI de l'adaptateur.

  • Page 6: Caractéristiques Techniques

    Lite, ils ont droit : de matériel (« RMA ») auprès de Tripp Lite ou d'un centre de • D'envoyer l'équipement usagé au recyclage pourvu réparation autorisé par Tripp Lite. Les produits doivent être qu'il soit remplacé...

  • Page 7: Краткое Руководство Пользователя

    Установка Подключите переходник к разъему DisplayPort или Mini DisplayPort своего компьютера или планшета. Подключите монитор к HDMI-порту переходника с помощью HDMI-кабеля (например, кабеля Tripp Lite серии P568-XXX-CERT). 1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support Охраняется авторским правом © 2019 Tripp Lite. Перепечатка запрещается.
  • Page 8 (являющихся резидентами Европейского союза) течение трех (3) лет с момента первоначальной покупки. Обязательства компании Tripp Lite по настоящей гарантии ограничиваются ремонтом или заменой (по ее Согласно положениям Директивы об утилизации отходов единоличному усмотрению) любых таких дефектных изделий. Для получения услуг...
