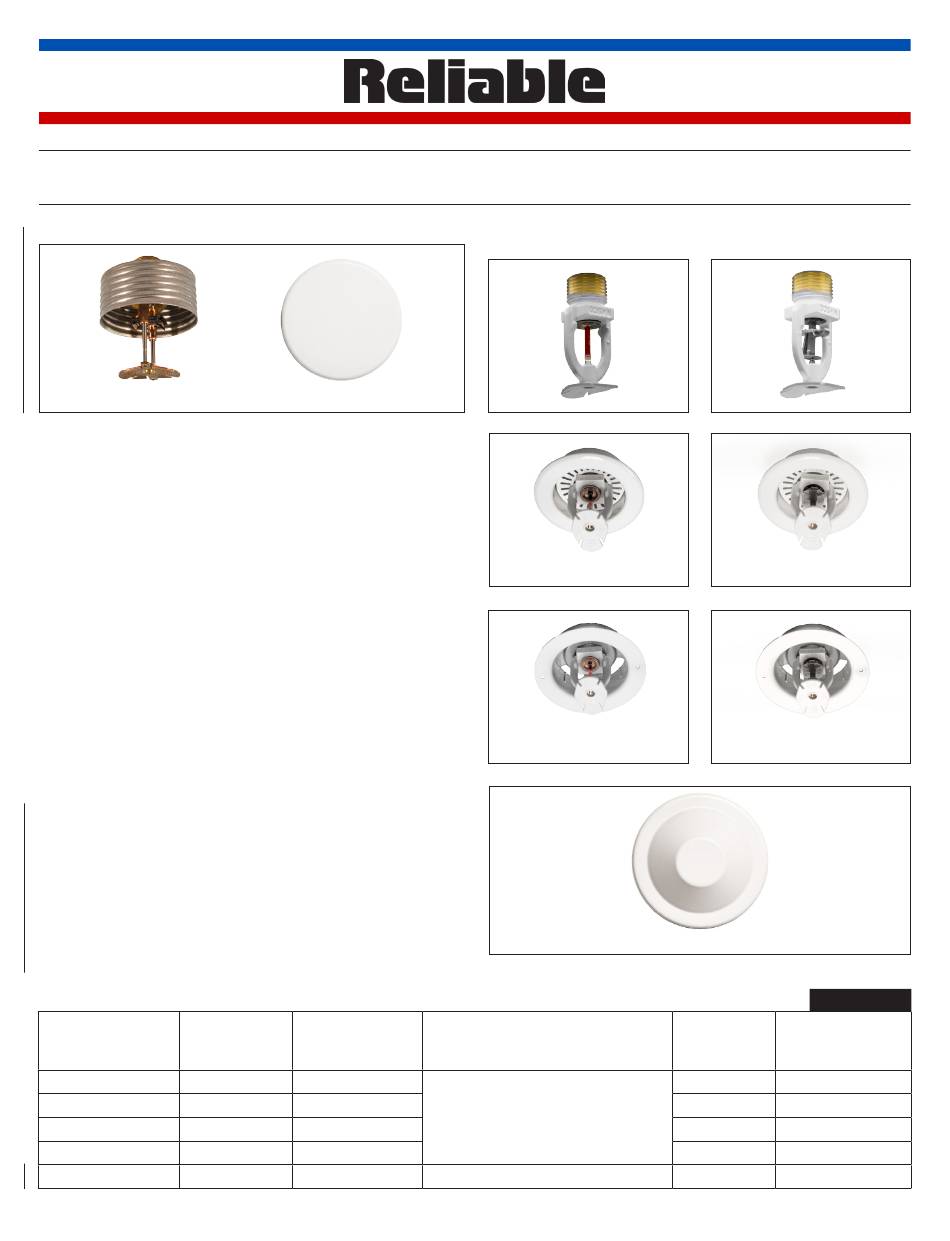

Reliable LT56 Series Manual

Model LT56 Series Special Sprinklers
Designed specifically for corridors and hallways
Model LT56C

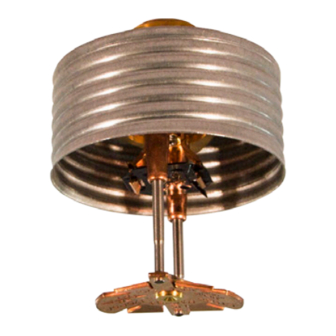

Model LT56C Sprinkler with Model G4 Flat Cover Plate
Product Features
• 28 ft x 10 ft (8.5 m x 3 m) max. coverage area
• cULus Listed for Light Hazard occupancies
• Increased spacing and reduced water demand
in corridors compared with traditional extended
coverage sprinklers
Product Description
Model LT56 series sprinklers are cULus Listed Specific Ap-
plication sprinklers designed for installation in accordance
with NFPA 13. The sprinklers produce a spray pattern that is
specifically designed to cover long narrow spaces, such as
corridors and hallways, with fewer sprinklers and less wa-
ter demand compared with traditional extended coverage
sprinklers.
Model LT56 series sprinklers are quick-response sprinklers
for use in Light Hazard occupancies only. Model LT56 and
Model LT56-300 sprinklers have a glass bulb operating ele-
ment. Model LT56L, LT56L-300, and LT56C sprinklers have
a fusible link operating element. Model LT56, LT56-300,
LT56L, and LT56L-300 sprinklers are available with Model
FV recessed escutcheons, Model FP recessed escutch-
eons, or Model CCP concealed cover plates. Model LT56C
sprinklers require a Model G4 flat concealed cover plate.
Operating
Sprinkler Model
Element
LT56 Glass Bulb
LT56L Fusible Link
LT56-300 Glass Bulb
LT56L-300 Fusible Link
LT56C Fusible Link
Max. Working
Pressure
psi (bar)
250 (17.2)
250 (17.2)
Pendent, Recessed Pendent or
Conical Concealed Pendent
300 (21)
300 (21)
175 (12)
www.reliablesprinkler.com
Bulletin 058 Rev. B November 2016
Models LT56 & LT56-300
Model FV Escutheon
Model FP Escutheon
Model CCP Cover Plate
Styles
Flat Concealed
K5.6 (80 Metric)
cULus Listed
Models LT56L & LT56L-300
Model FV Escutheon
Model FP Escutheon
Table A
Sprinkler
Coverage
Identification
Areas
Number (SIN)
Table B RA5814
Table C R5814
Table D RA5914
Table E R5914
Table F RA5994
