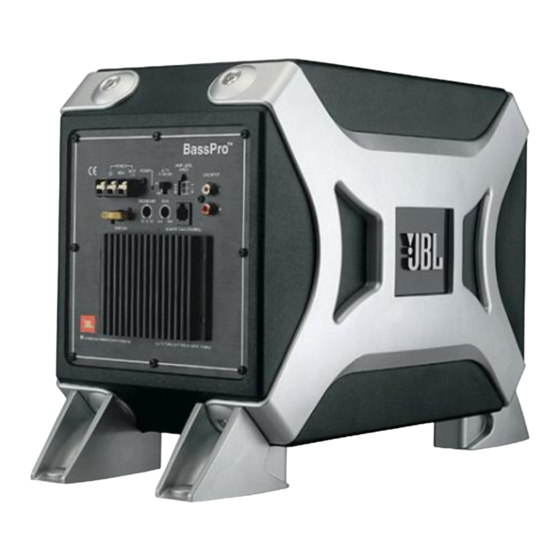

BASSPRO

Service Manual

Specification

Subwoofer type

Enclosure type

Power handling RMS

Freq. response

RCA Input

High Level Input

Remote Level Control

Input

Variable Electronic

Crossover

BassPro™

165mm

Band-pass Box

100W

20-100Hz

Yes

Yes (option)

70Hz – 100Hz

Need help?

Do you have a question about the BassPro and is the answer not in the manual?

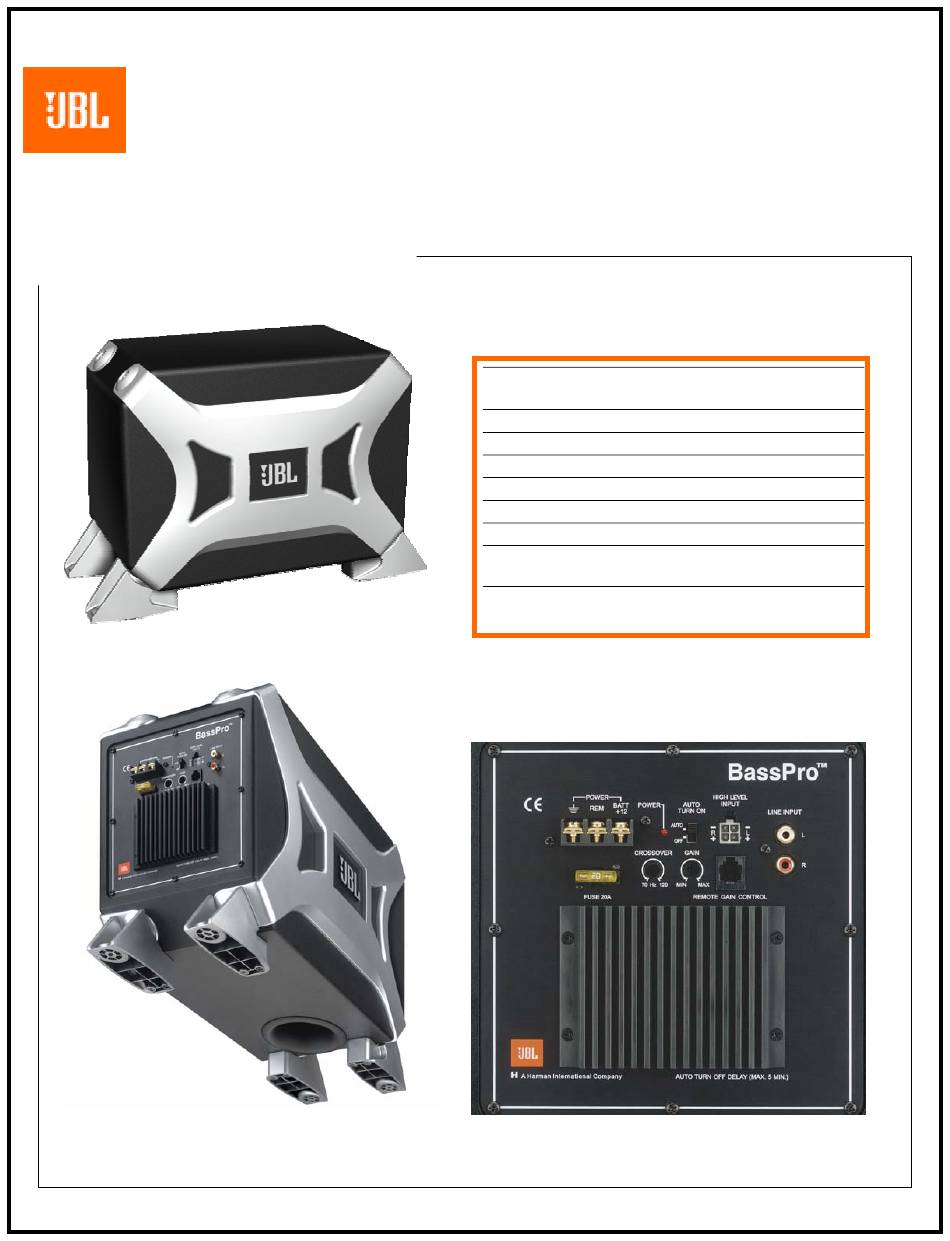

Page 1 BASSPRO Service Manual Specification BassPro™ Subwoofer type 165mm Enclosure type Band-pass Box Power handling RMS 100W Freq. response 20-100Hz RCA Input High Level Input Remote Level Control Yes (option) Input Variable Electronic 70Hz – 100Hz Crossover...
Page 3 Part number Description Remark 431-000-00753 Packing material - EPE 406-000-00929 owner's manual 405-000-00285 warranty card 402-000-01592 Gift Box 400-000-03792 Master Carton 371-000-00330 Screw ASS'Y 283-000-00135 unweaven bag 241-060-00541 Wooden Cabinet port tube inside 1 + 4 Not for sale 301-ABS-00352 Baffle ASS'Y equals ABS side and logo inclued 2 + 3 325-ABS-00420...
Page 5 BASS PRO AMP REFERENCE DESCRIPTION PART NO. AMP ASS'Y Complete 011-AA08-00268 PCB ASS'Y PCB ASS'Y Complete 051-AA00-00534 R5,6,7,8 Resistor100Ω 2W ±5% 20mm 110-20101j20 Variable Resistor R0901N-JMD1-B20K 115-v203b101 Variable Resistor R0901G-2KDQ-B20K 115-v203b202 Inductor 100UH 1/2W 120-12101k3 Inductor Ferrite 5uH 15A CR630*5R0KUM 122-14050k4160 Electrolytic Cap.
Page 6: Remote Control
REFERENCE DESCRIPTION PART NO. R43 ,34 Resistor 470K 1/6W ±5% CF 110-16474j26 R302,3 Resistor 510Ω 1/6W ±5% CF 110-16511j26 Resistor 51K 1/6W ±5% CF 110-16513j26 Resistor 510K 1/6W ±5% CF 110-16514j26 Resistor 680Ω 1/6W ±5% CF 110-16681j26 R1,2 Resistor 6.8K 1/6W ±5% CF 110-16682j26 R30,301 Resistor 8.2K 1/6W ±5% CF...
