Component List - ACO Grease Capture Installation And Maintenance Manual

ACO Grease Capture
Installation and Maintenance Manual
3
4
B
A
15
12
4
7 7 1
27 26 25
DETAIL A
21 22 19 16
17
18
6
18
5 20
18
14
11
7 9
7 28
24 23
DETAIL B

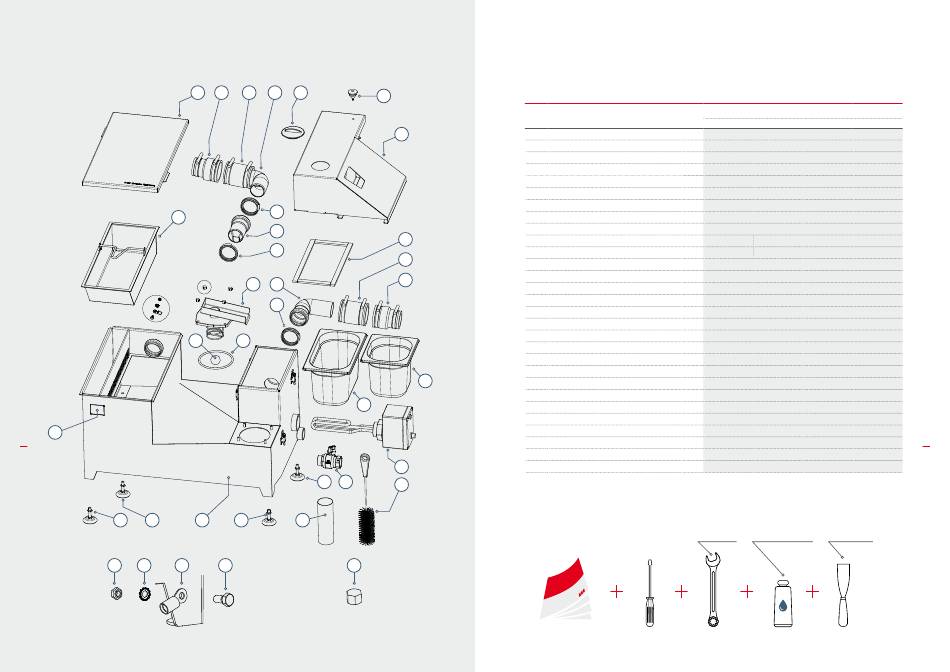

Component list

Item
Description
No.
1 Welded container
2
2 Outlet cover
3 Inlet cover
4 Strainer basket
5 Oil valve
6 Standard flow reducer
7 Leveling foot with locknut
8 Heater
9 Drain valve
13
10 Gastro container 1/6
11 Gastro container 1/4
22
12 ACO logo
13 Gasket
21
14 O-ring
15 Ball
16 Red cap
17 Rubber plug
18 Pipe seal*
19 Inlet elbow*
20 Outlet elbow*
21 Rubber coupling 3" to 2"*
10
22 Rubber coupling 2"*
23 Blind nut
24 Bolt
25 Grounding eye
26 Lock washer
27 Nut
28 Cleaning pipe
8 29 Brush
29
(*not required for every installation)
ACO Grease Capture
Installation and Maintenance Manual
Total
Article No. of 1 pcs
pcs
AGC 050 AGC 100 AGC 150
1 E64656 E64084 E64675
1 E64669 E64105 E64690
1 E64663 E64104 E64689
1 E64661 E64110 E64682
1 E64109
1 E65002
4 L16313
1 Contact your dealer for specification
1 M00676
1 M01995 -
1 - M02186
1 M02270
1 M02182
1 NM4348
1 E65006
1 M02168
1 NM2542
3 98400
1 L16533
1 L16532
2 M01717
2 M01718
4 M02281
1 M02271
1 M02187
1 M02272
1 M02273
1 L16535
1 M02021
Size 10 mm Universal Lubricant Plastic scraper
AGC 220
E64702
E64736
E64710
E64738
