7] MOUNTING

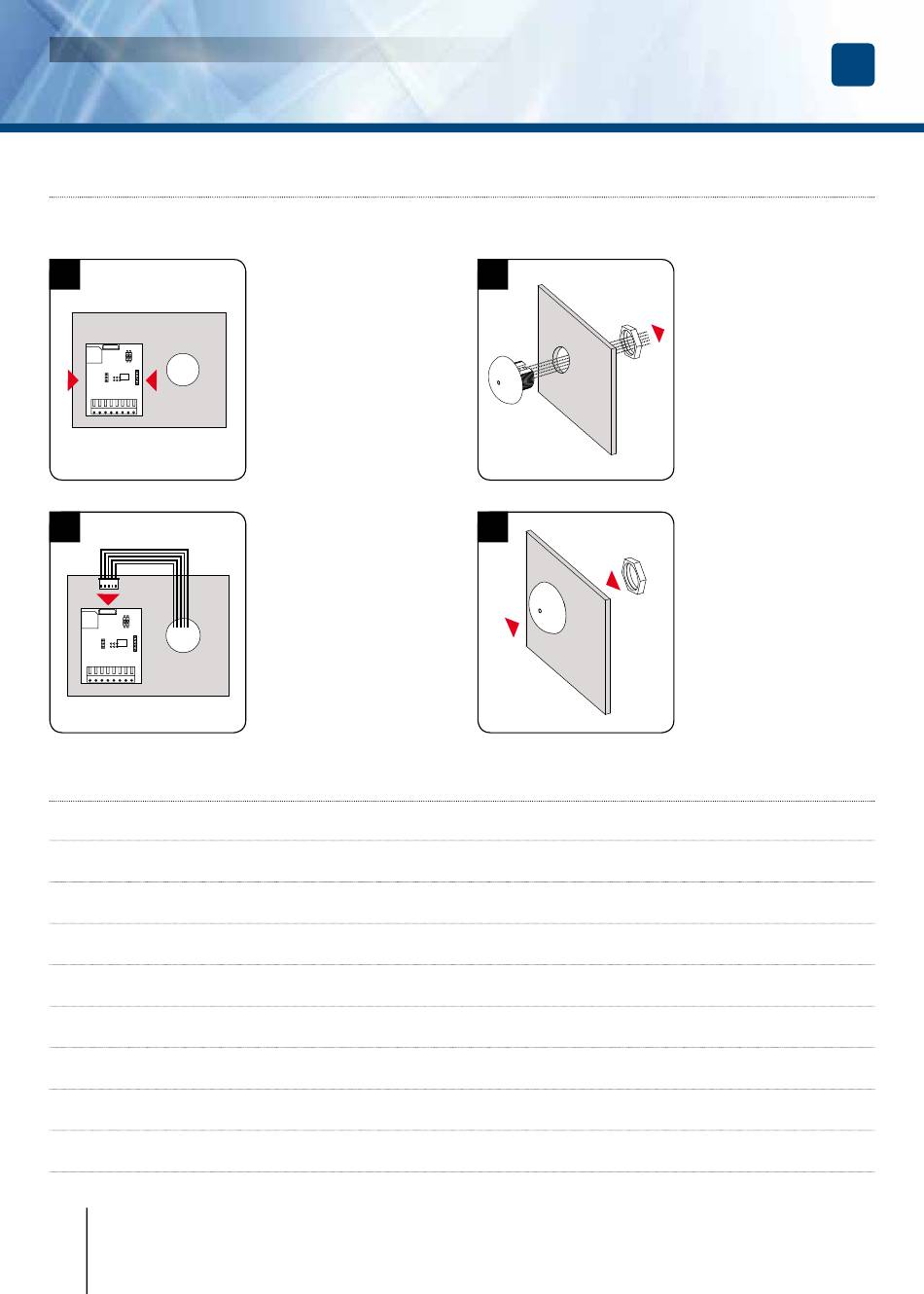

After checking that the fi tting kit is complete, you can start the fi nal installation of your reader.
1
3
8] NOTES
cdvi.com
8
cdvigroup.com
Fix the DGLPTWLC box
inside the front panel
(near the head mounting
screw hole) with double
sided
adhesive tape.
Connect the cable
to the box and make
the connections to the
controller or the panel.
2
4
EN
Feed the cables through
the mounting screw
hole, and then into
the mounting nut.
Fix the nut to the head
stud to complete the
installation.
