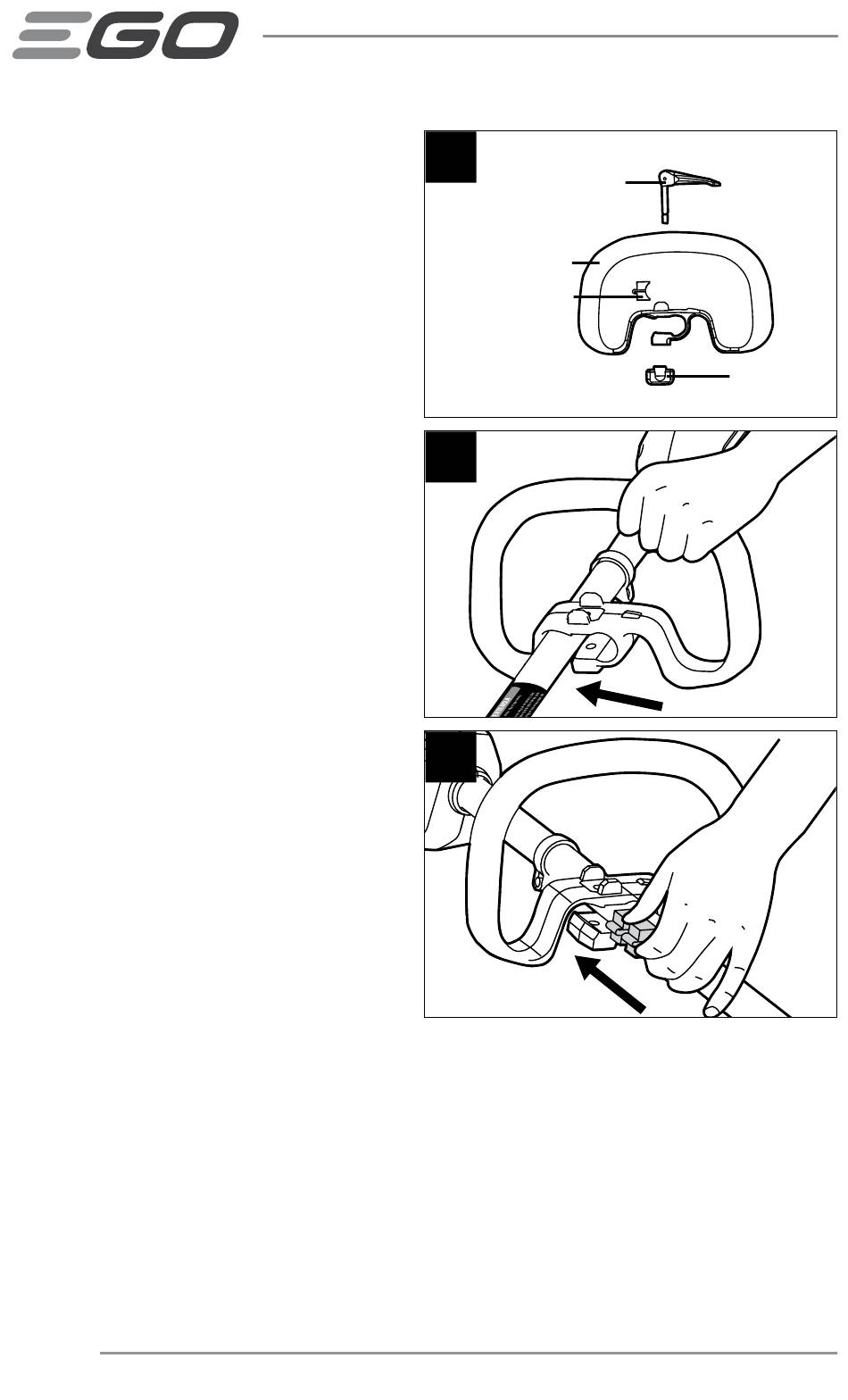

MOUNTING AND ADJUSTING THE
LOOP HANDLE
1. Loosen and remove the locking pole
and wing nut from the loop handle
(Fig. 4).
2. Push the loop handle onto the
carbon-fiber shaft between the
warning label and the threshold ring
(Fig. 5).
3. Insert the clamping block into the
handle slot (Fig. 6).
16
56-VOLT LITHIUM-ION REAR-MOTOR 15" STRING TRIMMER — STX3800
4
Locking Pole
Loop Handle
Clamping Block
5
6
Wing Nut
