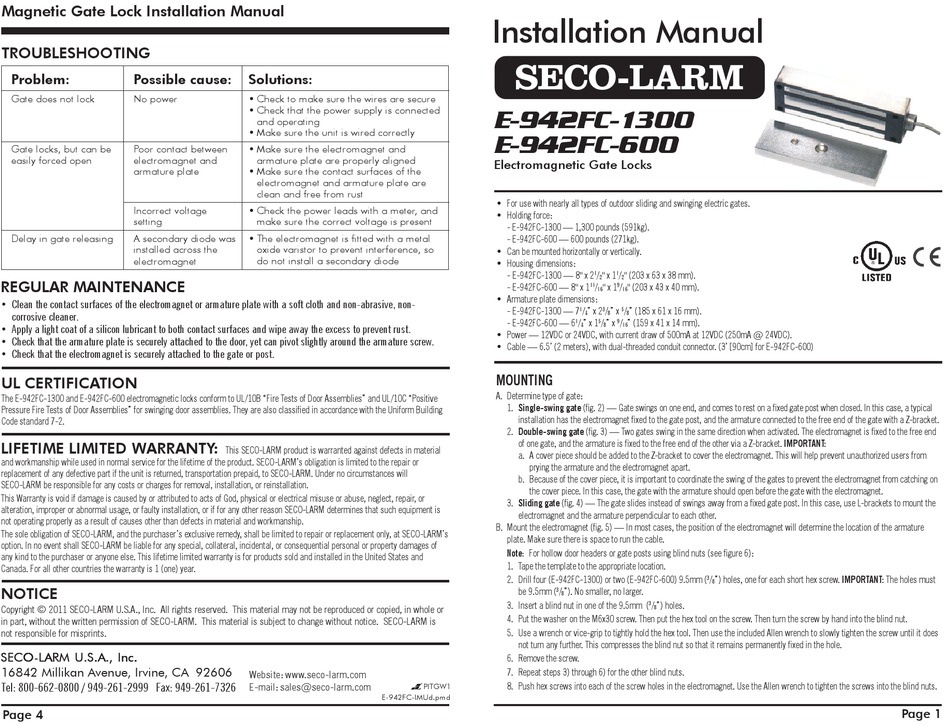

SECO-LARM E-942FC-1300 Installation Manual

Magnetic Gate Lock Installation Manual

TROUBLESHOOTING

Problem: Possible cause:
Gate does not lock No power
Gate locks, but can be Poor contact between
easily forced open electromagnet and
armature plate
Incorrect voltage
setting
A secondary diode was
Delay in gate releasing
installed across the
electromagnet
REGULAR MAINTENANCE
• Clean the contact surfaces of the electromagnet or armature plate with a soft cloth and non-abrasive, non-
corrosive cleaner.
• Apply a light coat of a silicon lubricant to both contact surfaces and wipe away the excess to prevent rust.
• Check that the armature plate is securely attached to the door, yet can pivot slightly around the armature screw.
• Check that the electromagnet is securely attached to the gate or post.
UL CERTIFICATION
The E-942FC-1300 and E-942FC-600 electromagnetic locks conform to UL/10B "Fire Tests of Door Assemblies" and UL/10C "Positive
Pressure Fire Tests of Door Assemblies" for swinging door assemblies. They are also classified in accordance with the Uniform Building
Code standard 7-2.
LIFETIME LIMITED WARRANTY:
and workmanship while used in normal service for the lifetime of the product. SECO-LARM's obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM. Under no circumstances will
SECO-LARM be responsible for any costs or charges for removal, installation, or reinstallation.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair, or
alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines that such equipment is
not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser's exclusive remedy, shall be limited to repair or replacement only, at SECO-LARM's
option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential personal or property damages of
any kind to the purchaser or anyone else. This lifetime limited warranty is for products sold and installed in the United States and
Canada. For all other countries the warranty is 1 (one) year.
NOTICE
Copyright © 2011 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or
in part, without the written permission of SECO-LARM. This material is subject to change without notice. SECO-LARM is
not responsible for misprints.
SECO-LARM O A U.S.A., Inc. . U.S.A., Inc. .A
SECO-LARM O A .A .
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326
Page 4
Solutions:
• Check to make sure the wires are secure
• Check that the power supply is connected
and operating
• Make sure the unit is wired correctly
• Make sure the electromagnet and
armature plate are properly aligned
• Make sure the contact surfaces of the
electromagnet and armature plate are
clean and free from rust
• Check the power leads with a meter, and
make sure the correct voltage is present
• The electromagnet is fitted with a metal
oxide varistor to prevent interference, so
do not install a secondary diode
This SECO-LARM product is warranted against defects in material
Website: www.seco-larm.com
E-mail: sales@seco-larm.com
E-942FC-IMUd.pmd
Installation Manual
SECO-LARM
E-942FC-1300
E-942FC-600
Electromagnetic Gate Locks
• For use with nearly all types of outdoor sliding and swinging electric gates.
• Holding force:
- E-942FC-1300 — 1,300 pounds (591kg).
- E-942FC-600 — 600 pounds (271kg).
• Can be mounted horizontally or vertically.
• Housing dimensions:
- E-942FC-1300 — 8" x 2 /
1
2
- E-942FC-600 — 8" x 1 /
11
16
• Armature plate dimensions:
- E-942FC-1300 — 7 / " x 2
1
4
- E-942FC-600 — 6 / " x 1
1 5
4
• Power — 12VDC or 24VDC, with current draw of 500mA at 12VDC (250mA @ 24VDC).
• Cable — 6.5' (2 meters), with dual-threaded conduit connector. (3' [90cm] for E-942FC-600)
MOUNTING
A. Determine type of gate:
1. Single-swing gate (fig. 2) — Gate swings on one end, and comes to rest on a fixed gate post when closed. In this case, a typical
installation has the electromagnet fixed to the gate post, and the armature connected to the free end of the gate with a Z-bracket.
2. Double-swing gate (fig. 3) — Two gates swing in the same direction when activated. The electromagnet is fixed to the free end
of one gate, and the armature is fixed to the free end of the other via a Z-bracket. IMPORTANT:
a. A cover piece should be added to the Z-bracket to cover the electromagnet. This will help prevent unauthorized users from
prying the armature and the electromagnet apart.
b. Because of the cover piece, it is important to coordinate the swing of the gates to prevent the electromagnet from catching on
the cover piece. In this case, the gate with the armature should open before the gate with the electromagnet.
3. Sliding gate (fig. 4) — The gate slides instead of swings away from a fixed gate post. In this case, use L-brackets to mount the
electromagnet and the armature perpendicular to each other.
B. Mount the electromagnet (fig. 5) — In most cases, the position of the electromagnet will determine the location of the armature
plate. Make sure there is space to run the cable.
Note: For hollow door headers or gate posts using blind nuts (see figure 6):
1. Tape the template to the appropriate location.
2. Drill four (E-942FC-1300) or two (E-942FC-600) 9.5mm (
be 9.5mm ( / "). No smaller, no larger.
3
8
3. Insert a blind nut in one of the 9.5mm (
4. Put the washer on the M6x30 screw. Then put the hex tool on the screw. Then turn the screw by hand into the blind nut.
5. Use a wrench or vice-grip to tightly hold the hex tool. Then use the included Allen wrench to slowly tighten the screw until it does
not turn any further. This compresses the blind nut so that it remains permanently fixed in the hole.
6. Remove the screw.
7. Repeat steps 3) through 6) for the other blind nuts.
8. Push hex screws into each of the screw holes in the electromagnet. Use the Allen wrench to tighten the screws into the blind nuts.
® PITGW1
" x 1 / " (203 x 63 x 38 mm).
1
2
" x 1 / " (203 x 43 x 40 mm).
9
16
/ " x / " (185 x 61 x 16 mm).
3 5
8 8
/ " x / " (159 x 41 x 14 mm).
9
8 16
/ ") holes, one for each short hex screw. IMPORTANT: The holes must
3
8
3 / ") holes.
8
