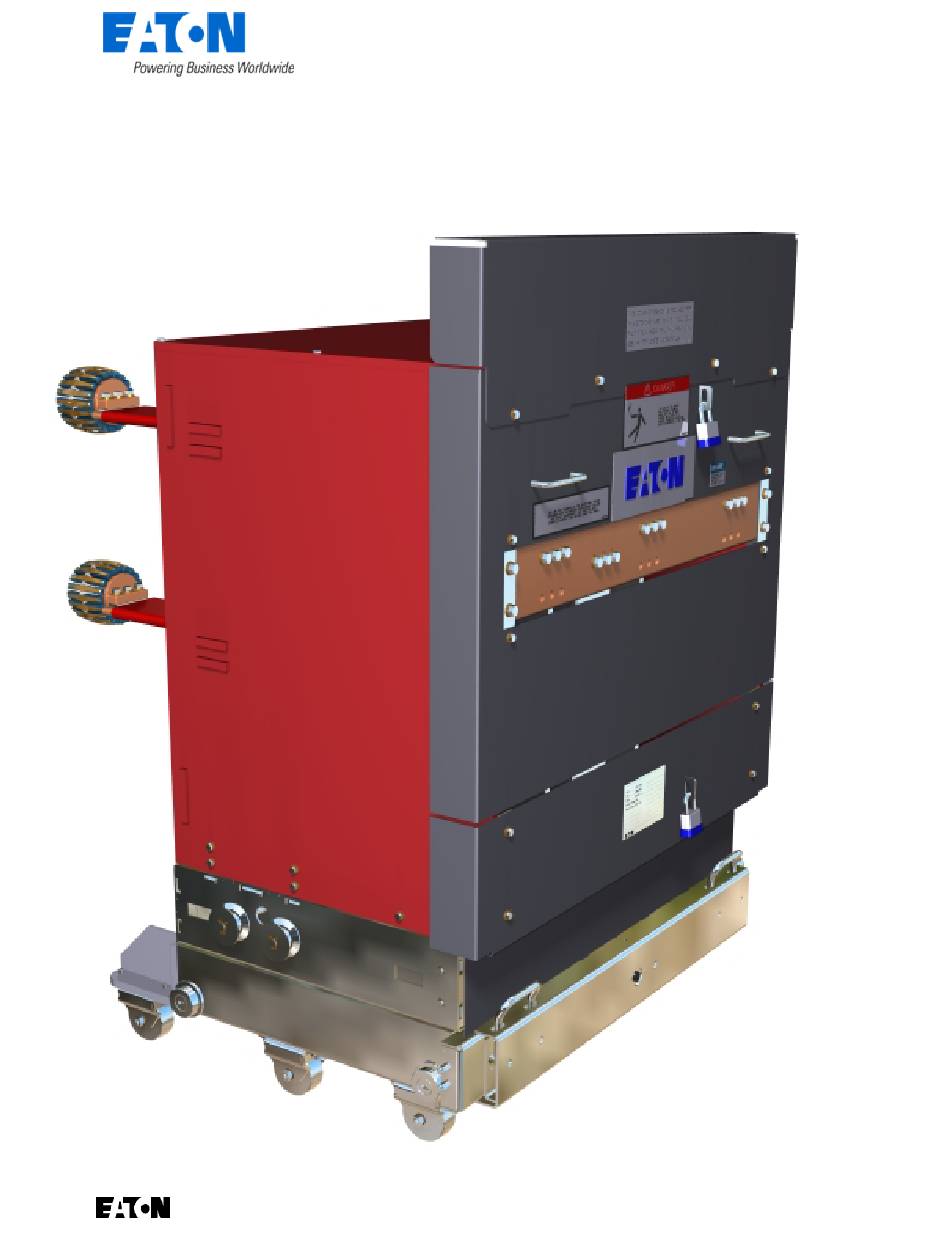

- Page 1 38kV VCPW-HD SMG&TD IB131014EN Effective 12/2015 - 1 - IB131014EN...
- Page 2 READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE ATTEMPTING TO USE THIS DEVICE. IMPROPER USE CAN RESULT IN DEATH, BODILY INJURYAND/OR PROPERTY DAMAGE. BECAUSE OF THE UNIQUE APPLICATION AND VAST VARIETY OF SYSTEM AND USERS REQUIREMENTS, SPECIFIC OPERATING PROCEDURES MUST DEVELOPED BY THE USER. FAILURE TO DEVELOP THESE PROCEDURES COULD LEAD TO IMPROPER USE OR OTHER MORE SERIOUS CONSEQUENCES.

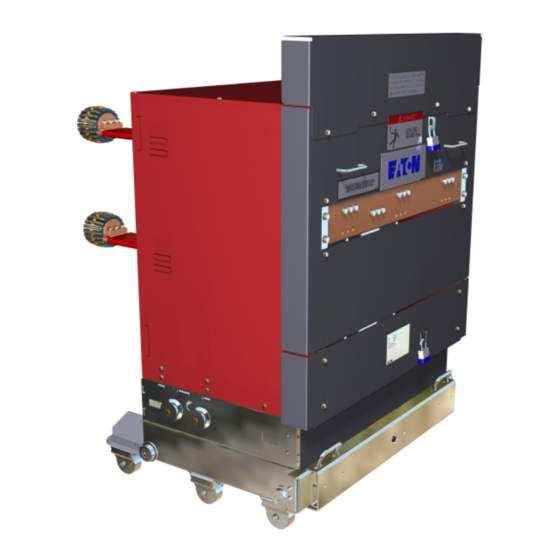

- Page 3 Description: The device consists of a draw-out element that can be inserted into a circuit breaker compartment in the same manner as a type VCPW-HD circuit breaker. It includes six terminals and ground bus connections. Each terminal is isolated from each other and the bus connection by insulating barriers.
- Page 4 Operation: The following general safe practices are recommended: Store the device in a clean, dry area free from dust, dirt, moisture, etc. Keep all insulating surfaces, which include primary support insulation barriers, clean and dry. Check all primary circuit connections to make certain that they are clean and tight.
- Page 5 Torque .375-16 (Grade 5) Hardware to 20ft./lbs. Torque .375-16 (Grade 5) Hardware to 20ft./lbs. Effective 12/2015 - 5 - IB131014EN...
- Page 6 No Front Cover Extension installed for use with breaker shown to the right & 55” Cell No Heatsink Heatsink Front Cover Extension in installed position Effective 12/2015 - 6 - IB131014EN...
- Page 7 Effective 12/2015 - 7 - IB131014EN...
- Page 8 Grounding Device with lifting fixture 72C2660G01 Effective 12/2015 - 8 - IB131014EN...
- Page 9 Effective 12/2015 - 9 - IB131014EN...
