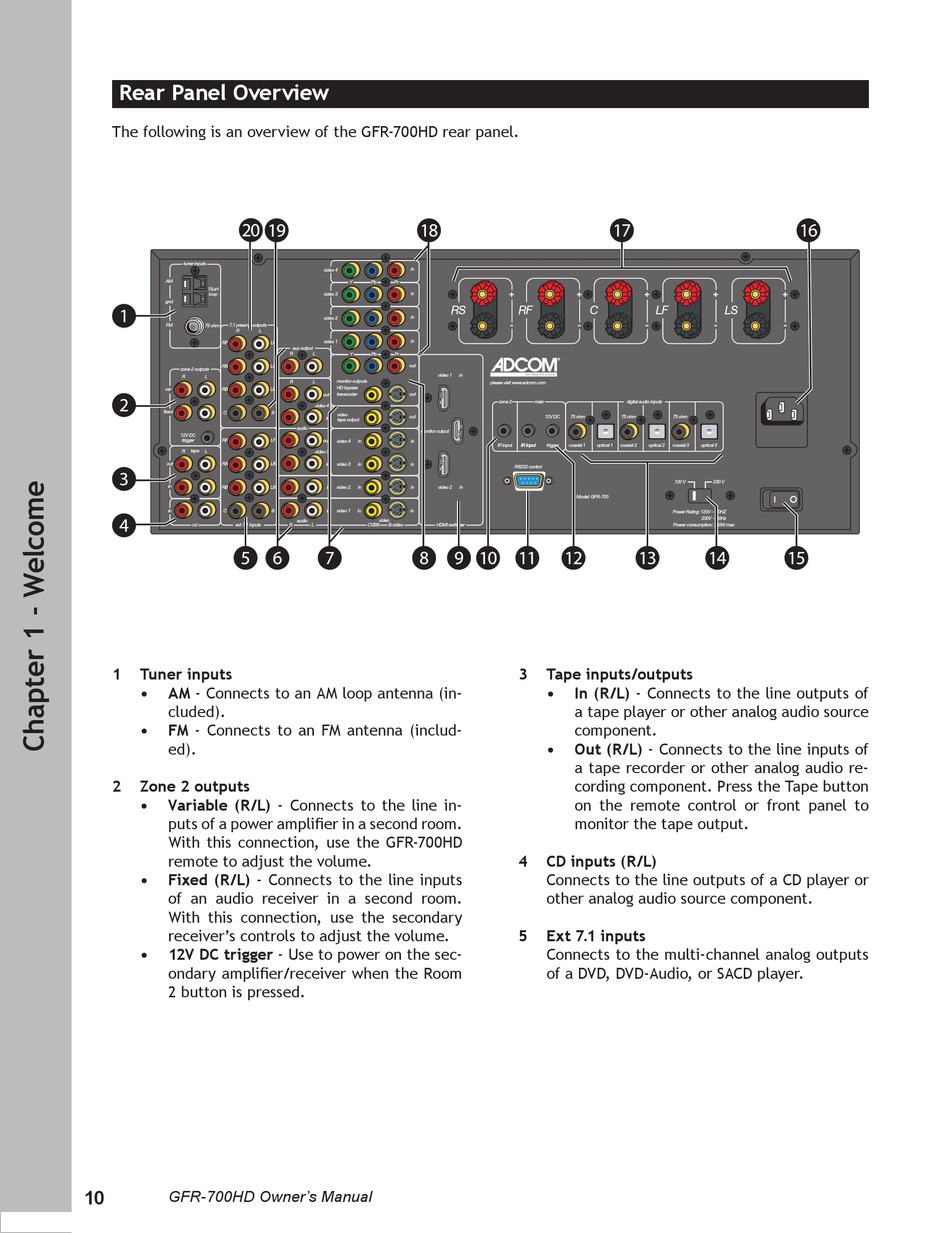

Rear Panel Overview

The following is an overview of the GFR-700HD rear panel.

��

�

��

�

��

�

��

�

��

�

��

�

��

Tuner inputs

•

AM - Connects to an AM loop antenna (in-

cluded).

•

FM - Connects to an FM antenna (includ-

ed).

Zone 2 outputs

•

Variable (R/L) - Connects to the line in-

puts of a power ampliﬁer in a second room.

With this connection, use the GFR-700HD

remote to adjust the volume.

•

Fixed (R/L) - Connects to the line inputs

of an audio receiver in a second room.

With this connection, use the secondary

receiver's controls to adjust the volume.

•

12V DC trigger - Use to power on the sec-

ondary ampliﬁer/receiver when the Room

2 button is pressed.

GFR-700HD Owner's Manual

��

�

��

�

��

�

��

�

��

�

��

�

��

�

��

Tape inputs/outputs

•

In (R/L) - Connects to the line outputs of

a tape player or other analog audio source

component.

•

Out (R/L) - Connects to the line inputs of

a tape recorder or other analog audio re-

cording component. Press the Tape button

on the remote control or front panel to

monitor the tape output.

CD inputs (R/L)

Connects to the line outputs of a CD player or

other analog audio source component.

Ext 7.1 inputs

Connects to the multi-channel analog outputs

of a DVD, DVD-Audio, or SACD player.

��
