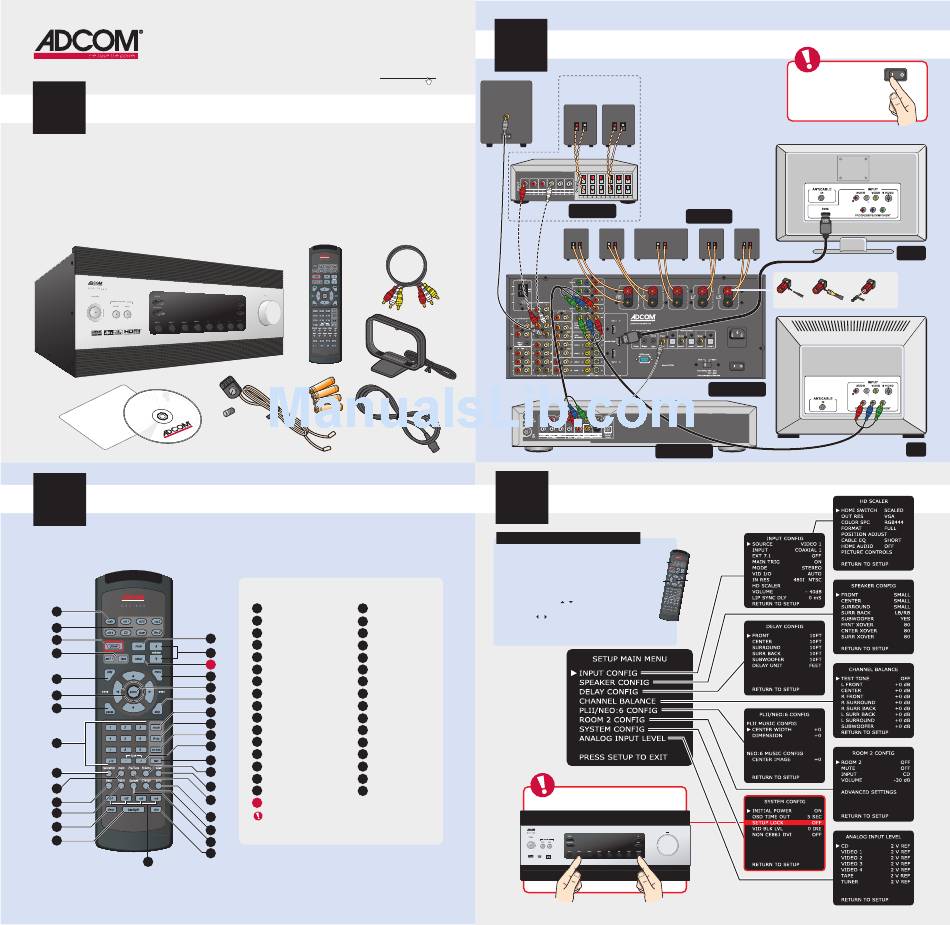

Adcom GFR-700HD Quick Start Manual

GFR-700HD Quick Start Guide
1

Unpacking

What's in the box
• GFR-700HD
• Remote control
• 1.5V AAA batteries (4)
• Audio/video cable
• FM antenna
• FM antenna adapter
• AM loop antenna
• Power cord
• Warranty card & statement
• User's guide CD
3

Remote Control Overview

1
2
15
3
16
4
17
18
5
19
6
20
7
21
22
23
8
24
25
26
9
27
10
28
11
12
29
13
30
14
31
32
33
For additional information, including updates to the User's Guide,
IR codes, and RS232 codes, visit www.adcom.com
1 Main 18 Menu
2 Source Selectors Select
19
Power Stop
3 20
4 Input Selectors Mode Select
21
5 Play 22 TH-EQ
6 Arrows 23 CH-TRIM
7 Pause 24 Tuning Up/Down
8 Direct Access Keypad 25 Test
9 FM/AM/HD 26 Stereo/Mono
10 Memory Seek
27
11 Bass/Programmable 28 Preset/Tune
12
Treble/Programmable 29 Lip Sync
13 Sleep 30 Dynamic Range
14 Backlight 31 Bypass
15 Mute 32 Dim
16 Volume Up/Down 33 Macro 1-4
17
Setup
(See Step 4 for instructions
on overriding a Setup Lock)
2

Basic Connections

Optional
speaker
Powered
Subwoofer connections
Amplifier
DVD Player
4

Setup Menus

Setup Navigation
Use the following remote control buttons to navigate
the Setup menu.
Main
• Main - Press the Main button to select the GFR-
700HD. You must first select the GRF-700HD
before you can access the Setup menu.
Arrows
• Setup - Press the Setup button to display and
exit the Setup menu.
• Arrows - Press the / buttons to move the se-
lection arrow up or down the list of menu items.
Press the / buttons to step through all avail-
able options for the selected menu item.
• Select - Press the Select button to confirm your
menu selections.
To override the Setup Lock:
Press Video 2 and Sur Mode on the front panel.
Use the switch on the back
of the unit to turn the
power on after making all
of your connections.
Speakers
Speaker connection types
Bare wire "U"-type "Banana" plug
connection spade connection connection
GFR-700HD
Setup
Select
on off
HDTV
TV
