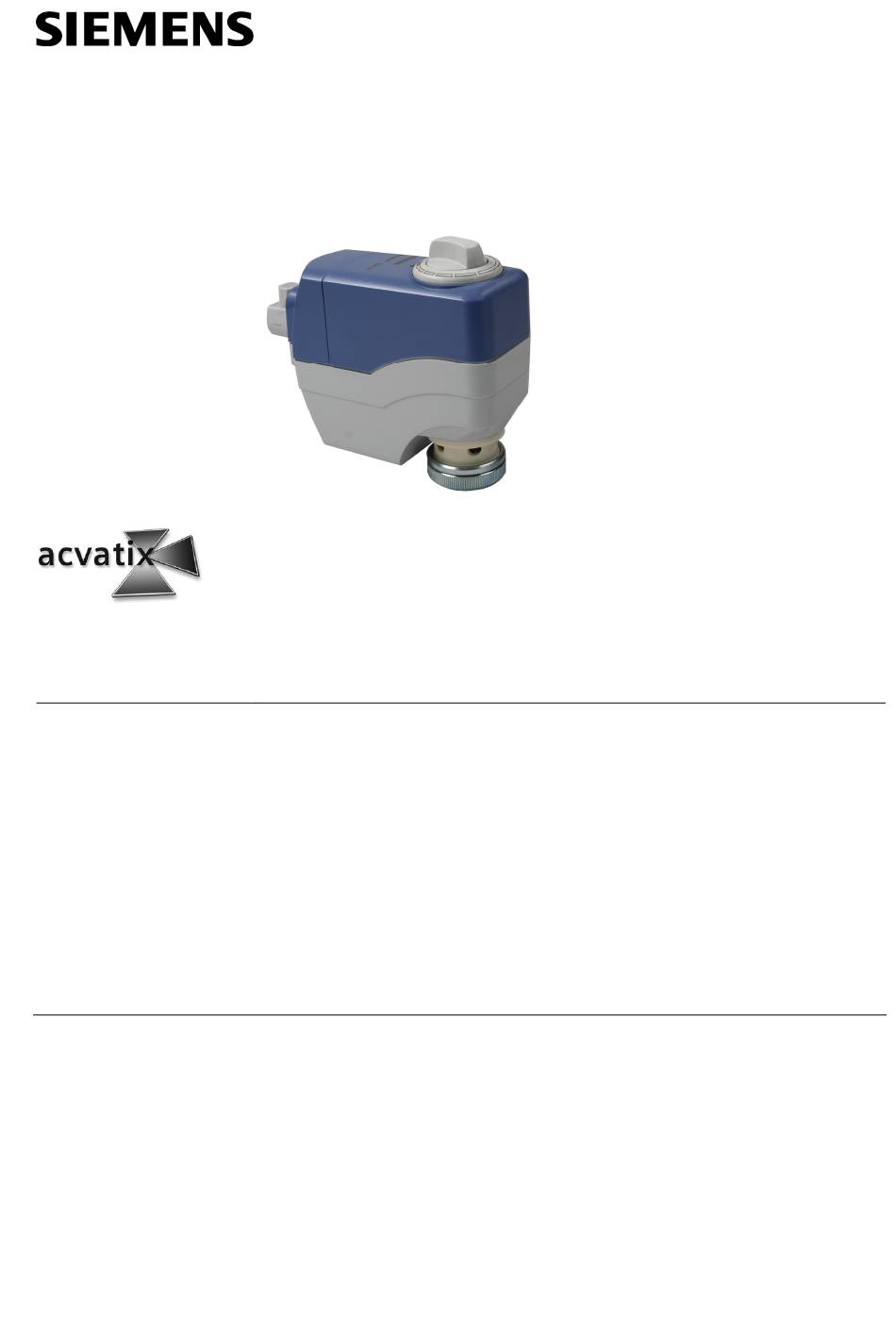

Electromotoric actuators
for valves VVP45.., VXP45.., VMP45..
· SSC31
operating voltage AC 230 V
· SSC81
operating voltage AC 24 V
· SSC61
operating voltage AC / DC 24 V
· SSC61.5
same as SSC61, plus electrical fail-safe function
· Nominal force 300 N
· Automatic identification of valve stroke
· Direct mounting with coupling nut, no tools required
· Cable connection via screw terminals
· Manual override with indication of position and direction of travel
· Parallel connection of multiple actuators
For operation of Siemens valves of the V..P45.. range
cooling water in heating, ventilation and air conditioning systems .
In conjunction with the ASK30 mounting kit, the former Landis & Gyr valves VVG45..,
VXG45.. and X3i.. can also be operated.
4
SSC31
SSC81
SSC61..
3-position control signal
3-position control signal
DC 0...10 V control signal
for water-side control of hot and
Smart Infrastructure
895
