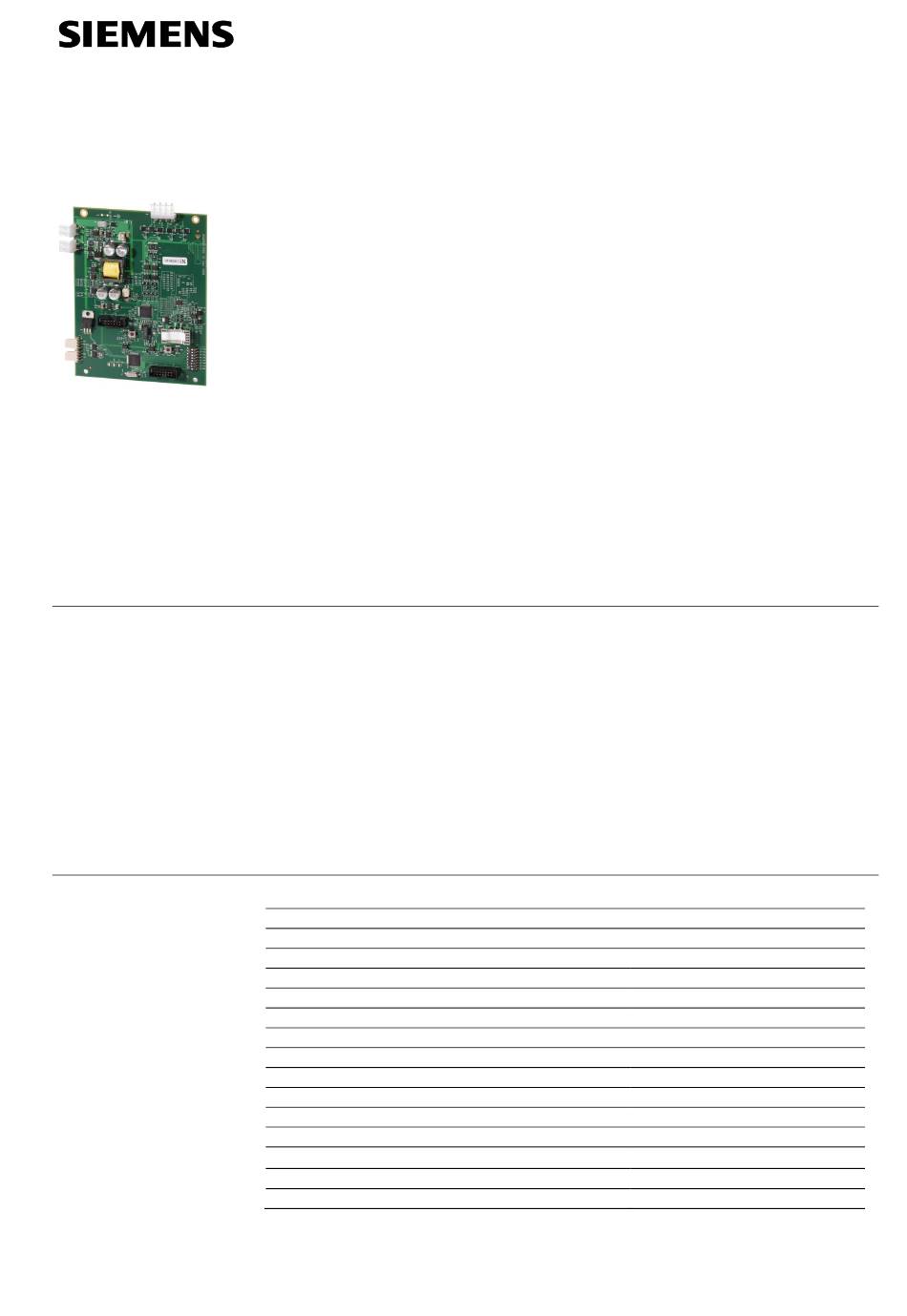

Siemens FCI1802-A2 Product Manual

FCI1802-A2
FC186x Line Card
Product Manual
Characteristics
Technical Data
-
FCI1802-A2 line card is specially designed for FC18 series controllers. It can be
automatically identified by controller. It is used for connection with FD181series
field devices.
-
A FCI1802-A2 line card contains one line, and each line can connect 252 points.
-
2-wire polarity-free of detection bus，stub wring is available and free branch is ac-
ceptable.
-
Overload protection is available.
-
In case of a short circuit line protection is activated automatically. When trouble is
resolved, line card can recover normal automatically.
Max. No. of line for each card
Max. No. of field devices for each line
Max. No. of load factor for each line
Wire type for FD18-BUS
Max. distance of loop
Max. distance of stub
Line impedance
Line capacitive reactance
Auto protection in case of short circuit (isolation) available
Line operating voltage
Quiescent current
Max. current
Operating temperature
Storage temperature
Humidity
Size
1
252
252
Recommend RVS1.0~RVS1.5
2500m
1500m
≤60Ω(mongline)
≤ 500nF
24VDC
30mA
1.5A
0 ~ +50℃
-20 ~ +60℃
≤95% (40±2℃)
155*120mm
