GE Spacemaker Installation Instructions page 2

INSTALLATION INSTRUCTIONS:
continued
Step 18
Replace access panel and toekick

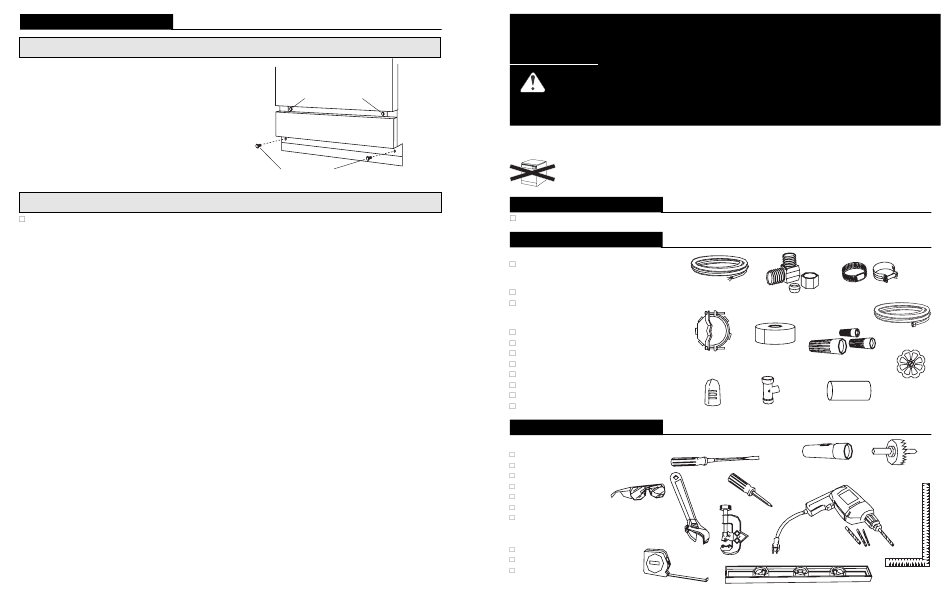

Refer to Figure V. Place the toekick against the legs of the
dishwasher. Align the access panel to the dishwasher and
tighten the two access panel screws. Align the toekick and
make sure the bottom edge is against the floor. Insert and
tighten the two toekick attachment screws, making sure the
bottom edge of the toekick stays in contact with the floor.
Step 19
Literature
Be sure to leave complete literature package and installa-
tion instructions with consumer.
Pub. No. 31-30524
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
Tighten 2
Access Panel Screws
Acc ess Pan el
T oe ki ck
Attachment Screws
Figure V
DWG. NO. 206C1559P064
(N.D. 679) 8/00
Installation instructions
for your new
CAUTION:
• Before you begin—Read these instructions completely and carefully.
• IMPORTANT–Save these instructions for local inspector's use.
• IMPORTANT–OBSERVE ALL GOVERNING CODES AND ORDINANCES.
• Note to Installer–Be sure to leave these instructions with the Consumer.
• Note to Consumer–Keep these instructions with your Owners Manual for future reference.
If you have a question concerning the installation of this
®
product, call the GE Answer Center Consumer Information
Service at 800.626.2000, 24 hours a day, 7 days a week.
If you received a damaged dishwasher,
you should immediately contact your
dealer or builder.
PARTS SUPPLIED FOR INSTALLATION:
Two Phillips head countertop mounting screws taped to dishwasher
MATERIALS YOU WILL NEED:
Materials required:
90° elbow
(3/8" NPT external thread on one end and
opposite end sized to fit water supply)
Thread seal tape
UL Listed Wire nuts (3)
For new installations only:
Air gap for drain hose, if required
Waste tee for house plumbing, if applicable
Electrical cable or power cord, if applicable
Screw type hose clamps
Strain relief for electrical connection
Hand shut-off valve (recommended)
Water line 3/8" min. copper or 1/2" min. plastic
Coupler for extending drain line, if applicable
TOOLS YOU WILL NEED:
Tools required:
Flat Blade Screwdriver
Phillips head and flat blade screwdrivers
Adjustable wrench (6")
Level
Carpenters square
Measuring tape
Safety Glasses
Safety glasses
Flashlight
Adjustable
For new installations only:
Wrench
Tubing cutter
Drill and appropriate bits
Hole saw set
Measuring Tape
Spacemaker™
Dishwasher
Installation of this dishwasher requires basic mechanical and
electrical skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation is not
covered under the GE Appliance Warranty. See the back cover
of the Owners Manual for warranty information.
The dishwasher MUST be installed to allow for future removal
from the enclosure if service is required.
Electrical Cable
Screw Type Clamps
or Power Cord
90° Elbow
Thread Seal
Strain Relief
Tape
Wire Nuts
Air
Waste
Gap
Tee
Coupler
Flashlight
Phillips Head
Screwdriver
Tubing
Drill
Cutter
and Bits
Level
Hot Water Line
Shut-Off
Valve
Hole
Saw Set
Square
