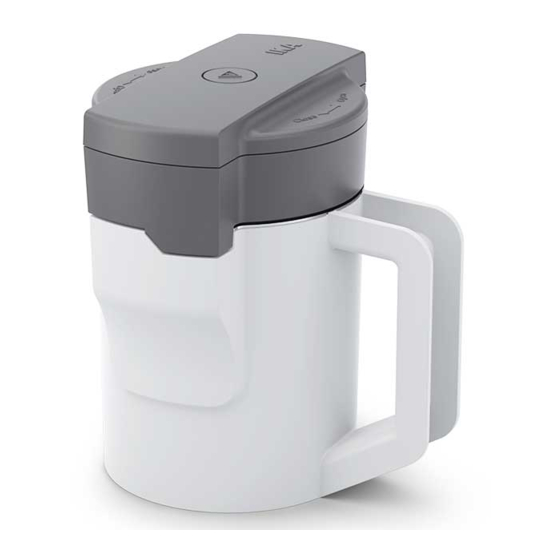

- Page 1 IKA MultiDrive MI 250 IKA MultiDrive MI 400 IKA MultiDrive MI 250 T IKA MultiDrive MI 400 T...
- Page 2 ENGLISH...
-
Page 3: Table Of Contents
Explication of warning symbols ������������������������������������������������������������������� 6 Safety instructions ��������������������������������������������������������������������������������������� 7 Unpacking �������������������������������������������������������������������������������������������������� 8 Useful information �������������������������������������������������������������������������������������� 9 Installation ������������������������������������������������������������������������������������������������ 12 Maintenance and cleaning ������������������������������������������������������������������������ 18 Fig. 1 Accessories ����������������������������������������������������������������������������������������������� 24 Warranty �������������������������������������������������������������������������������������������������� 24 Technical Data ������������������������������������������������������������������������������������������ 25... -
Page 4: Explication Of Warning Symbols
Source language: German Explication of warning symbols Safety instructions /// Warning symbols /// General information Danger! Indicates an (extremely) hazardous situation, which, if not avoided, will › Read the operating instructions completely before starting up and follow the safety result in death, serious injury� instructions. -
Page 5: Unpacking
Notice! Note: MultiDrive MI 250 T / MI 400 T has integrated temperature / RFID sensor� When used › The vessel must always be closed during operation� Switch off the drive unit immediately if in combination with the MultiDrive control, it can be used to measure and limit the sample any material leaks from the vessel�... - Page 6 MultiDrive MI 250 T / MI 400 T milling vessel can be used for grinding material with hardness If more refrigeration is required, the ground material should be cooled prior to being put into up to 5 Mohs�...
-
Page 7: Installation
Installation /// Attaching the vessel to the drive unit /// Closing the vessel Click Click Click Click /// Filling the vessel /// Switching on the drive unit green Notice! Pay attention to the maximum filling level! Note: After the cap has been securely closed, the color of the LED signal lamp changes from red to green�... - Page 8 /// Connecting the cooling circuit When cooling the vessel with tap water, proceed as following: Click Note: during the filling process, turn the vessel upside down� After water comes out of the outlet hose, the system is filled� Then, turn back and install the vessel to the drive unit for operation�...
- Page 9 Slowly increase the water pressure to prevent the hoses from slipping� IKA recommends to use a pressure regulating valve for safely limit the pressure to 1 bar� After cooling, close the water valve firstly� Then, disconnect the hoses and the hose connec- tions�...
-
Page 10: Maintenance And Cleaning
/// Cleaning › Use only cleaning agents which have been approved by IKA to clean the vessel: These are: water (containing surfactant) and isopropyl alcohol� › Before using another than the recommended method for cleaning or decontamination, the user must ascertain with that this method does not destroy the device�... - Page 11 Caution! The edges of the grinding tool are sharp� Wear protective gloves for handling and please observe the safety instructions� To loosen the retaining nut of the grinding tool, turn the socket wrench in clockwise direction (left-hand thread)! For thoroughly cleaning, the bearing carrier can be disassembled and cleaned the inside with the cleaning brush or vacuum cleaner�...
- Page 12 /// Ordering spare parts When ordering spare parts, please indicate: › Vessel type� › Item and designation of the spare part, see: www.ika.com, spare parts diagram and spare parts list� /// Exchanging and replacing the grinding tool The grinding tool can be disassembled (see section “Cleaning“)�...
-
Page 13: Accessories
Temperature measurement ± 5 accuracy In accordance with IKA warranty conditions, the warranty period is 24 months� For claims under Milling chamber can be the warranty please contact your local dealer� You may also send the machine direct to our factory, cooled with water enclosing the delivery invoice and giving reasons for the claim�... - Page 14 VIETNAM IKA Vietnam Company Limited Phone: +84 28 38202142 eMail: sales�lab-vietnam@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
