8/31/2020

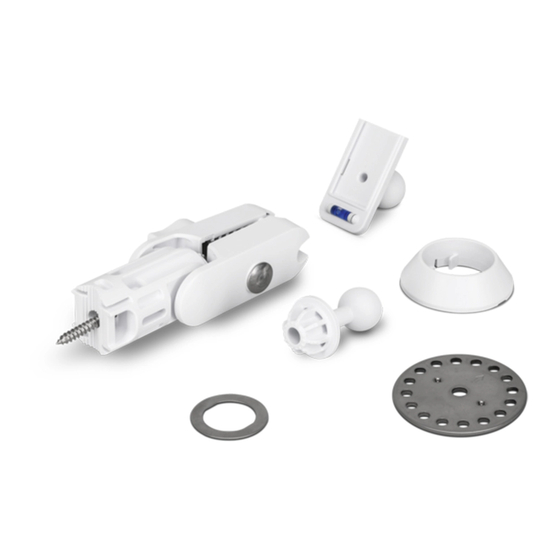

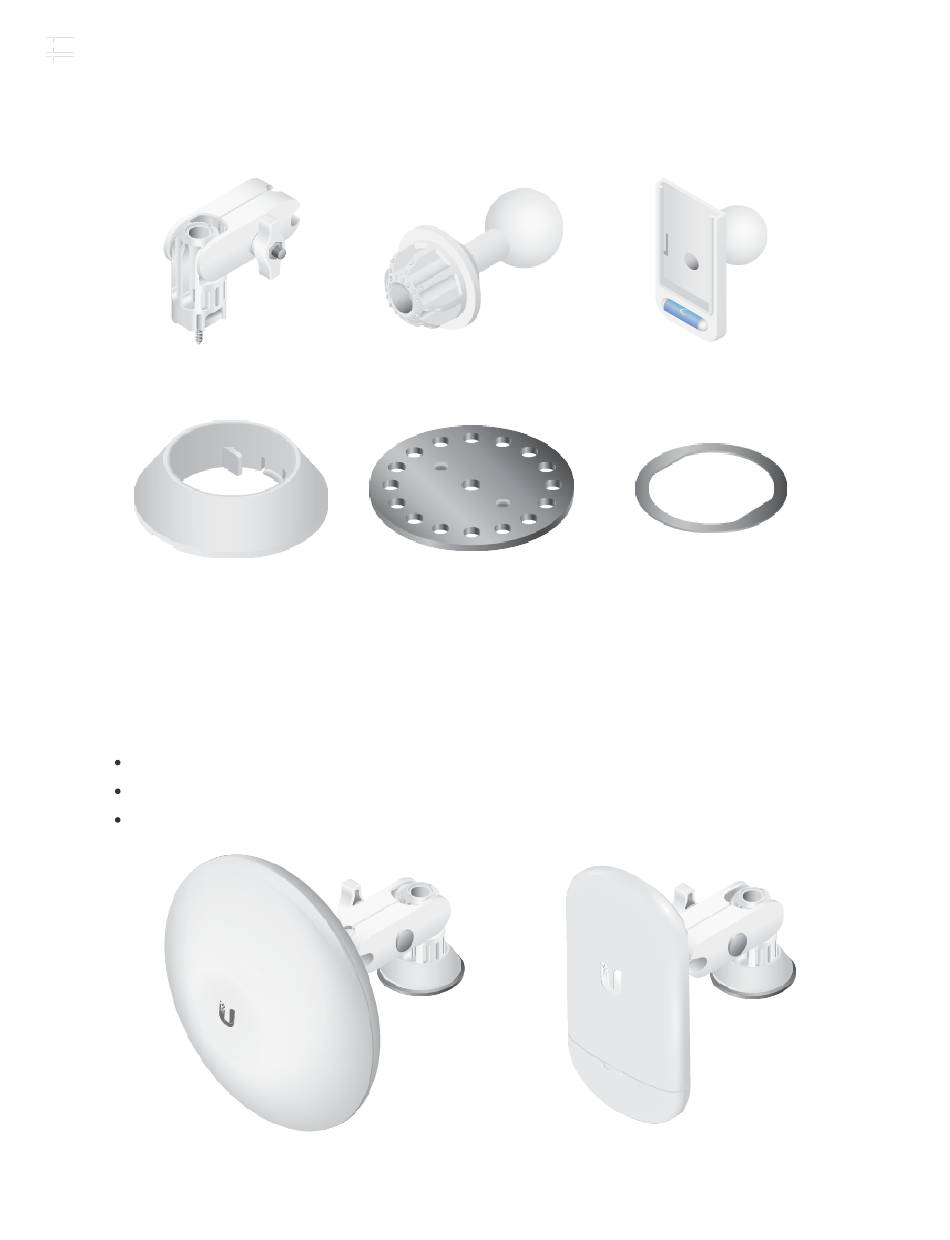

Package Contents
Mount Arm
Rotation Collar
Supported Products
The Quick Mount is compatible with the GigaBeam™, LTU™ Lite, NanoBeam®,
NanoStation®, NanoStationloco, and UniFi® Building-to-Building Bridge.
NBE-2AC-13, NBE-M5-16, UBB, or GBE using the Universal Ball Mount
NBE-5AC-Gen2 or NBE-M5-19 using the Universal Ball Mount and Metal Washer
loco5AC, NS-5AC, or LTU-Lite using the Ball Mount Assembly
Hardware Overview
dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html
Quick-Mount Quick Start Guide
Quick-Mount Quick Start Guide
Universal Ball Mount
Stacking Washer
Bracket Mount
Ball Mount Washer
1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Quick-Mount and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti Quick-Mount

Summary of Contents for Ubiquiti Quick-Mount

  • Page 1 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Package Contents Mount Arm Universal Ball Mount Bracket Mount Rotation Collar Stacking Washer Ball Mount Washer Supported Products The Quick Mount is compatible with the GigaBeam™, LTU™ Lite, NanoBeam®, NanoStation®, NanoStationloco, and UniFi® Building-to-Building Bridge.
  • Page 2 Stacking Washer Part of the Quick-Mount assembly that locks the Rotation Collar into place. Rotation Collar Part of the Quick-Mount assembly that stabilizes the base of the Mount Arm. Mount Arm Adjustable mount compatible with a variety of Ubiquiti CPE devices.
  • Page 3 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Used when installing the loco5AC, NS‑5AC, or LTU-Lite. Models NBE-2AC-13 NBE-M5-16 Components Note: The device’s Lock Ring will also be used. dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 3/14...
  • Page 4 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Models NBE-5AC-Gen2 NBE-M5-19 Components Note: The device’s Lock Ring will also be used. Models loco5AC NS-5AC dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 4/14...

  • Page 5: Installation

    8/31/2020 Quick-Mount Quick Start Guide LTU-Lite Quick-Mount Quick Start Guide Components Installation Before You Begin Insert the Mount Arm into the Rotation Collar and press until it is locked in. dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 5/14...
  • Page 6 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Note: The screw end should extend past the Rotation Collar for installation, as shown below. dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 6/14...
  • Page 7 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Optional dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 7/14...
  • Page 8 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 8/14...
  • Page 9 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 9/14...
  • Page 10 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Note: Add the Ball Mount Washer when installing the NBE-5AC-Gen2 or NBE-M5-19. dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 10/14...
  • Page 11 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 11/14...
  • Page 12 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 12/14...
  • Page 13 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide Specifications Quick-Mount Dimensions 104 x 122 x 81 mm (4.09 x 4.80 x 3.19") Weight 375 g (0.83 lb) Device Support Ball Mount Assembly loco5AC, NS-5AC, or LTU-Lite Universal Ball Mount...
  • Page 14 8/31/2020 Quick-Mount Quick Start Guide Quick-Mount Quick Start Guide © 2019-2020 Ubiquiti Inc. All rights reserved. dl-origin.ubnt.com/qsg/Quick-Mount/Quick-Mount_EN.html 14/14...
