Rabbit RabbitCore RCM2000 Getting Started Manual page 14

2. Connect RCM2000 to PC
Connect the 10-pin connector of the programming cable labeled
RCM2000 module as shown in Figure 4 below. Be sure to orient the red edge of the cable
towards pin 1 of the connector. (Do not use the
serial connection.)
NOTE:
J1
J1
VCC
PA1
PA3
PA5
PA7
PB1
PB3
PB5
PB7
GND
D6
D4
D2
D0
PE6
PE4
PE2
PE0
/IOR
/WDO
J2

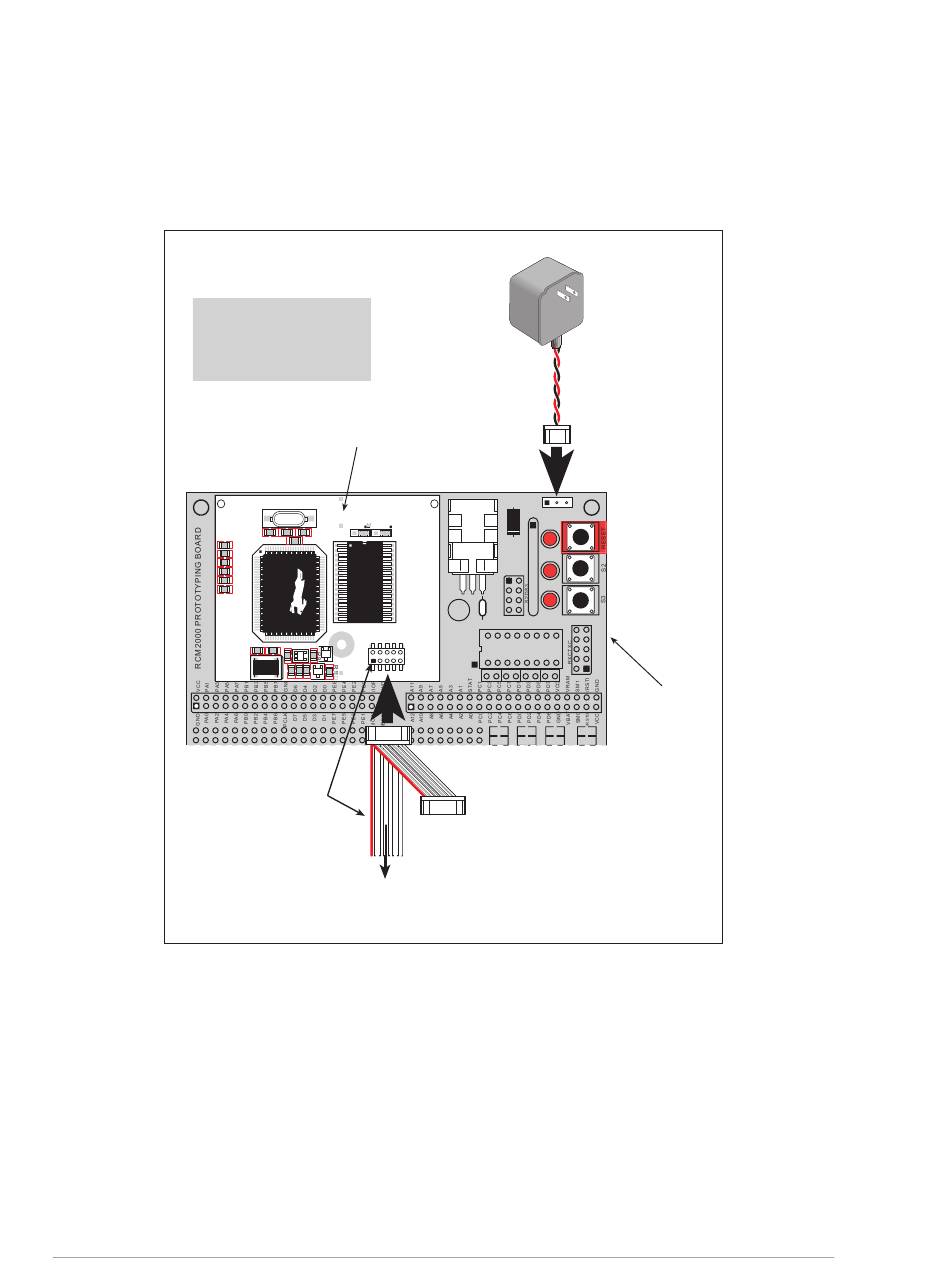

Figure 4. RCM2000 Power and Programming Connections
3. Power Supply Connections
Hook up the connector from the wall transformer to header J5 on the Prototyping Board as
shown above. The orientation of this connector is not important since the VIN (positive)
voltage is the middle pin, and GND is available on both ends of the three-pin header J5.
Plug in the wall transformer. The power LED on the Prototyping Board should light up.
The RCM2000 and the Prototyping Board are now ready to be used.
NOTE: A RESET button is provided on the Prototyping Board to allow a hardware reset.
