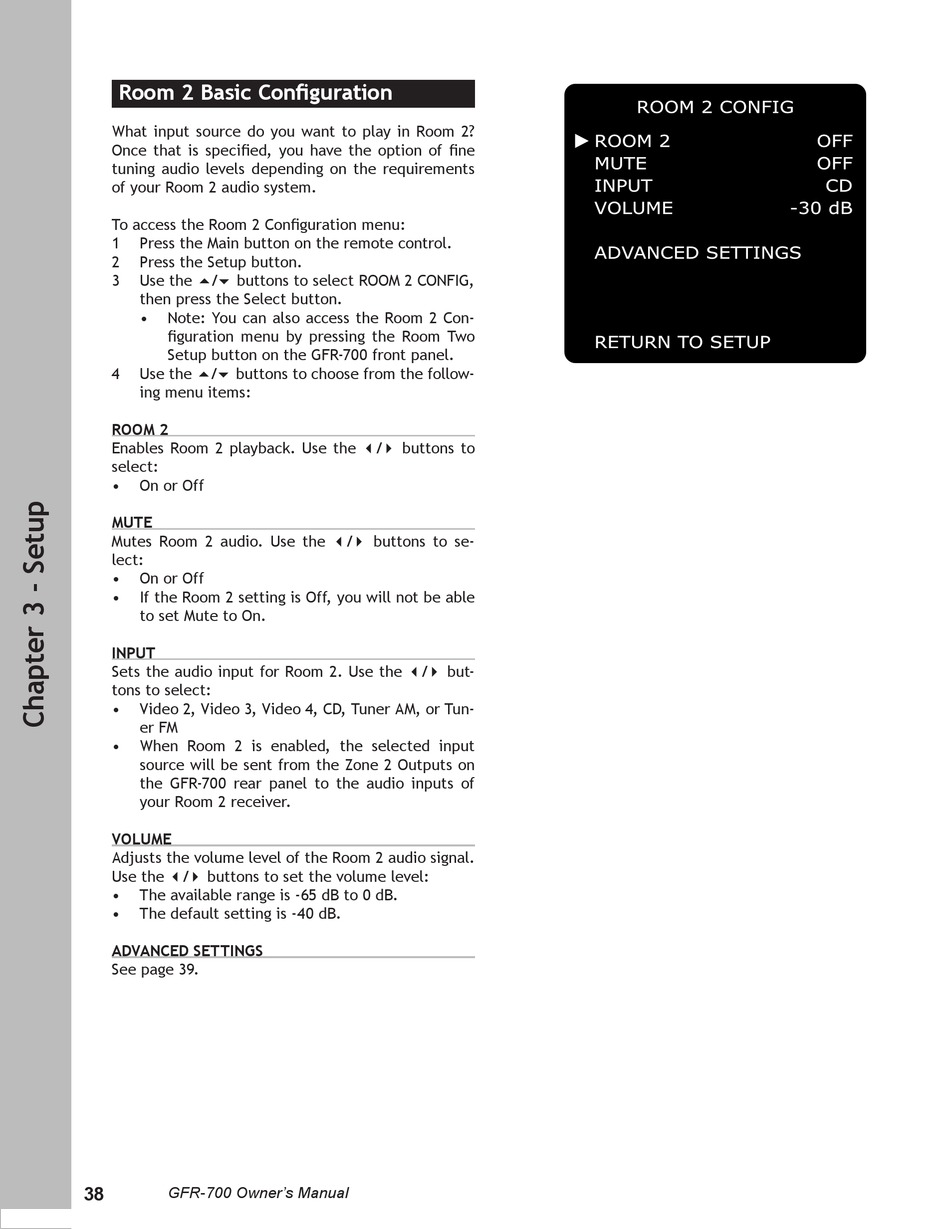

Room 2 Basic Configuration
What input source do you want to play in Room 2?
Once that is specified, you have the option of fine
tuning audio levels depending on the requirements
of your Room 2 audio system.
To access the Room 2 Configuration menu:
1 Press the Main button on the remote control.
2 Press the Setup button.
3 Use the / buttons to select ROOM 2 CONFIG,
then press the Select button.
• Note: You can also access the Room 2 Con-
figuration menu by pressing the Room Two
Setup button on the GFR-700 front panel.
4 Use the / buttons to choose from the follow-
ing menu items:
ROOM 2
Enables Room 2 playback. Use the / buttons to
select:
• On or Off
MUTE
Mutes Room 2 audio. Use the / buttons to se-
lect:
• On or Off
• If the Room 2 setting is Off, you will not be able
to set Mute to On.
INPUT
Sets the audio input for Room 2. Use the / but-
tons to select:
• Video 2, Video 3, Video 4, CD, Tuner AM, or Tun-
er FM
• When Room 2 is enabled, the selected input
source will be sent from the Zone 2 Outputs on
the GFR-700 rear panel to the audio inputs of
your Room 2 receiver.
VOLUME
Adjusts the volume level of the Room 2 audio signal.
Use the / buttons to set the volume level:
• The available range is -65 dB to 0 dB.
• The default setting is -40 dB.
ADVANCED SETTINGS
See page 39.
38 GFR-700 Owner's Manual
