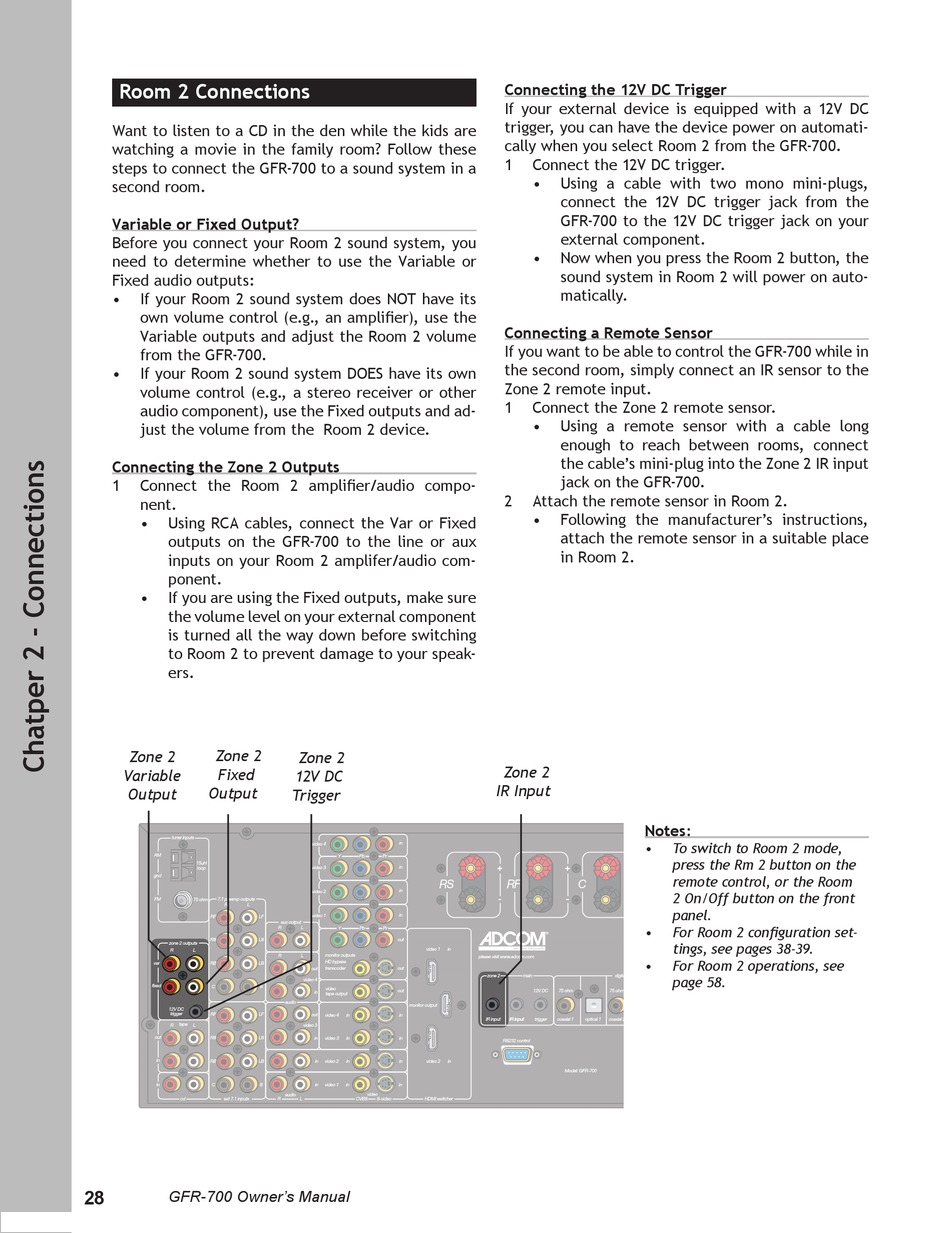

Room 2 Connections

Want to listen to a CD in the den while the kids are

watching a movie in the family room? Follow these

steps to connect the GFR-700 to a sound system in a

second room.

Variable or Fixed Output?

Before you connect your Room 2 sound system, you

need to determine whether to use the Variable or

Fixed audio outputs:

•

If your Room 2 sound system does NOT have its

own volume control (e.g., an ampliﬁer), use the

Variable outputs and adjust the Room 2 volume

from the GFR-700.

•

If your Room 2 sound system DOES have its own

volume control (e.g., a stereo receiver or other

audio component), use the Fixed outputs and ad-

just the volume from the Room 2 device.

Connecting the Zone 2 Outputs

Connect the Room 2 ampliﬁer/audio compo-

nent.

•

Using RCA cables, connect the Var or Fixed

outputs on the GFR-700 to the line or aux

inputs on your Room 2 amplifer/audio com-

ponent.

•

If you are using the Fixed outputs, make sure

the volume level on your external component

is turned all the way down before switching

to Room 2 to prevent damage to your speak-

ers.

Zone 2

Fixed

Variable

Output

��

�

��

�

��

�

��

�

��

�

��

GFR-700 Owner's Manual

Zone 2

12V DC

Trigger

��

�

��

�

��

�

��

�

��

Connecting the 12V DC Trigger

If your external device is equipped with a 12V DC

trigger, you can have the device power on automati-

cally when you select Room 2 from the GFR-700.

Connect the 12V DC trigger.

•

Using a cable with two mono mini-plugs,

connect the 12V DC trigger jack from the

GFR-700 to the 12V DC trigger jack on your

external component.

•

Now when you press the Room 2 button, the

sound system in Room 2 will power on auto-

matically.

Connecting a Remote Sensor

If you want to be able to control the GFR-700 while in

the second room, simply connect an IR sensor to the

Zone 2 remote input.

Connect the Zone 2 remote sensor.

•

Using a remote sensor with a cable long

enough to reach between rooms, connect

the cable's mini-plug into the Zone 2 IR input

jack on the GFR-700.

Attach the remote sensor in Room 2.

•

Following the manufacturer's instructions,

attach the remote sensor in a suitable place

in Room 2.

Zone 2

IR Input

Notes:

•

��

�

��

•

��

•

��

To switch to Room 2 mode,

press the Rm 2 button on the

remote control, or the Room

��

2 On/Off button on the front

panel.

For Room 2 conﬁguration set-

tings, see pages 38-39.

For Room 2 operations, see

page 58.

��
