Pump Parts - Whirlpool GI15NDXTB1 Parts List

Whirlpool ice cube maker parts list
Hide thumbs

Advertisement

W10165835

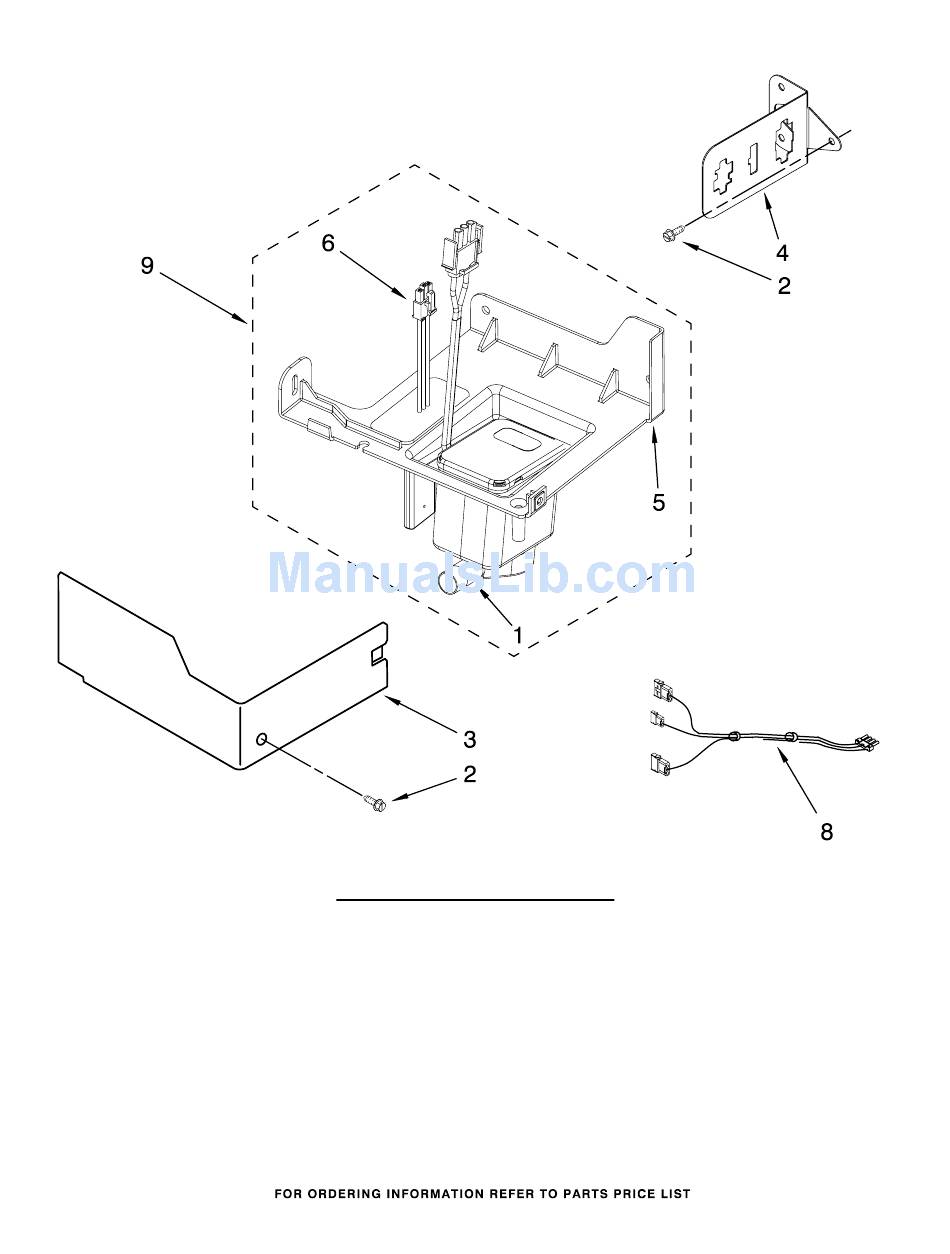

PUMP PARTS

For Models: GI15NDXTQ1, GI15NDXTB1,GI15NDXTS1
(White)
Illus.
Part
No.
No.
1
2313628 Pump−Recirculating
2
3400884 Screw 8−18 x 5/8
3
2185677 Cover, Pump
4
2313844 Bracket, Connector
Assembly
5
2313627 Bracket−Pump
6
2313643 Sensor−Water Level
8
2310092 Wiring Harness
Main To Pump
9
2313702 Pump Assembly
(Black) (Stainless Steel)
