for Ice Maker Trim Kit – Full Door Models Only
NOTE: Customer must supply #6 flat head wood screws
to mount wood panel of customers choice.
Follow the steps below:
1. Remove old door handle.
2. Remove nameplate. Nameplate is held in place with
adhesive tape.

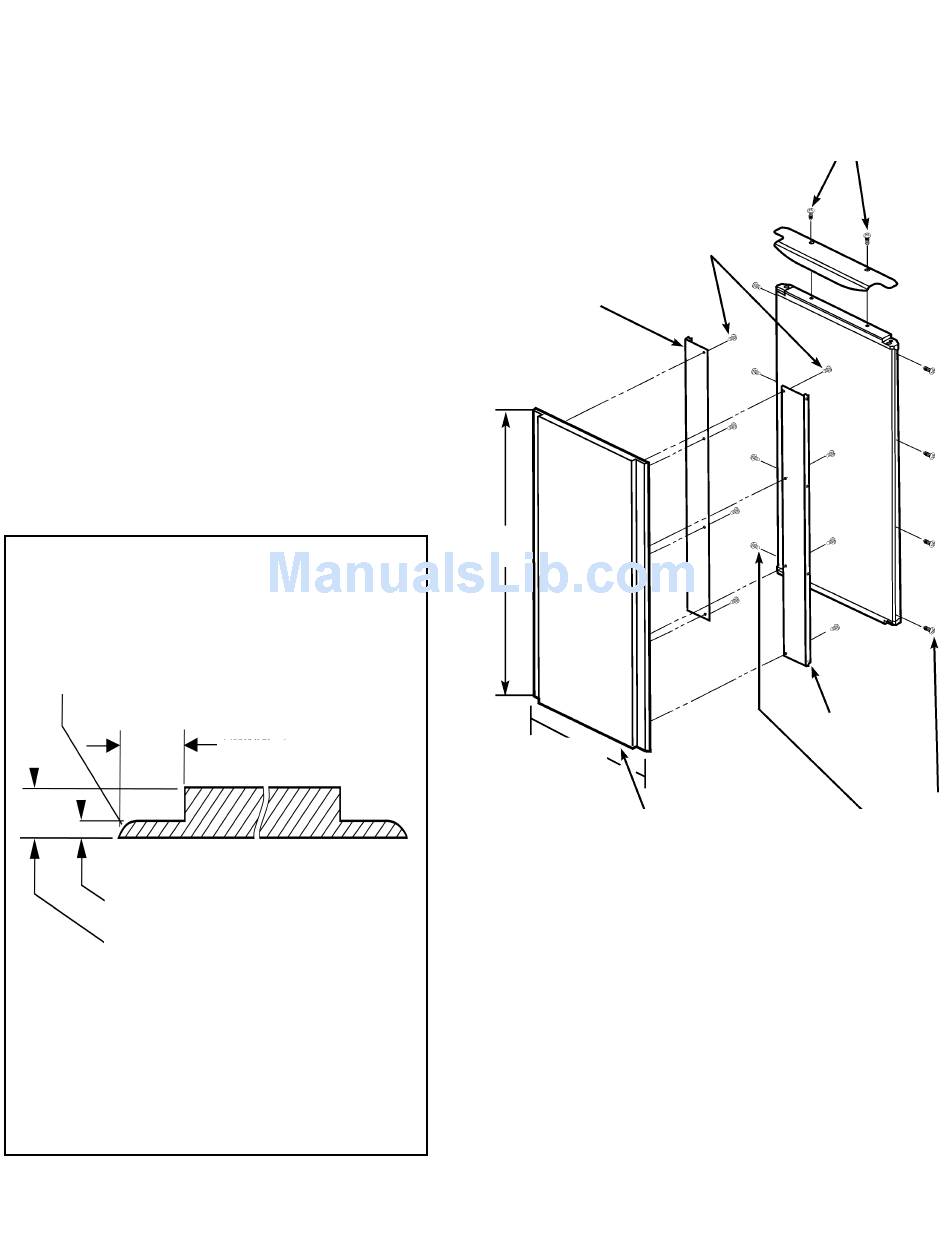

3. Install trim to wood panel of customers choice. See
illustration. Recommend using eight (8) #6 flat head
wood screws approximately
supplied by customer. Please check length before
installation.
4. Lay customer panel and trim on door and mark the
holes using the trim as your template.
5. Using an
1
" drill bit, drill eight (8) holes on the side
8
of door as shown. See illustration.
6. Install panel and trim with eight (8) screws supplied
in the kit.
7. Install new door handle supplied using the old
mounting screws.
Custom Panel Dimensions:
NOTE: Customer Panel shown must be
thick and requires the following changes for
clearance. These changes must be made on
both sides of the panel as shown.
Route Approximately
3
1
" (.635 cm)
4
3
" (1.905 cm) Thick Panel
4
Cutting Notes:
1. Match woodgrain direction with that of adjacent
cabinets.
2. Cut panel to dimensions as shown in illustration.
3. Sand panel edges to provide smooth finish.
4. Important: Use moisture resistant sealer on
both sides and all edges of panel for moisture
protection.
© 1999
(All Rights Reserved)
INSTRUCTION SHEET
1
" in length. Screws
2
3
" (1.9 cm)
4
" (1.0 cm)
8
1
15
" (3.73 cm)
32
#6 Flat head wood
screw
(supplied by customer)
Trim
29
31
"
64
(74.9 cm)
14
33
"
64
(36.9 cm)
Customer
supplied panel.
Recommend
3
" (1.9 cm)
4
thick wood panel
Door handle
mounting screws
1
" long (8)
2
Trim
Instruction Sheet 2185921 Rev. A 7/99
Screw,
3
#8-18 x
" (8)
8
