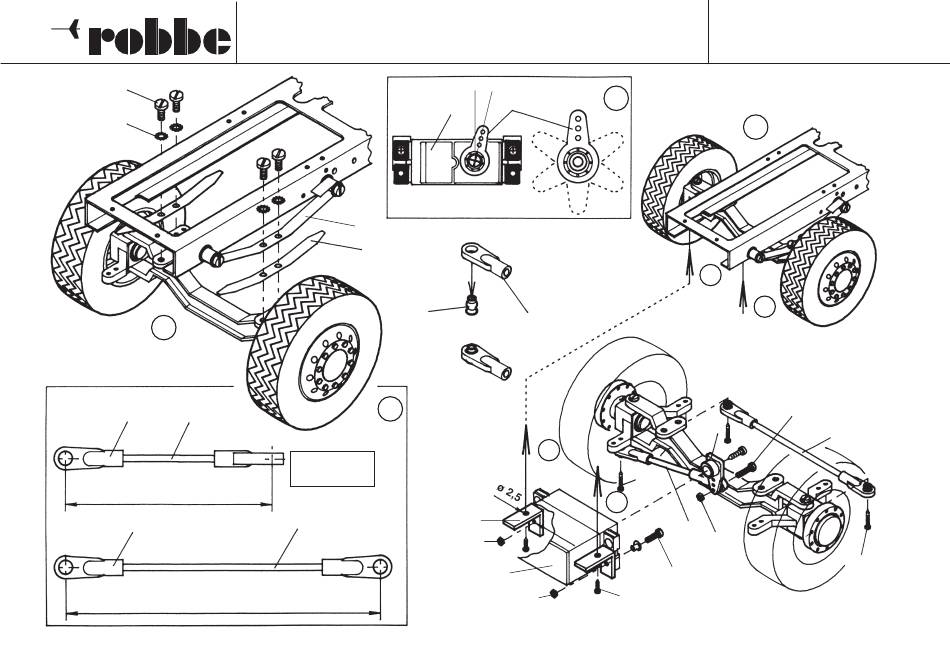

Baustufe 2
MAN F2000 Evolution
ca. 15°
2.16
2.20
2d
2.19
2.17
2f
1.2
2.15
A
A
2.24
2.23
2c
2.28
2.23 2.26
2e
2.20
2.25
A
MAßSTAB
1:1
SCALE
ÉCHELLE 2.27
65 mm
A
2.25
2.18
2.23
2.26
2.22
2.22
2.27
2.19
2.21
2.29
2.22
99,5 mm
