Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.

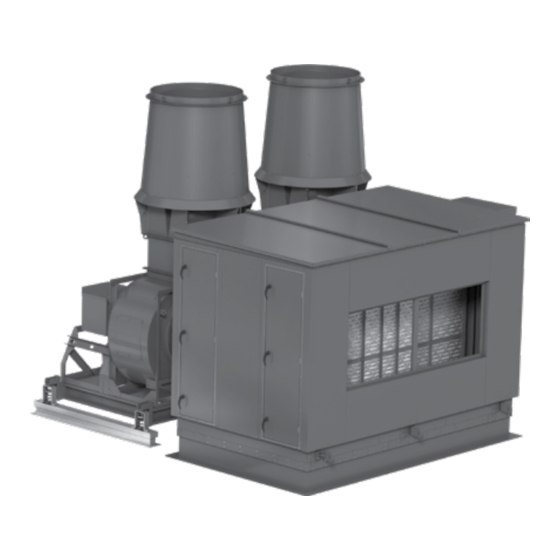

Vektor-M Compact ERS
Greenheck model ERS is a pre-engineered energy
recovery system designed to connect directly to a
Vektor-M series blower(s) with bypass air plenum or
Vektor-C series blower(s). This installation manual
covers procedures for receiving, installing and
maintaining the energy recovery coil section.
For additional instruction and maintenance information
on the Vektor-M series blowers, visit www.greenheck.
com and download the Vektor-MH, Vektor-MD and
Vektor-MS instruction manual, document number
464652. For additional instruction and maintenance
information on the Vektor-C series blowers, visit www.
greenheck.com and download the Vektor-CH, Vektor-
CD and Vektor-CS instruction manual, document
number 471555.
®
Vektor-M Standard ERS
Always disconnect, lock and tag power source before
installing or servicing. Failure to disconnect power
source can result in fire, shock or serious injury.
When servicing the fan, motor may be hot enough
to cause pain or injury. Allow motor to cool before
servicing.
Precaution should be taken in explosive atmospheres.
Pour écarter les risques d'incendie, de choc électrique
ou de blessure grave, veiller à toujours débrancher,
verrouiller et étiqueter la source de courant avant
l'installation ou l'entretien.
Lors de toute intervention sur la soufflante, le moteur
peut être suffisamment chaud pour provoquer une
douleur voire une blessure. Laisser le moteur refroidir
avant toute maintenance.
Faire preuve de précaution dans les atmosphères
explosives.
Energy Recovery System (ERS)
DANGER
CAUTION
CAUTION
DANGER
ATTENTION
ATTENTION
Vektor-ERS Energy Recovery Plenum Laboratory Exhaust
Document 474118
Laboratory Exhaust
Vektor-C ERS
1
Advertisement
Table of Contents
Related Manuals for Greenheck Vektor-M Compact ERS
Summary of Contents for Greenheck Vektor-M Compact ERS
- Page 1 Vektor-C ERS Vektor-M Compact ERS Vektor-M Standard ERS Greenheck model ERS is a pre-engineered energy DANGER recovery system designed to connect directly to a Always disconnect, lock and tag power source before Vektor-M series blower(s) with bypass air plenum or installing or servicing.
-
Page 2: General Safety Information
The transportation carrier has the responsibility of delivering all items in their original condition as received from Greenheck. The warranty period begins at the time of shipment. Upon receiving the product, check to make sure all items are accounted for by referencing the bill of lading to ensure all items were received. The individual receiving the equipment is responsible for inspecting the unit for obvious or hidden damage and recording any damage on the bill of lading before acceptance of the equipment. -
Page 3: General Information
The tag shown is an example of an identification label on the fan. The information provides general details about the fan, as well as containing specific information unique to the unit. When contacting your Greenheck representative with future needs or questions, please have the information on this label available. -
Page 4: Rigging And Lifting
(BAP) are to be rigged and moved by ERS Plenum Housing the lifting brackets provided. Fan Bypass Air Plenum Vektor-M Compact ERS Lift Points plenum sizes 5, 8 and 15 ship Lifting Bracket (removable after with the coil section installation) attached to the fan BAP. - Page 5 Plenum Service and Access Locations Used on page 5 of Part #474118 - need to copy, and edit this same drawing for use on backcover of same Instruction. • Sizes 20, 25, 30, 35, 40, 60 Standard M series and C series ERS plenum Side or Bottom Intake Opening cabinets require minimum clearances for access Lift...
- Page 6 See coatings repair section of this manual for details involving touch-up of damaged surfaces. Mounting the BAP to roof curbs from manufacturers other than Greenheck or not following proper mounting instructions may impact fan performance and void warranty.
- Page 7 Assembly and Installation (Vektor-M Standard) (continued) 2. Cut roof opening for bottom intake Layout the unit roof openings such that exhaust inlet of the unit will line up with the corresponding ductwork; refer to Plenum Bottom Inlet Openings on page 10. Do not make opening larger than necessary. Be sure to allow for the recommended service clearances.
- Page 8 Assembly and Installation (Vektor-M Standard) (continued) Inside the ERS plenum are slots along the marrying sections which accept the bolt and washer assemblies. Using the hardware kit, attach the unit sections by bolting together frame extrusion from the inside. Tighten the bolt-washer assemblies to the top and both sides of the joining sections.
- Page 9 Assembly and Installation (Vektor-C) (continued) Drawing 1c shows two end panels and single Drawing 1c center section. All sections and configurations are assembled in a similar manor. End Section Gasket to be placed on top edge after assembly Center Section End Section Gasket to be placed along inside edge prior to assembly...
-
Page 10: Duct Connections
Duct Connections Plenum Bottom Inlet Opening Installation of all ducts should be done in accordance with SMACNA and AMCA guidelines. • Vektor-M series Connect primary exhaust air ducts to unit using flanged Length connections. Screw ducts directly to unit using stainless steel self-tapping sheet metal screws. -
Page 11: Drain Trap
L = H + J + Pipe diameter Field Coating Touch-Up for Scratched Areas Standard coating and color for the Vektor laboratory exhaust system is Greenheck’s LabCoat™, RAL7023 Concrete Grey. Failure to perform touch-ups may result in rust or corrosion and accelerate the fade in color and is not covered under warranty. - Page 12 Coils (All Sizes) Installation of Water Coil Piping Guidelines for the installation of the coil have been provided to ensure proper performance of the coils and their longevity. These are general guidelines that may have to be tailored to meet the specific requirements of any one job.
-
Page 13: Vapor Tight Lights
NOTE Vent and drain connections are provided on Greenheck water coils unless otherwise specified. This allows the coils to be drained. Keep in mind that when draining the coils, all water may not drain from the coil. In order to completely drain the coil to prevent the possibility of freezing during cold ambient temperatures, air or nitrogen pressure must be utilized to blow any remaining water from the coil. -
Page 14: Routine Maintenance
Routine Maintenance Once the unit has been put into operation, a routine CAUTION maintenance program should be set up to preserve Use caution when removing access panels or other reliability and performance. Items to be included in this unit components, especially while standing on a program are: ladder or other potentially unsteady base. - Page 15 All filter sections have access provided by a door. Filters used in Vektor bypass under 24x24 air plenum Vektor fans Greenheck ERS plenums can be changed in most cases by sliding optional mounting 24x24 locations shown them out and replacing. In some cases, filters are secured to 60 (075, 090) 24x18 frames using a clip.
-
Page 16: Maintenance Log
As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Product warranties can be found online at Greenheck.com, either on the specific product page or in the literature section of the website at Greenheck.com/Resources/Library/Literature.
