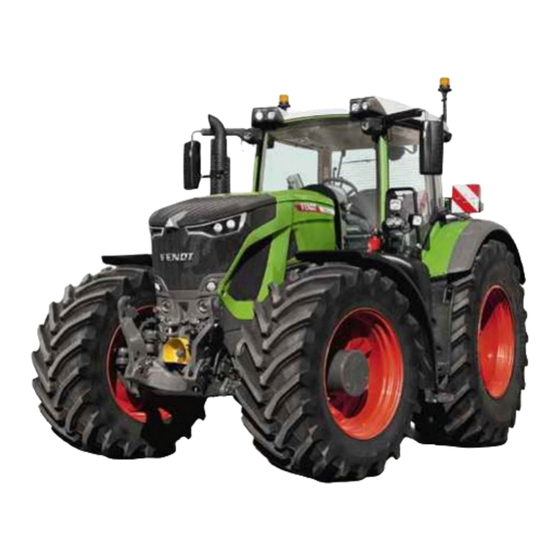

FENDT 900 Vario Gen6 Series Workshop Service Manual
  1. Manuals
  2. Brands
  3. FENDT Manuals
  4. Tractor
  5. 900 Vario Gen6 Series
  6. Workshop service manual

FENDT 900 Vario Gen6 Series Workshop Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Workshop Service Manual
FENDT 900 Vario Gen6
FENDT 930 Vario Gen6
FENDT 933 Vario Gen6
FENDT 936 Vario Gen6
FENDT 939 Vario Gen6
FENDT 942 Vario Gen6
Marktoberdorf
AGCO GmbH - Johann-Georg-Fendt-Str. 4 - D-87616 Marktoberdorf
FENDT is a worldwide brand of AGCO
© AGCO 2019
May 2019
X990005734011
5377
EAME
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 Vario Gen6 Series and is the answer not in the manual?

Questions and answers

Related Manuals for FENDT 900 Vario Gen6 Series

Summary of Contents for FENDT 900 Vario Gen6 Series

  • Page 1 FENDT 933 Vario Gen6 FENDT 936 Vario Gen6 FENDT 939 Vario Gen6 FENDT 942 Vario Gen6 Marktoberdorf May 2019 AGCO GmbH - Johann-Georg-Fendt-Str. 4 - D-87616 Marktoberdorf X990005734011 FENDT is a worldwide brand of AGCO 5377 © AGCO 2019 EAME...
  • Page 2 This document is valid from the chassis number noted. The last valid chassis number could not be determined at the time of creation. Use AGCONET or contact FENDT Technical Service to ascertain whether a current wiring diagram set is available with an updated chassis number range.
  • Page 3 TABLE OF CONTENT Entire vehicle system Engine, fuel and exhaust system Steering system Drive train Compressed-air system Hydraulic system Electrical system Air-conditioning system and heating Chassis and body Wheels Front power lift Rear power lift Service Glossary Index Find manuals at https://best-manuals.com...

  • Page 4: Table Of Contents

    ........... . 1-8 1.2.1 Assignment table FENDT T types to the EU Type Approval Number ....1-8 1.2.2 Meaning of the vehicle identification number .
  • Page 5 Calibration fault code 8001 ......... . . 1-429 FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...
  • Page 6 Fault code 20.1.00 ..........1-573 FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...
  • Page 7 Table of contents FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...

  • Page 8: Safety Instructions

    • Always exercise caution when working with brake fluid and battery acid. These substances are toxic and corrosive. • Only FENDT original spare parts must be used. FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...
  • Page 9 2. Secure the tractor to prevent it from rolling away. 3. Press the foot brake at least ten times GUID-2347D0BC-3E24-4869-A351-4AC21CDB351B-high.jpg [High] Fig. 2 General notes: • The function of the brakes must be checked before each journey! FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...
  • Page 10 Details about disposal and monitoring are specified in regional, national and international laws and directives, the observation of which is the sole responsibility of the repairing workshops. FENDT 900 Vario Gen6 X990005734011 Find manuals at https://best-manuals.com...

  • Page 11: General Information

    1. 00-000 Entire vehicle system 1.2 General information GUID-2D59C426-3B70-4D1B-A04F-E87356E798D1 [V3] 1.2.1 Assignment table FENDT T types to the EU Type Approval Number The EU type approval number consists of the lower case letter "e" followed by the code letter or number of the member state granting the EU type approval.

  • Page 12: Note On Hydraulics

    Special tools must only be used where absolutely necessary and mentioned where they need to be used in each case. The machine must be maintained according to its proper use. Always replace parts with genuine FENDT spare parts! When ordering parts, please provide the chassis number as per the most up-to-date spare parts documentation.

  • Page 13: Techconnect

    In the left-hand panel, click on "Technical Service" again (2) and then on "Tech Connect" (3). A message will appear concerning the use of Tech Connect. Agree to the message (4). The "Start Tech Connect" command appears. Click on the command (see arrow). GUID-1B6AFF75-D7D7-4743-9364-D41D926A9252-high.jpg [High] Fig. 6 1-10 FENDT 900 Vario Gen6 X990005734011...

  • Page 14: Overview Of The Start Page In Tech Connect

    3. Middle section of the page for support requests 4. Right section of the page for PDIs and links 5. Footer for information about data protection, disclaimers, etc. Left-hand header Open/close menu To the start page GUID-CD39DB5A-B948-4F42-A4AF-0288E9BBE81A-high.jpg [High] Fig. 8 FENDT 900 Vario Gen6 1-11 X990005734011...
  • Page 15 Fig. 9 Left section: services Create and manage PDIs Help center: create and manage support requests Information objects (KO) Operator's Manuals Workshop Service Manuals Link to AGCO Parts Book parts catalogue GUID-0671164F-1947-4C4E-921F-661928FC2881-high.jpg [High] Fig. 10 1-12 FENDT 900 Vario Gen6 X990005734011...

  • Page 16: Find Knowledge Objects In Tech Connect

    Information objects, also called knowledge objects (KO), provide assistance with current problems. They are denoted by "KO" followed by a sequential number. You can search either directly using the KO number or using information relevant to certain vehicles. FENDT 900 Vario Gen6 1-13 X990005734011...
  • Page 17 In the left-hand section of the home page, click on "Information Objects (KO)" (3). GUID-0671164F-1947-4C4E-921F-661928FC2881-high.jpg [High] Fig. 13 There is a prompt to select a product filter. Include the following features: Brand Machine type Standard Model number 1-14 FENDT 900 Vario Gen6 X990005734011...
  • Page 18 You can filter out the items that are relevant to you by conducting a keyword search within the filtered knowledge objects. To do this, enter a search term under "Search Results" in the left-hand panel (see arrow) and click on "Search". FENDT 900 Vario Gen6 1-15 X990005734011...
  • Page 19 Once you have identified a relevant knowledge object, it can be opened by clicking on the title shown in red. If the mouse pointer is positioned directly over the title, it will change to a hand and the text colour will change to black. 1-16 FENDT 900 Vario Gen6 X990005734011...
  • Page 20 (4). IMPORTANT: If a filter has been set, for example in a previous search (see arrow), this will be taken into account in the second search. This may mean that no results are found. FENDT 900 Vario Gen6 1-17 X990005734011...

  • Page 21: Create Support Requests Via Tech Connect

    If the object was not helpful, click the thumbs down icon (2) and provide a reason for your complaint (3). If you click "Submit" (4), the information will be sent to FENDT Technical Service, where the object is revised. GUID-4FCE27BE-054D-44F7-A61C-AA3FD3A04300 [V1] 1.3.4 Create support requests via Tech Connect...
  • Page 22 If the serial number is not known, write any number into the cell and press Enter to confirm. The "Serial number is invalid or not available" switch appears (see arrow). Press the switch. GUID-9DA12C5C-175D-4391-924E-1CA67B016660-high.jpg [High] Fig. 24 FENDT 900 Vario Gen6 1-19 X990005734011...
  • Page 23 GUID-D46AB693-2337-4FB2-9A89-CEA77E7D0C75-high.jpg [High] Fig. 25 Enter as much of the remaining information as possible: Model Brand (mandatory field) Machine type Unit of measure Machine use The number of the part causing damage GUID-184AC65F-C254-4C00-8A6A-2F249F4A4194-high.jpg [High] Fig. 26 1-20 FENDT 900 Vario Gen6 X990005734011...
  • Page 24 Fig. 27 As soon as you select the main assembly, relevant information objects appear in the right-hand section. GUID-D8852276-B6C9-4F7A-8A6C-9BE4B4740077-high.jpg [High] Fig. 28 Enter your specific question in the "Comments" field. GUID-8138ABC4-B16B-435E-B5EC-8496CF935E54-high.jpg [High] Fig. 29 FENDT 900 Vario Gen6 1-21 X990005734011...

  • Page 25: Locate A Customer Number On Tech Connect

    If you want to save your entries as a draft, click the red "Save" icon (1). If you want to send your entries to FENDT, click the yellow "Submit" icon (2). If you want to cancel, click on the gray "x"...

  • Page 26: Respond To Support Requests

    GUID-23100564-C9BE-4B8B-B345-C84C398221A5-high.jpg [High] Fig. 35 GUID-7F794724-6F06-4F50-AFAA-0F2583407B3F [V1] 1.3.6 Respond to support requests Procedure If your request has been processed, you will receive a message from Fendt Technical Service. Open Tech Connect. FENDT 900 Vario Gen6 1-23 X990005734011...
  • Page 27 The information and correspondence with FENDT appears for this incident. In the "Comments" field, you can read the reply from FENDT (2) and provide your own response (1). IMPORTANT: Please inform us if the problem has been resolved so that we can close the case.

  • Page 28: Manage Support Requests

    1. 00-000 Entire vehicle system To send your reply to FENDT, click on "Submit" (2). GUID-F938A29D-0379-4202-93BF-41FAA84A5DCF-high.jpg [High] Fig. 40 To go back to your open cases, click the bell icon on the top right. GUID-97E5C74E-22E4-45DB-9B68-6F3541E00BFB [V1] 1.3.7 Manage support requests Procedure Open Tech Connect.
  • Page 29 If you are viewing a case, you can obtain an overview of all your cases by clicking on the small arrow in the left border. GUID-25A4DE12-D16C-4D4D-8DBF-49051AED5469-high.jpg [High] Fig. 43 Click on the small arrow to hide this view again. GUID-CA75D892-AA90-47BE-88C7-CAD17BB87C09-high.jpg [High] Fig. 44 1-26 FENDT 900 Vario Gen6 X990005734011...

  • Page 30: Connect And Synchronize Apple Mobile Device

    Go to the "Search" tab (1). Enter "AGCO Tech Connect" in the search bar (2). The Tech Connect app appears. Click on "Download" (3) to install the app on your mobile device. GUID-4BDFE981-C6D9-466A-A07B-BCD48D70364C-high.jpg [High] Fig. 45 Open Tech Connect. FENDT 900 Vario Gen6 1-27 X990005734011...
  • Page 31 Read the agreement and click "Accept" (see arrow). You will not be able to use the app without doing so! GUID-1FBFAADD-39A4-49B0-A5E3-702900C852D2-high.jpg [High] Fig. 47 Click on "Create access code" (see arrow). GUID-AF4CBE9E-6062-4978-ABB2-7546C9795477-high.jpg [High] Fig. 48 1-28 FENDT 900 Vario Gen6 X990005734011...
  • Page 32 A message appears indicating that the app wants to access your camera. Allow the access. Now hold the camera on your mobile device up to the QR code displayed on your computer. GUID-50BE3097-1101-4A06-BB95-500CE68B2A9D-high.jpg [High] Fig. 50 FENDT 900 Vario Gen6 1-29 X990005734011...
  • Page 33 1. 00-000 Entire vehicle system The app uses the code to read your access details and enters the information in the second line (1). Click on "Login" (2). GUID-F9D0DE62-003E-4912-91B3-9BBFDF59BEDD-high.jpg [High] Fig. 51 1-30 FENDT 900 Vario Gen6 X990005734011...
  • Page 34 You are now synchronized with your Tech Connect profile on your computer. You can now access Tech Connect on the move, and the menu structure is identical to the computer version. GUID-FD8DF1C1-4DA2-4A3C-A9B9-FF26908A4D43-high.jpg [High] Fig. 52 FENDT 900 Vario Gen6 1-31 X990005734011...

  • Page 35: Tightening Requirements

    13.2 Nm 15.4 Nm 21.6 Nm 31.8 Nm 37 .2 Nm 43 Nm 63 Nm 73 Nm 73 Nm 108 Nm 126 Nm 117 Nm 172 Nm 201 Nm 180 Nm 264 Nm 309 Nm 1-32 FENDT 900 Vario Gen6 X990005734011...

  • Page 36: Tightening Torque For Screws With A Galvanized Surface

    81.4 Nm 70.6 Nm 84.4 Nm 117 .7 Nm 142.2 Nm 112.8 Nm 132.4 Nm 186.4 Nm 225.6 Nm 176.6 Nm 206.0 Nm 289.4 Nm 348.2 Nm 240.3 Nm 284.5 Nm 392.4 Nm 475.8 Nm FENDT 900 Vario Gen6 1-33 X990005734011...

  • Page 37: Tightening Torque For Threaded Plugs

    • Applies to steel cap screws with phosphated surface protection and oiled or electrogalvanized. • Thread and contact surfaces under head must be lubricated with engine oil before mounting. • Mounting tolerance of +10% of the table values 1-34 FENDT 900 Vario Gen6 X990005734011...

  • Page 38: Tightening Torque For Banjo Bolts

    • Applies to banjo bolts in accordance with MMN 223 and N 15011 with sealing by seal ring DIN 7603Cu. • Applies to steel banjo bolts with phosphated surface protection and oiled or electrogalvanized and made of copper-aluminum alloys. FENDT 900 Vario Gen6 1-35 X990005734011...

  • Page 39: Tightening Torque For Hose Clamps

    Maximum tightening torque Spare part number 6 mm 0.3 Nm+0.2 Nm X457820300000 8 mm 0.3 Nm+0.2 Nm X457820400000 9 mm 0.3 Nm+0.2 Nm X457820900000 10 mm 0.3 Nm+0.2 Nm X457821102000 19 mm 1 Nm+0.5 Nm X458622500000 1-36 FENDT 900 Vario Gen6 X990005734011...
  • Page 40 5 Nm+0.5 Nm X458648500000 60 mm to 80 mm 3 Nm+0.5 Nm X458655700000 83 mm to 105 mm 10.2 Nm H530200191200 Profile clamps Nominal diameter Maximum tightening torque Spare part number 76 mm 7 Nm G530200192010 FENDT 900 Vario Gen6 1-37 X990005734011...

  • Page 41: Fuels And Lubricants

    Hypoid transmission oil 85W-90 to API GL-5. Do not use STOU or other universal oils. Front axle differential Initial filling (after repair) 19 l/16 l Fendt Extra Trans 10W-40 or Fendt Extra Trans 15W-40 with/without front PTO AGCO Parts Premium Transmission 15W-40 or STOU SAE 15W-40 or 10W-40 Refilling 16.5 l/12.8 l...

  • Page 42: Biodiesel

    Hydraulic system Capacity 122 l Fendt Super Hyd, Fendt Extra Hyd 68 or STOU SAE 5W-30, 5W-40, 10W-30,10W-40, 15W-30,15W-40 AGCO Parts Hydraulic Oil 68 Or engine oil HD-SAE 5W-30, 5W-40, 10W-30, 10W-40, 15W-30,15W-40 according to API-CD. HD-SAE 20 W-20 according to API-CD also permitted for temperatures above 10 °C...

  • Page 43: Biodegradable Hydraulic Oil

    Biodegradable hydraulic oil is more easily biodegradable and has less of an effect on the ground and groundwater in the event of accidental spills. IMPORTANT: In spite of the high environmental compatibility of biodegradable hydraulic oil, accidental spills must always be reported. 1-40 FENDT 900 Vario Gen6 X990005734011...

  • Page 44: Technical Specification

    1. 00-000 Entire vehicle system 1.6 Technical specification FENDT 900 Vario Gen6 1-41 X990005734011...

  • Page 45: General

    Permissible vertical carrying load for Heavy Duty Piton Fix 3000 kg Permissible vertical carrying load for hitch (towing hook) 4000 kg Permissible vertical carrying load for hitch (drawbar) 3000 kg Values are technically permissible, but country-specific exception approval may be required. Contact your FENDT dealer.
  • Page 46 Dimensions 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..WAM958..WAM959..WAM960..WAM961..Overall length without front linkage 5440 mm Overall length with front linkage (horizontal) 5975 mm Total width (depending on tires and rear axle) Max.
  • Page 47 Dimensions 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..WAM958..WAM959..WAM960..WAM961..Front bevel-gear drive ratio 31/15 2.0667 Front planet gear ratio 85/14 7 .0714 Front axle ratio NA version or 60'’ track 14.1429 Front bevel-gear drive ratio 30/15 Front planet gear ratio 85/14...
  • Page 48 Tightening torques 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..WAM958..WAM959..WAM960..WAM961..580 Nm Front wheel nuts 580 Nm Rear wheel nuts 600 Nm Rear bar axle flange bolts 264 Nm Wheel ballast weights When changing wheels, retighten wheel bolts after 10h and after 50h.

  • Page 49: Diesel Engine

    GUID-DE0394A4-0E4A-4209-B70B-FC95CCAB124F [V3] 1.6.2 Diesel engine General diesel engine 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..WAM958..WAM959..WAM960..WAM961..Engine type MAN - D1556 Emission levels EU Stufe 5 Operating type: 4-stroke diesel in-line engine Injection system Common rail system Electronic engine control EDC 17...
  • Page 50 General diesel engine 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..WAM958..WAM959..WAM960..WAM961..Intercooler Engine oil cooler Water Cylinder 930 Vario 933 Vario 936 Vario 939 Vario 942 Vario Tractor type Chassis number WAM957..
  • Page 51 This as a preview PDF file from best-manuals.com Download full PDF manual at best-manuals.com...
