Locate areas under the truck front end at the cross member as pictured.
Two speaker bracket systems can be mounted on this cross member.
Installation Procedure:
Passenger Side:
1. Install Speaker housing onto L bracket with the
housing facing the opposite direction of the short
leg on the bracket.
2. Install (2) Hook and Pile pad sections on under-
side surface of short leg of the bracket (either half
of the two piece pad system is acceptable)
3. Locate the area for the L bracket to be installed
over the truck cross frame by sliding the short leg
of the bracket between the cross frame and the
splash guard above the frame. (between the guard
fasteners and the outside end of the cross frame.)
Mark the area for the second half of the Hook and
pile connectors to be installed. (see fig 1)
4. From the front side of the cross member- Slide
the L bracket back off the frame and now install
the second half of the hook and pile pads to the
top of the cross frame in the area marked.
5. Pushing the short leg upward against the splash
guard - re insert the L bracket over the frame
member and seat the hook and pile connecting
pads into each other.
6. Insert tab of clamp bracket into L bracket slot
and rotate the clamp over the bottom of the cross
frame.
7. Install (2) 1/4- 20 nuts over studs on L bracket
and tighten while maintaining upward pressure on
the clamp assembly.
Installation Procedure:
Driver Side:
1. Locate area forward of the manifold
2. Mark this area for the hook and pile pad instal-
lation on the top of the cross frame.
3. Install Speaker housing onto L bracket with
the housing facing the opposite direction of the
short leg on the bracket.
4. Install (2) Hook and Pile pad sections on un-
derside surface of short leg of the bracket (either
half of the two piece pad system is acceptable)

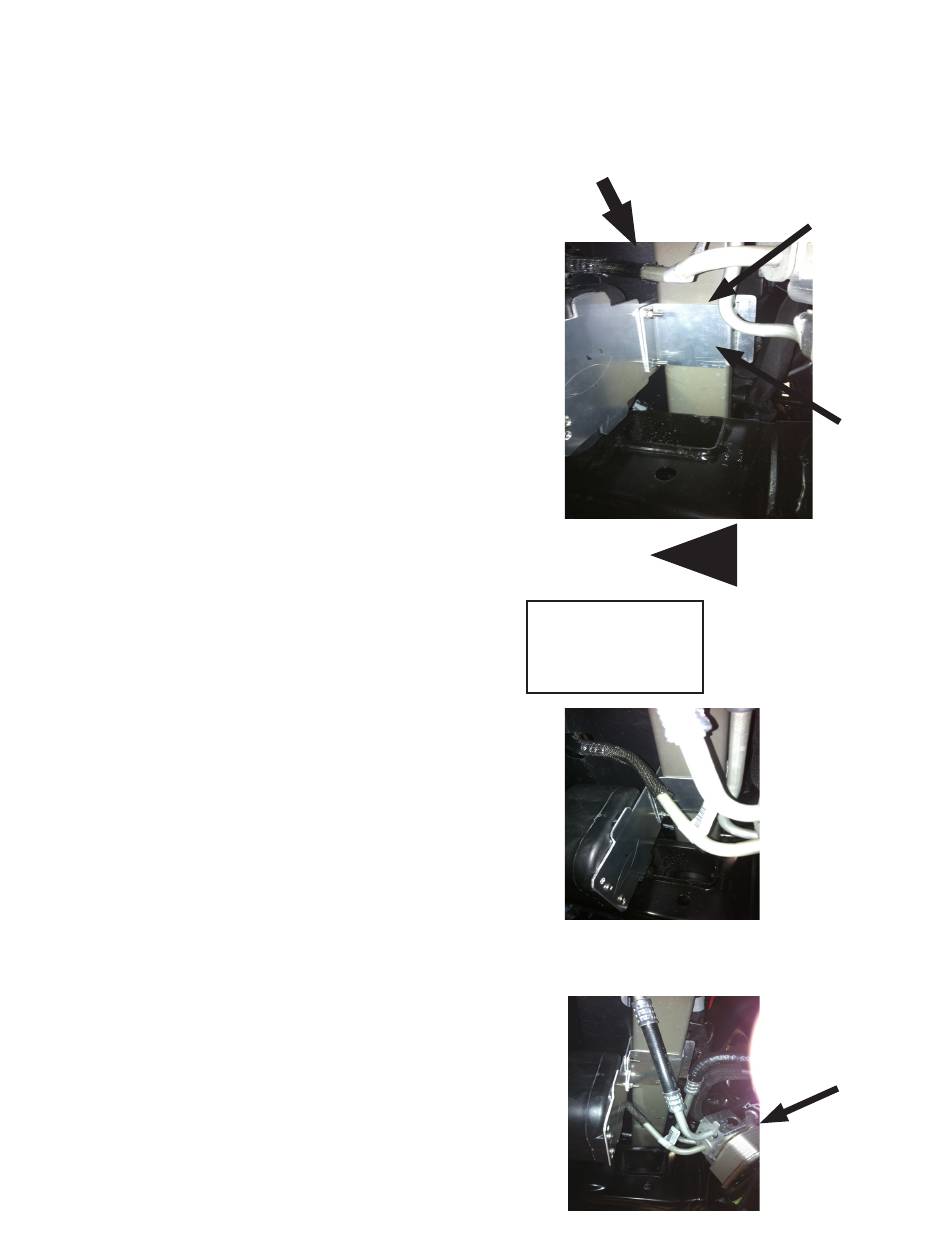

View looking up
at Passenger side
of truck frame.
fig 1.
Side view of Pas-
senger side bracket
installation:
2
mark area for
pads to be in-
stalled on top of
cross frame.
clamp
bracket
FWD
fig 2.
manifold
