MANUAL
FOR C3500 SPEAKER DRIVER
C3500
COMPACT SPEAKER
Safety Message to Installers..................................................2
Unpacking.......................................................................................3
Installation...................................................................................3
Bail Bracket Mounting..................................................................3-4
Operation........................................................................................5
Service......................................................................................6
Notes.......................................................................................7
Read all instructions and warnings before installing and using.
INSTALLER:
This manual must be delivered to the end user of this equipment.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Code 3 C3500
Summary of Contents for Code 3 C3500
-
Page 1: Table Of Contents

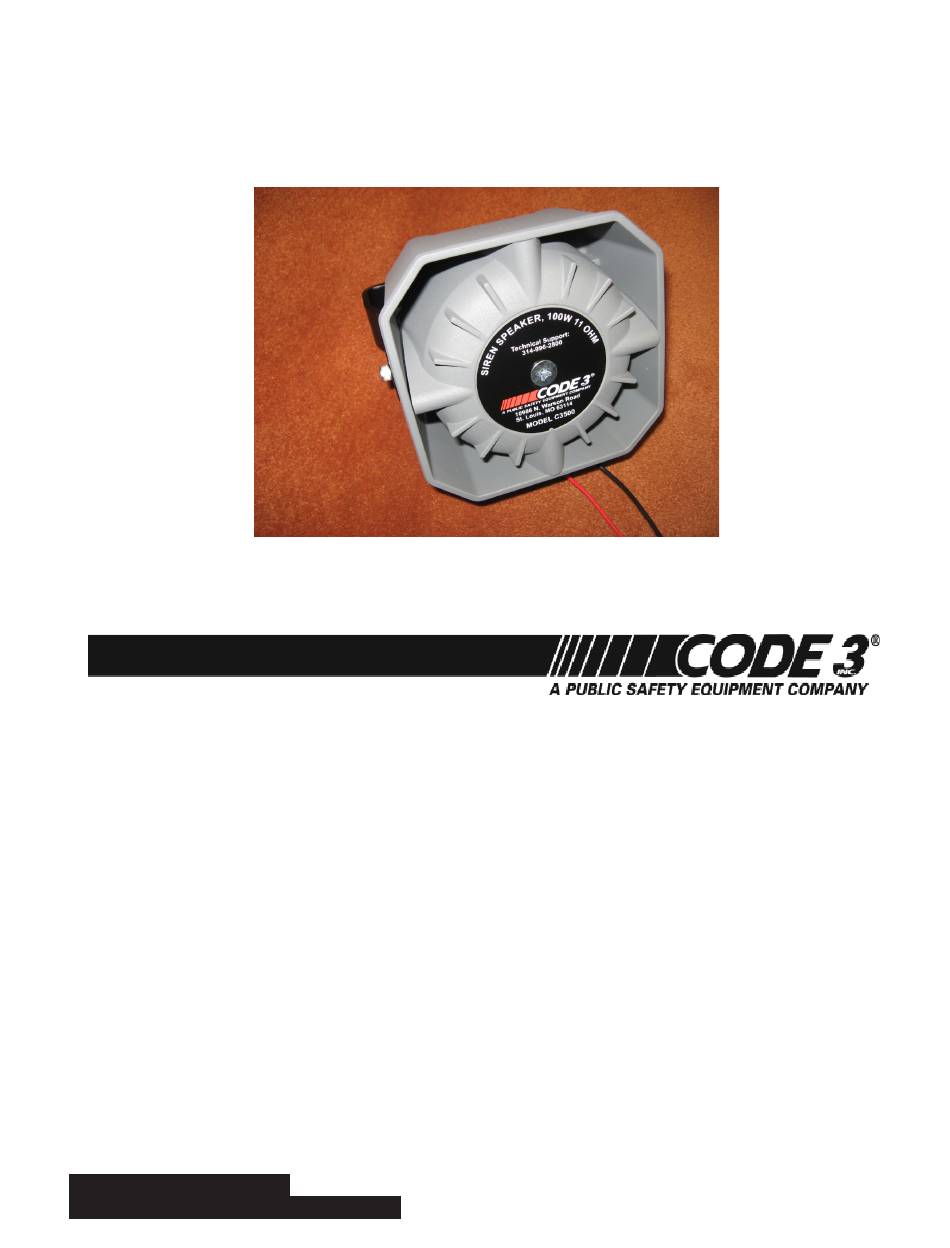

INSTALLATION & OPERATION MANUAL FOR C3500 SPEAKER DRIVER C3500 COMPACT SPEAKER CONTENTS: Safety Message to Installers..........2 Unpacking..................3 Installation...................3 Bail Bracket Mounting..............3-4 Operation..................5 Service..................6 Notes..................7 IMPORTANT: Read all instructions and warnings before installing and using. INSTALLER: This manual must be delivered to the end user of this equipment. -
Page 2: Safety Message To Installers
The lives of people depend on your proper installation clear of any obstructions. and servicing of Code 3®, Inc. products. It is important to read and follow all instructions shipped with the prod- •... -
Page 3: Unpacking
Unpacking & Pre-Installation A. UNPACKING C. BAIL BRACKET MOUNTING After unpacking the kit, carefully check all enve- 1. General lopes, shipping labels, and tags before removing or de- stroying them. Ensure that the parts listed in the KIT The supplied bracket is designed for mounting directly CONTENTS LIST are contained in the packing carton. - Page 4 d. Drill 3/16” mounting holes at the position marks. NOTE Some mounting arrangements may require installing the bracket on the mounting surface before securing the speaker to the bracket. e. Secure the bracket, or assembled unit to the mounting surface using the 1/4” x 5/8” type B screws and 1/4” lockwashers as shown in figure 1 or 2.
-
Page 5: Operation
D. OPERATION Signaling Limitations SAFETY MESSAGE TO OPERATORS OF CODE 3®, INC. ELECTRONIC SIRENS AND LIGHT/SOUND SYSTEMS • Be aware that the use of your visual and audible signal- ing devices does not give you the right to force your way through traffic. -
Page 6: Service
E. SERVICE • Code 3®, Inc siren amplifiers and speakers are de- SAFETY MESSAGE TO PERSONNEL SERVICING signed to work together as a system. Combining a siren Code 3®, Inc SIREN SPEAKERS and speaker from different manufacturers may reduce the warning effectiveness of the siren system and may damage the components. -
Page 7: Notes
F. NOTES... - Page 8 *Code 3®, Inc. reserves the right to repair or replace at its discretion. Code 3®, Inc. assumes no responsibility or liability for expenses incurred for the removal and /or reinstallation of products requiring service and/or repair.; nor for the packaging, handling, and shipping: nor for the handling of products returned to sender after the service has been rendered.
