Introduction:

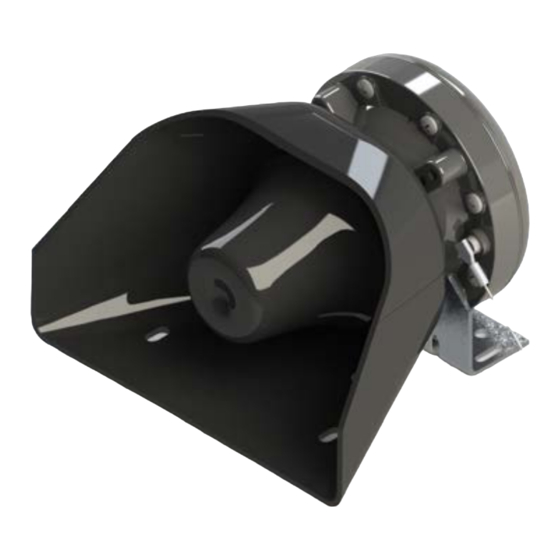

The Z100 and Z100LP are high output siren speakers
for mounting in light bars. These highly effective warning
devices employ a mathematically designed speaker for
maximum sound volume whether used as a siren or public
address system.
!
WARNING!
READ ALL INSTRUCTIONS AND WARNINGS BEFORE INSTALLING.
INSTALLER: THIS MANUAL MUST BE DELIVERED TO THE END USER OF THIS EQUIPMENT.
920-0437-00 Rev. A
Contents:
Introduction .........................................................2
Installation & Mounting.....................................3-4
Parts List..............................................................5
Exploded View.....................................................5
Notes................................................................6-7
Warranty..............................................................8
INSTALLATION &
OPERATION MANUAL
Z100 & Z100LP
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Code 3 Z100
Summary of Contents for Code 3 Z100
- Page 1 OPERATION MANUAL Z100 & Z100LP Introduction: The Z100 and Z100LP are high output siren speakers for mounting in light bars. These highly effective warning devices employ a mathematically designed speaker for maximum sound volume whether used as a siren or public address system.
- Page 2 Code 3, Inc., assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the siren and the safe operation of the emergency vehicle.
- Page 3 Installation & Mounting: 1. Using the supplied stainless steel sheet metal screws, begin the assembly by attaching the mounting bracket, #9 for 100 watt driver, to your Light Bar as outlined in your Light Bar User’s Manual. The mounting bracket must be mounted with two screws.
- Page 4 All devices should be mounted in accordance with the manufacturer’s instructions and securely fastened to vehicle elements of sufficient strength to withstand the forces applied to the device. Ease of operation and convenience to the operator should be the prime consideration when mounting the siren and controls.
- Page 5 Parts List: Ref No. Description Part No. Qty. Driver, 100 Watt 490-0019-00 Washer, Steel 340-0078-00 Washer, Paper 340-0076-00 Plastic Horn S01015 Plastic Horn, LP Models 250-0397-00 Washer, Paper 340-0077-00 Washer, Rubber 340-0079-00 Re-entrant Tip Assy 069-1231-00 Mounting Bracket, 100 Watt T04212 1/4-20 X 1/2”...
- Page 6 NOTES: Page 6 of 8 920-0437-00 Rev. A...
- Page 7 NOTES: Page 7 of 8 920-0437-00 Rev. A...
- Page 8 Be sure you use sufficient packing materials to avoid damage to the product being returned while in transit. *Code 3, Inc. reserves the right to repair or replace product at its discretion and assumes no responsibility or liability for expenses incurred for the removal and/or reinstallation of products requiring service and/or repair.
