Tynetec ZXT475 Manual

169mhz telecare pir movement detector

Advertisement

Quick Links

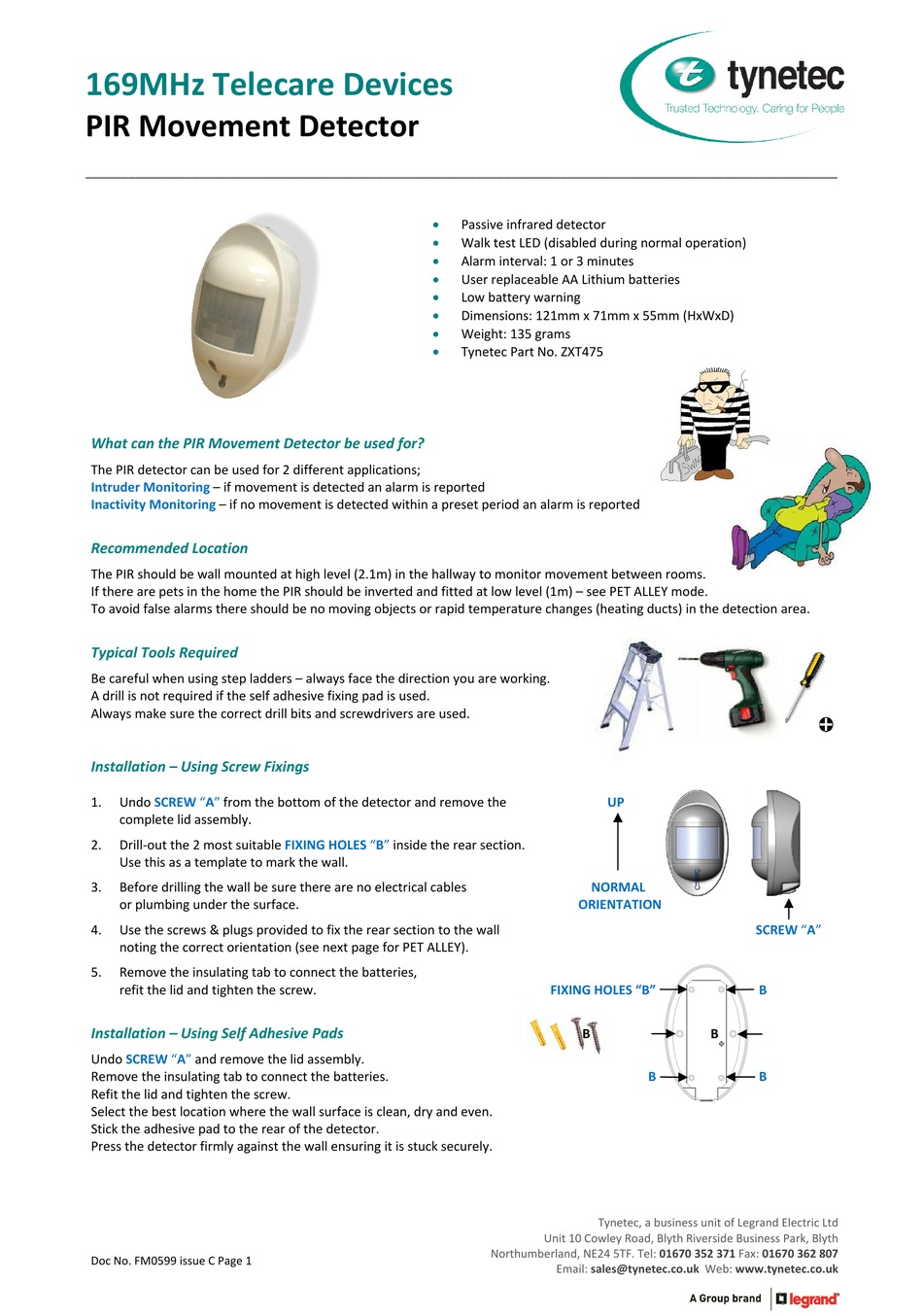

169MHz Telecare Devices
PIR Movement Detector

__________________________________________________________________________________________________________


















What can the PIR Movement Detector be used for?

The PIR detector can be used for 2 different applications;
Intruder Monitoring – if movement is detected an alarm is reported
Inactivity Monitoring – if no movement is detected within a preset period an alarm is reported


Recommended Location

The PIR should be wall mounted at high level (2.1m) in the hallway to monitor movement between rooms.
If there are pets in the home the PIR should be inverted and fitted at low level (1m) – see PET ALLEY mode.
To avoid false alarms there should be no moving objects or rapid temperature changes (heating ducts) in the detection area.


Typical Tools Required

Be careful when using step ladders – always face the direction you are working.
A drill is not required if the self adhesive fixing pad is used.
Always make sure the correct drill bits and screwdrivers are used.


Installation – Using Screw Fixings

1.
Undo SCREW "A" from the bottom of the detector and remove the
complete lid assembly.

2.
Drill‐out the 2 most suitable FIXING HOLES "B" inside the rear section.
Use this as a template to mark the wall.

3.
Before drilling the wall be sure there are no electrical cables
or plumbing under the surface.

4.
Use the screws & plugs provided to fix the rear section to the wall
noting the correct orientation (see next page for PET ALLEY).

5.
Remove the insulating tab to connect the batteries,
refit the lid and tighten the screw.


Installation – Using Self Adhesive Pads

Undo SCREW "A" and remove the lid assembly.
Remove the insulating tab to connect the batteries.
Refit the lid and tighten the screw.
Select the best location where the wall surface is clean, dry and even.
Stick the adhesive pad to the rear of the detector.
Press the detector firmly against the wall ensuring it is stuck securely.




Doc No. FM0599 issue C Page 1


Passive infrared detector
Walk test LED (disabled during normal operation)
Alarm interval: 1 or 3 minutes
User replaceable AA Lithium batteries
Low battery warning
Dimensions: 121mm x 71mm x 55mm (HxWxD)
Weight: 135 grams
Tynetec Part No. ZXT475


















          UP



     NORMAL

 ORIENTATION






          FIXING HOLES "B"





     B
Tynetec, a business unit of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk  Web: www.tynetec.co.uk

   SCREW "A"



    B


B

    B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZXT475 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tynetec ZXT475

  • Page 1            Passive infrared detector   Walk test LED (disabled during normal operation)   Alarm interval: 1 or 3 minutes   User replaceable AA Lithium batteries   Low battery warning   Dimensions: 121mm x 71mm x 55mm (HxWxD)   Weight: 135 grams   Tynetec Part No. ZXT475                                      What can the PIR Movement Detector be used for? ...
  • Page 2 Pet Alley Mode                     To prevent pets causing false activations the PIR detector  must be inverted and fitted at low level (1m).                 PET ALLEY ORIENTATION    When fitted in this mode any movement below                 FIT AT LOW LEVEL WITH LED AT THE TOP   the 1m level will go un‐detected .      Results based on tests in a 4m x 4m room.      Walk Test Mode    To enter the walk test mode;    Undo the screw and remove the PIR lid                  ...
  • Page 3 PIR batteries should last for up to 2 years.                      The batteries are checked every day, if the voltage falls and stays below a preset level  a “low battery” call is automatically sent to the Control Centre or Local Manager.     Another low battery call will not be transmitted for 7 days.     The batteries should be replaced within 2 weeks of the first low battery warning.    Replacement batteries: 2 x AA size Energizer Lithium – always replace in pairs.    Take care to refit the batteries in the correct polarity.     Detailed information on battery management for all Tynetec products is available in a separate document.  Contact Tynetec’s customer support dept and request a copy of Doc No. FM0630.       Product Returns    In the unlikely event that the product is found to be faulty or develops a fault it must be returned to the point of sale with proof of  purchase, a description of the fault and both batteries (disconnected).      Operating Environment    This product is intended for use inside domestic environments, it is not for outdoor use.  For applications in environments where  conditions such as humidity, temperature, vibration and noise deviate from those of a home please contact the manufacturer  with the details.     This unit is designed to detect movement and activate an alarm, being only a part of a complete system, no responsibility can be  accepted for any damages or other consequences resulting from an intrusion.      ...
  • Page 4 See the Reach installation & programming guide (Tynetec Doc No. FM0621) or the Reach Plus installation &  programming guide (Tynetec Doc No. FM0662) for more information.    Learning the PIR Detector onto an Advent xt…    Press the LINE key on the Managers DECT telephone and wait for the “Ready” prompt.  Enter 5 0 0 0 followed by the  key.  Enter the flat number the PIR is being installed in followed by the  key.  Activate the PIR tamper switch and wait for the “Enter Location Code” prompt.  Enter the appropriate 2 digit location code (listed in Advent xt user guide) or press # and wait for the  “Pendant Enabled – Enter Flat” prompt.  Press the # key to exit the mode followed by the LINE key to clear the connection.  Activate the PIR and check the correct call type is reported.  See the Advent xt user guide (Tynetec Doc No. FM0420) for more information.    Learning the PIR Detector onto an Altec Response…    From the main menu display select  Radio Devices  and press the ENTER key.  Press ENTER again and the display will prompt you to “Trigger the Sensor”.  Activate the PIR tamper switch – the display will show the device type and its 8 digit ID number.  Press the  key to select   Accept  then press ENTER.   The display will show  Flat , use the  &  keys to choose the dwelling type from the list.  Press the  key to select  No: 000000  then press the ENTER key. Use the  &  keys to select each  digit of the flat number and the  &  keys to move between digits then press the ENTER key.   Press the  key and the display will show  No Location , use the  &  keys to choose the appropriate  device location from the list.  Press the  key several times to select  Exit  then press the ENTER key.  Activate the PIR and check the correct call type is reported.  10. See the Altec Response user guide (Tynetec Doc No. FM0548) for more information.              Tynetec operates a policy of continuous improvement and reserves the right to change product specifications without notice.  If any variation to the details contained in this document are suspected please contact Tynetec’s customer support dept on 01670 352371.   Doc No. FM0599 issue C Page 4  ...
