Tynetec ZXT483 Installation Manual

__________________________________________________________________________________________________________

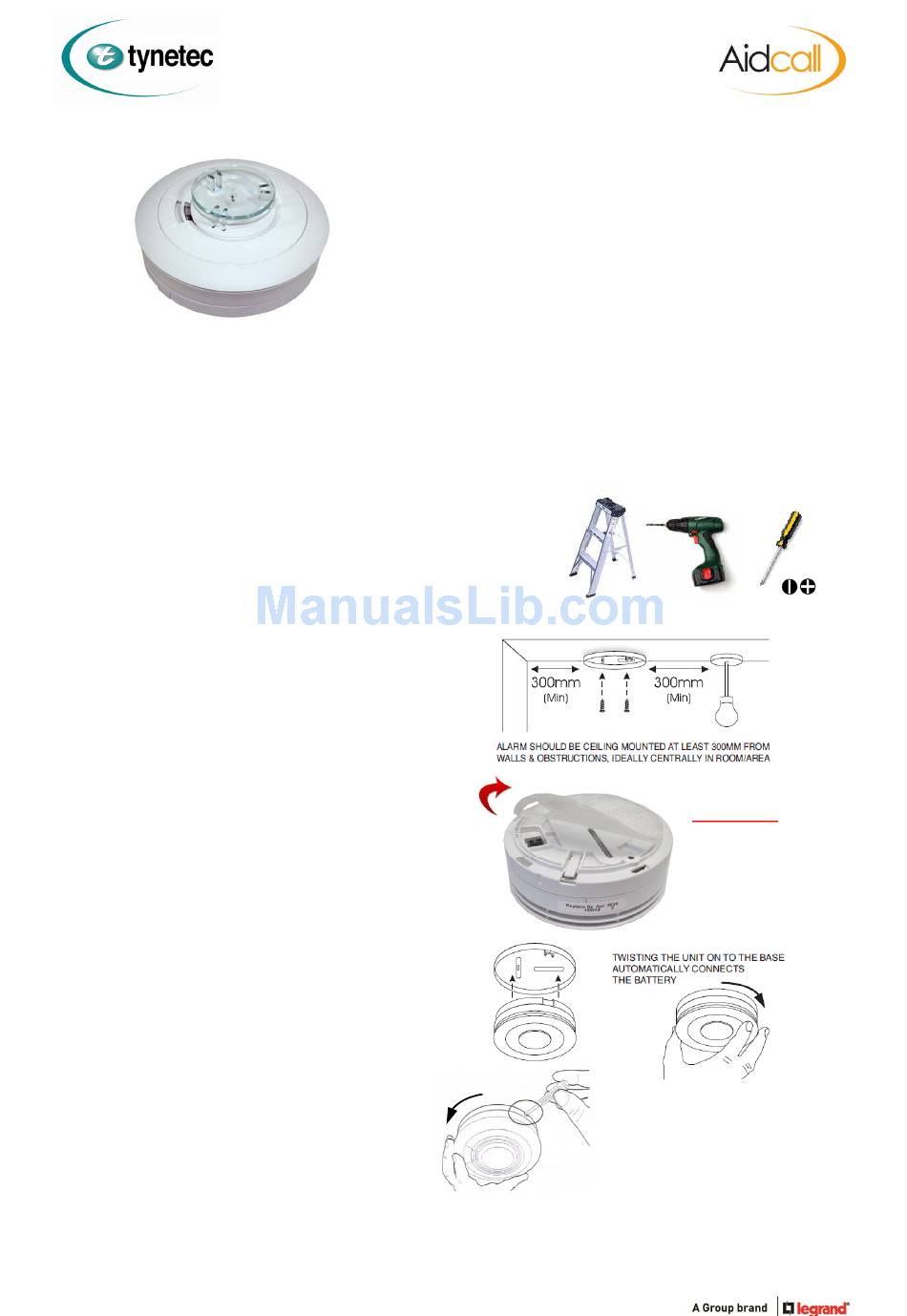

Where should Heat Detectors be fitted?
Heat detectors are suitable for fitting in areas with high levels of fumes or smoke, i.e. the kitchen.
Do not fit in the bathroom or areas subject to steam or condensation.
Ideally the heat detector should be ceiling mounted near the centre of the room, at least 300mm from any light fitting and
300mm away from any wall or corner.
Try and avoid areas out of reach where it will be difficult to press the TEST button.
Typical Tools Required
Be careful when using step ladders – always face the direction you are working.
Always make sure the correct drill bits and screwdrivers are used.
A drill and screwdriver are not required if the self adhesive pads are used.
Installation using Screw Fixings (Recommended)
1. Locate the best position and fix the base plate to the ceiling
using the screws & plugs provided.
2. Align the detector body and base plate and twist clockwise
to clip into place. This action also connects the battery.
3. The red light will blink once every 40 seconds when the
detector is fitted correctly.
Installation using Self Adhesive Pads
1. Remove the round foam disk off the rear face of the base
plate to ensure good adhesion of self adhesive pads.
2. Locate the best position and fix the base plate to the ceiling
using the 2 adhesive pads provided. Press firmly to ensure
it is stuck securely.
3. Align the detector body and base plate and twist clockwise
to clip into place. This action also connects the battery.
4. The red light will blink once every 40 seconds when the
detector is fitted correctly.
Removing the Heat Detector
1. Use a small flat bladed screwdriver to push‐up on the
safety locking catch.
2. Twist the body of the detector anti‐clockwise to
remove from the base plate.
Doc No. FM0669 issue G Page 1
169MHz Telecare Devices
Heat Detector










Compatible with Reach at‐home alarms, Advent xt warden call,
Altec Response and Touchsafe Pro Nursecall systems
o
Alarm temperature: 54 to 62
85dB @ 3m sounder & red operating light
Long life Lithium battery
Low battery warning
Test button
Complies with BS 5446‐2: 2003
Dimensions: 115mm x 55mm
Weight: 200 grams
Product Code: ZXT483
PUSH THE LOCKING CATCH AND TWIST
ANTI-CLOCKWISE TO REMOVE THE
DETECTOR FROM THE BASE PLATE
Tynetec and Aidcall are business units of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
o o
C (58 C typical)
IMPORTANT
REMOVE THE FOAM DISK
FROM THE REAR FACE OF THE
BASE PLATE WHEN FIXING
WITH SELF ADHESIVE PADS
