6-2 DK55

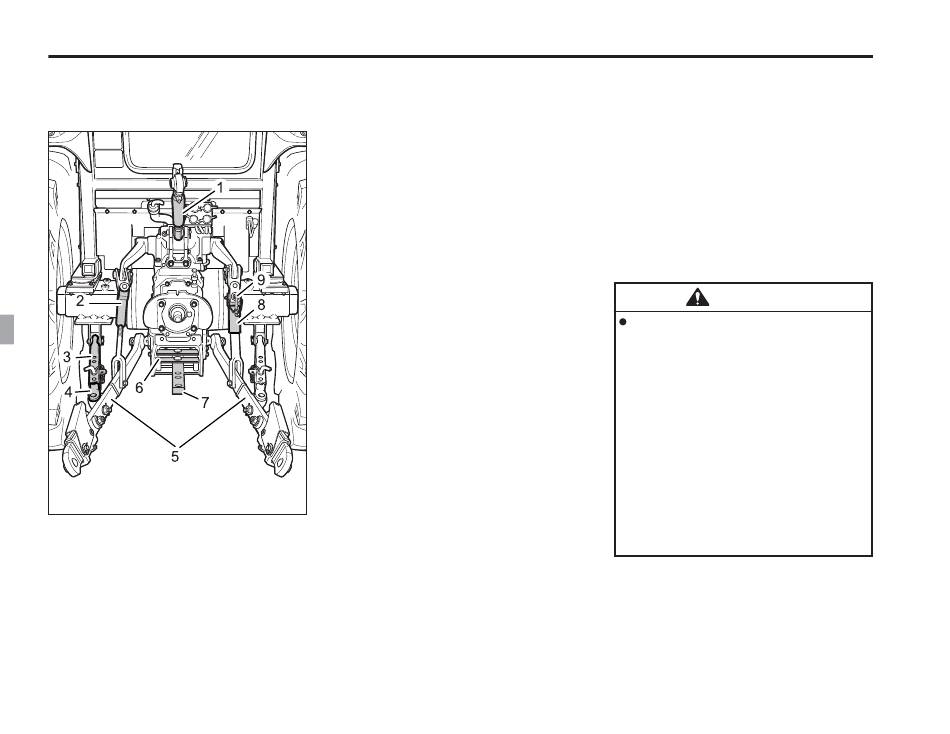

3-POINT HITCH
(1) Top Link (6) Swing Drawbar Frame
(2) Lifting Rod (LH) (7) Swing Drawbar
(3) Check Link (RH)(8) Lifting Rod (RH)
(4) Check Link (LH) (9)Handle
(5) Lower Link

ADJUSTMENT OF TOP LINK

1. Adjust the angle of the implement to
the desired position by shorting or
lengthening the Top Link.
2. The fixing position of the top-hitch var-
ies according to the type of implement
being used.
069O601A

ADJUSTMENT OF LIFTING ROD

1. Adjust the position of the implement
evenly by moving the lifting rod.
2. After the adjustment is completed, se-
cure with the stopper.
3. Correct positioning of the lifting rod to
the lower link is shown below. Posi-
tioning varies dependent upon the type
of implement.
WARNING
Before disconnecting a lift rod
from the lower link, stop the en-
gine and lower attached equip-
ment to the ground. Ensure at-
tached equipment is correctly
supported and that no residual
pressure remains in the hydrau-
lic system before removing the lift
rod securing pin. Move the hy-
draulic lift control lever fully
backward and forward several
times, in order to remove any re-
sidual pressure, then move the le-
ver fully forward.
