ROADMASTER, Inc.
6110 NE 127th Ave.
Item
Qty.

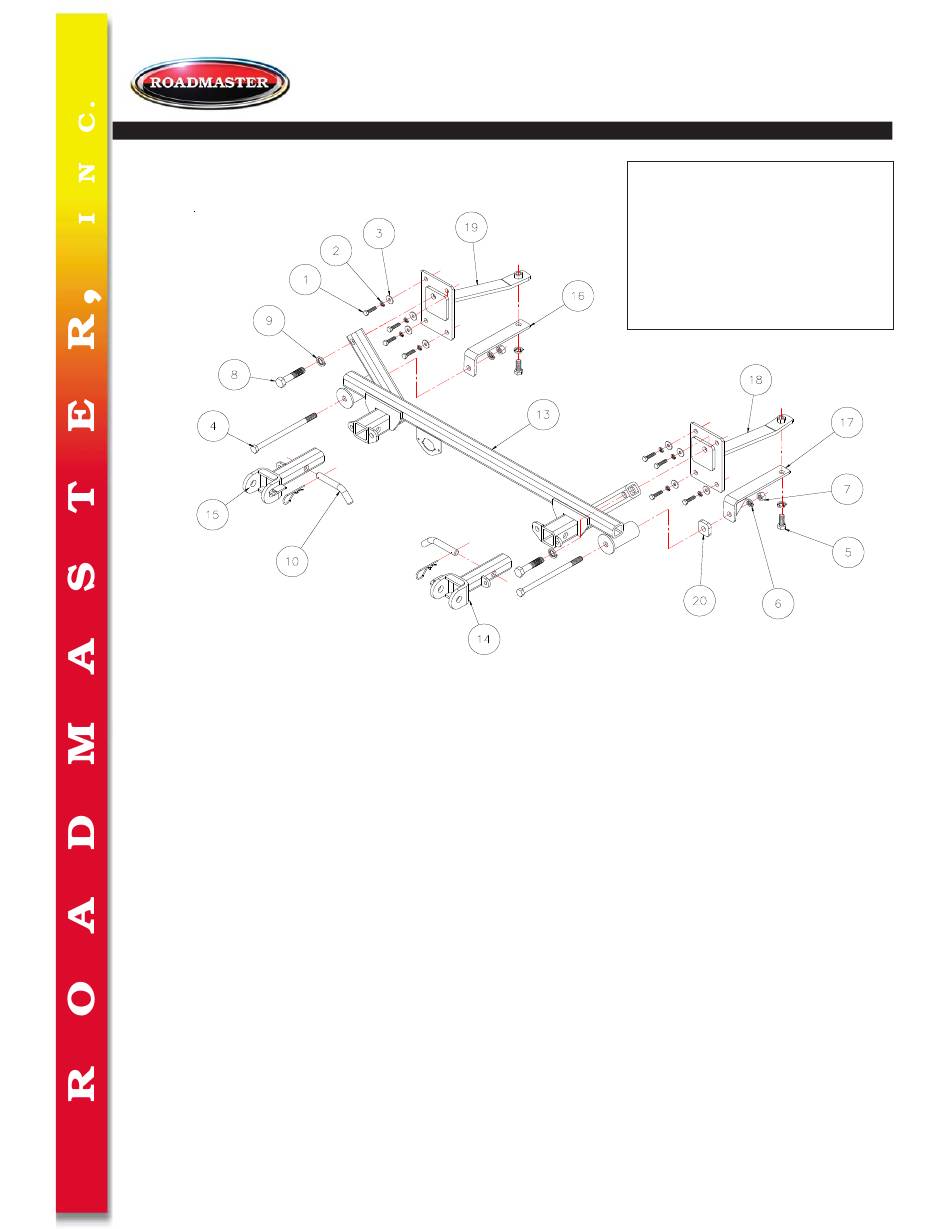

1 .............. 8 ............... 8mm x 1.25 x 30 mm .......................................................... 356001-00
2 .............. 8 ............... LOCK WASHER .................................................................. 355705-00
3 .............. 8 ............... FENDER WASHER ............................................................. 355702-00
4 .............. 2 ............... 1/2" x 9" BOLT .................................................................... 350114-00
5 .............. 2 ............... 1/2" x 1 3/4" BOLT .............................................................. 350096-00
6 .............. 4 ............... LOCK WASHER .................................................................. 350309-00
7 .............. 4 ............... NUT ..................................................................................... 350258-00
8 .............. 2 ............... 5/8" x 3" BOLT .................................................................... 350154-00
9 .............. 2 ............... LOCK WASHER .................................................................. 350313-00
10 ............ 2 ............... DRAW PIN, SPRING PIN .................................................... 357035-00
13 ............ 1 ............... MAIN BRACE ...................................................................... C-000991A
14 ............ 1 ............... DRIVER SIDE ARM WELDMENT ....................................... C-000992
15 ............ 1 ............... PASSENGER SIDE ARM WELDMENT .............................. C-000993
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN DEATH, PERSONAL INJURY OR PROPERTY DAMAGE
16 ............ 1 ............... PASSENGER SIDE REAR MOUNTING WELDMENT ........ C-000994
17 ............ 1 ............... DRIVER SIDE REAR MOUNTING WELDMENT ................. C-000995
18 ............ 1 ............... DRIVER SIDE REAR WELDMENT ..................................... C-001285
19 ............ 1 ............... PASSENGER SIDE REAR WELDMENT ............................ C-001286
20 ............ 1 ............... 3/8" x 1 1/2" x 1 1/2" SPACER ........................................... A-001645

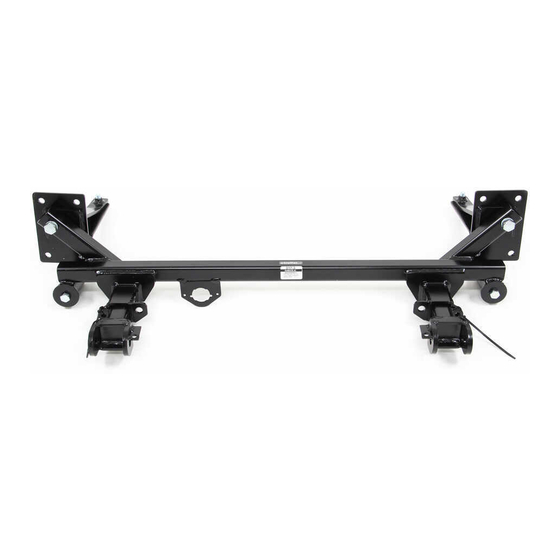

BASEPLATE KIT
Vancouver, WA 98682
Description
1-800-669-9690
fax 360-735-9300
Note: this bracket will not
accommodate the Guardian
rock shield, Stowaway or the
StowMaster and StowMaster
All Terrain tow bars.
KIT# 917-3
04/21/08
KS
www.roadmasterinc.com
