1. Unpack your Aptiva ® PC
Locate the following items:

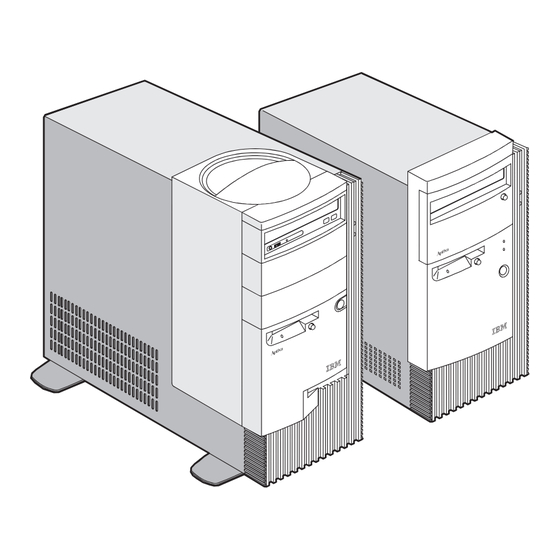

System unit
(minitower or microtower)
2. Connect the system components
Attach components to the computer as shown.
If you need setup instructions for components that are not shown here, refer
to the back of this sheet or the instructions that came with the component.
Note: Note: Note: Note: Most cable connectors are color-coded to match the location Note:
at the back of the system unit where you connect the cable.
Read "Safety information" in the Aptiva Reference Guide to learn
about connecting cables.
For machine type 2170, incorrectly installing speakers other than those
originally shipped with your Aptiva PC could cause permanent damage to
your speakers. Look in Aptiva Help for information about installing amplified
speakers.
3. Connect Power cords
The voltage selector switch should be preset for your area; however, contact your
local power company if you are uncertain of the voltage for your area.
• If the voltage supply range in your area is 100-127V, set the voltage selector switch
so you can see 115V or 115.
• If the voltage supply range in your area is 200-240V, set the voltage selector switch
so you can see 230V or 230.
Connect the power cords to the computer and monitor first, and then connect the
power cords to the electrical outlets. For clarity, only the power cords are shown in
this picture.
Note: Note:
Note: Note: Note: If your computer has a power switch on the back of the computer, press it in
the ON position (1=ON).
Modem cord Power cord
Mouse Speaker power adapter
(provided with powered speakers only)
or
Speakers
(powered or unpowered)
Keyboard Monitor with stand you attached
(may be sold separately)
The back of your
speaker looks like
one of the two
speakers shown
in this picture.
Publications and CD-ROMs
Printer (sold separately)
Setup of a home
PNA network card
(available on
some models) is
shown on the
back of this sheet.
Power switch
Voltage selector switch
Speaker power adapter
(provided with powered
speakers only)
(Continued on back)
