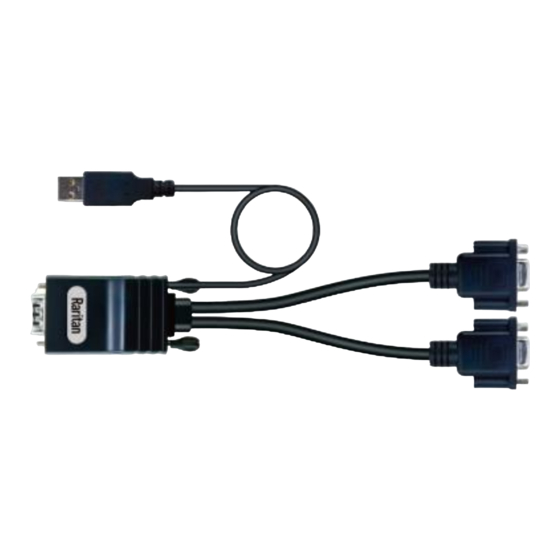

LVC-101G2 VGA Video Splitter
The Raritan LVC-101G2 VGA Video Splitter is an active 2-port
VGA Video Splitter that allows two VGA monitors to display
the same video source from a single PC. The LVC-101G2
supports analog video (1920 x 1200) for your maximum
flexibility in adapting to your display requirements. Its video
bandwidth is up to 350 MHz which supports up to 1920 x
1200 resolution. While splitting the video signals to multiple
VGA monitors/Flat Panel Displays, the image quality is not
degraded at all and stays crisp and clear throughout. The
LVC-101G2 VGA Video Splitter will be your ideal solution for
showroom and classroom presentations.
Features
2-port VGA Video Splitter
Displays the same video source to 2 VGA monitors/Flat Panel Displays
from a single PC
Video bandwidth up to 350 MHz (analog)
Supports up to 1920 x 1200 resolution
Simultaneous monitor display
Plug-and-play, no extra software needed

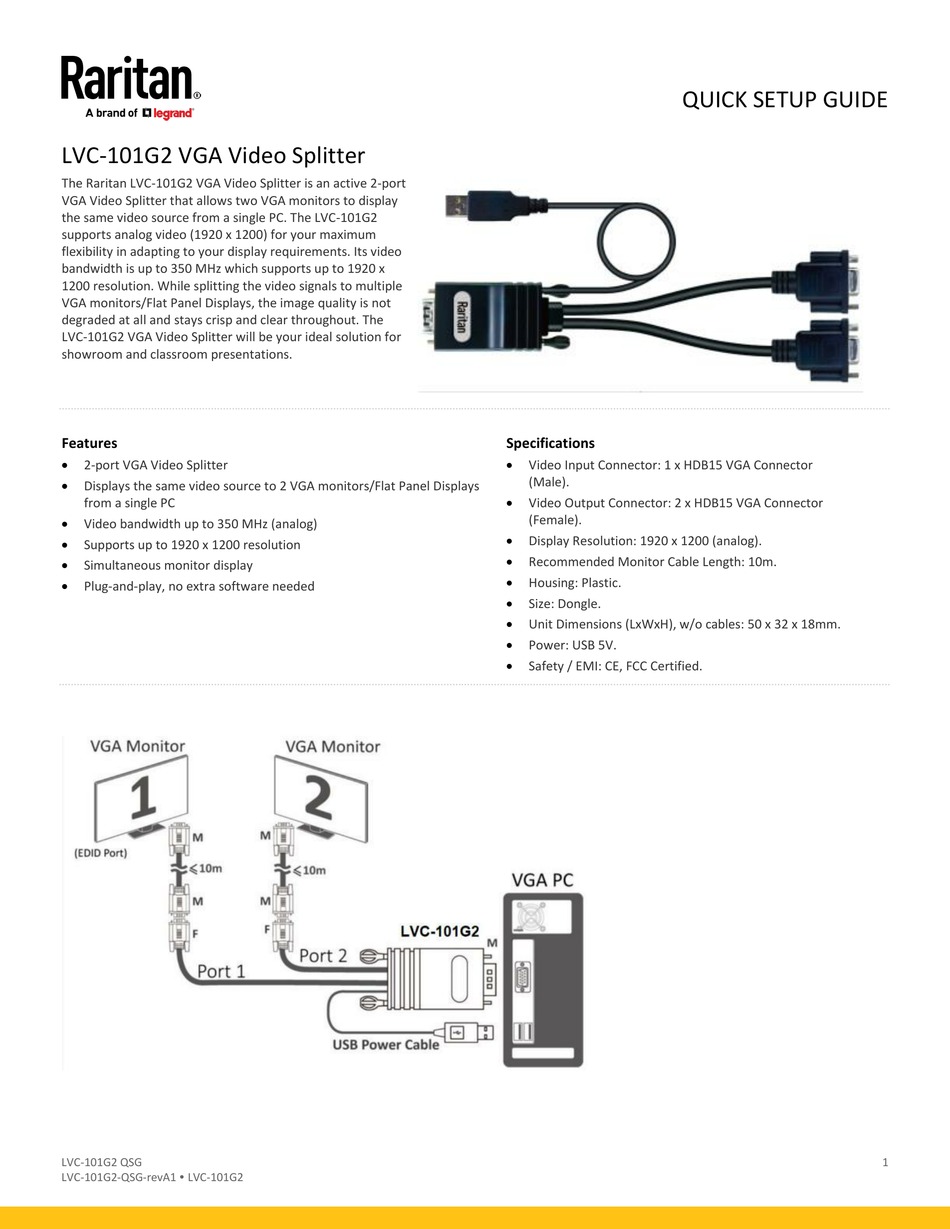

LVC-101G2 QSG
LVC-101G2-QSG-revA1  LVC-101G2
QUICK SETUP GUIDE
Specifications
Video Input Connector: 1 x HDB15 VGA Connector
(Male).
Video Output Connector: 2 x HDB15 VGA Connector
(Female).
Display Resolution: 1920 x 1200 (analog).
Recommended Monitor Cable Length: 10m.
Housing: Plastic.
Size: Dongle.
Unit Dimensions (LxWxH), w/o cables: 50 x 32 x 18mm.
Power: USB 5V.
Safety / EMI: CE, FCC Certified.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Raritan LVC-101G2 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Raritan LVC-101G2

  • Page 1 QUICK SETUP GUIDE LVC-101G2 VGA Video Splitter The Raritan LVC-101G2 VGA Video Splitter is an active 2-port VGA Video Splitter that allows two VGA monitors to display the same video source from a single PC. The LVC-101G2 supports analog video (1920 x 1200) for your maximum flexibility in adapting to your display requirements.
  • Page 2 Setup You can set up two monitors to get the output using the LVC-101G2 VGA Video splitter. It is important to establish the first port (EDID Port) connection first to get the video output on second port, otherwise you will not see anything on second port. ...
