- Page 1 Inrevium USB30 Startup Guide inrevium USB30 Startup Guide Rev.2.00 Rev.2.00...
- Page 2 Inrevium USB30 Startup Guide Revision History Version Date Description Publisher Rev.1.00 2012/06/25 Initial release Yoshioka Rev.1.10 2012/12/20 Supported by Cypress FX3 SDK for Windows ver.1.2.1 Kiguchi Rev.2.00 2014/09/29 Supported by Cypress FX3 SDK for Windows ver.1.3.1 Kiguchi Please read this software license agreement carefully before downloading or using the Software. By downloading the Software, you are agreeing to be bound by the terms of this software license.
-
Page 3: Table Of Contents
FAQ ......................................19 Will the board run on XXX’s PC? ..................... 19 9.1. 9.2. Does the TB-FMCL-USB30 board run in standalone? ............. 19 9.3. Is an USB3.0 cable attached? ....................19 9.4. Not recognized as USB when connected to PC. What are the causes of this? ....19 9.5. - Page 4 Figure 4-3 TB-FMCL-USB30 Jumper Settings................... 7 Figure 4-2 TB-7V-2000T-LSI Jumper Settings ................... 8 Figure 4-2 TB-7VX-690/980/1140T-PCIEXP Jumper Settings ............8 Figure 4-5 TB-7K-325T-IMG + TB-FMCL-USB30 Cable Connections ..........9 Figure 4-5 TB-7V-2000T-LSI Cable Connections ................10 Figure 4-5 TB-7VX-690/980/1140T-PCIEXP Cable Connections ............ 10 Figure 6-1 Updating Driver Software ....................
-
Page 5: Overview
Inrevium USB30 Startup Guide 1. Overview This document provides a description about how to unpack and use the TB-FMCL-USB30, TB-7V-2000T-LSI and TB-7VX-690/980/1140T-PCIEXP boards in the early part and how to embed interface circuits in the carrier board FPGA design in the latter part. -
Page 6: Distributed Data
Inrevium USB30 Startup Guide 3. Distributed Data This section describes distributed data used in this document. 3.1. Distributed Data Structure Zip files available from the TED Support Website When the inrevium_USB30_Startup_x_xx.zip is expanded, the following data files will appear (partly... -
Page 7: Board Setup

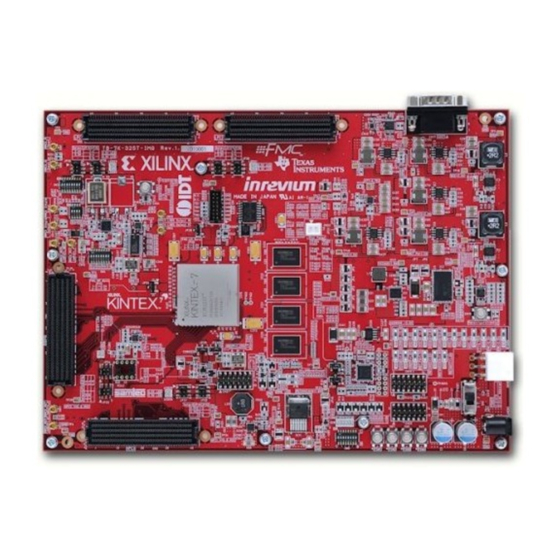

Figure 4-1 shows the TB-7K-325T-IMG board jumper settings. JP35/36 1-2 Short 3-4 Open 5-6 Open Figure 4-1 TB-7K-325T-IMG Jumper Settings 4.2. TB-FMCL-USB30 Jumper Settings Figure 4-2 shows the TB-FMCL-USB30 jumper settings. JP5 1-2 JP6 1-2 JP7 1-2 JP8 1-2 JP2 1-2 JP3 1-2 JP4 Open Figure 4-2 TB-FMCL-USB30 Jumper Settings Rev.2.00... -
Page 8: Tb-7V-2000T-Lsi Jumper Settings
Inrevium USB30 Startup Guide 4.3. TB-7V-2000T-LSI Jumper Settings Figure 4-1 shows the TB-7V-2000T-LSI board jumper settings. JP53 : NC JP52 : 1-2 JP51 : 1-2 Figure 4-3 TB-7V-2000T-LSI Jumper Settings 4.4. TB-7VX-690/980/1140T-PCIEXP Jumper Settings Figure 4-1 shows the TB-7VX-690/980/1140T-PCIEXP board jumper settings. -
Page 9: Board And Cable Connections
Inrevium USB30 Startup Guide 4.5. Board and Cable Connections Connect PC to USB3.0 TypeB using a USB3.0 cable (TypeA to TypeB). USB3.0 TypeB Power Figure 4-5 TB-7K-325T-IMG + TB-FMCL-USB30 Cable Connections Rev.2.00... -
Page 10: Figure 4-5 Tb-7V-2000T-Lsi Cable Connections
Inrevium USB30 Startup Guide Power USB3.0 TypeB Figure 4-6 TB-7V-2000T-LSI Cable Connections Power USB3.0 TypeB Figure 4-7 TB-7VX-690/980/1140T-PCIEXP Cable Connections Rev.2.00... -
Page 11: Fpga Configuration
Inrevium USB30 Startup Guide 5. FPGA Configuration Make sure that the board has been set up as shown in Section 4 Board Setup and then turn on the power switch and configuration FPGA of the board. Rev.2.00... -
Page 12: Installing Driver Software
Inrevium USB30 Startup Guide 6. Installing Driver Software This section describes how to install driver software on the computer connecting to the board. 6.1. Open Device Manager Open Device Manager by selecting Windows Control Panel -> Device Manager. A device icon with mark “!”... -
Page 13: Specifying A Driver Store Folder
Inrevium USB30 Startup Guide 6.3. Specifying a Driver Store Folder Select Search for driver software in this location to specify a driver store folder you want. Set Driver Location -Click- Figure 6-3 Specifying a Driver Store Folder Driver Store Folder Windows 7 32bit inrevium_USB30_Startup_x_xx¥Sys¥win7¥x86... -
Page 14: Completion Of Driver Software Installation
Inrevium USB30 Startup Guide 6.5. Completion of Driver Software Installation When the software installation has been completed successfully, click on the Close button. Close -Click- Figure 6-5 Completion of Driver Software Installation 7. Downloading USB3.0 Firmware This section provides information on how to download USB3.0 Firmware. -
Page 15: Programming The Firmware
Inrevium USB30 Startup Guide 7.2. Programming the Firmware From the CyControl menu, select Program => FX3 => RAM and specify inrevium_USB30_Startup_x_xx/Firm/*.img in the Select file to download dialog. 7.3. Completion of Programming When programming is successfully completed, Cypress USB BulkloopExample will appear in the CyControl menu. -
Page 16: Running Sample Application
Inrevium USB30 Startup Guide 8. Running Sample Application This section describes how to run sample application and perform operational testing of the sample design. 8.1. Run FMCFx3RefDesign.exe Run inrevium_USB30_Startup_x_xx/App/FMCFx3RefDesign.exe. The FMCFx3RefDesign.exe sample application has functions as shown in Figure 8-1. -
Page 17: Single Access Test (Axi)
Inrevium USB30 Startup Guide 8.3. Single Access Test (AXI) Then, write and read the AXI Register. Following Data 0x, type a 32-bit value (a5a5a5a5) for Write -> Read operations. If this test is completed successfully, the written value can be read properly. -
Page 18: Speed Test
Inrevium USB30 Startup Guide 8.5. Speed Test USB transfer rate between PC and board can be measured. Set Direction and Size and click on the Start button. Data transfer speed will be displayed. Its value varies greatly dependent on PC configuration. -
Page 19: Faq
Inrevium USB30 Startup Guide 9. FAQ This section provides information about Frequently Asked Questions regarding TB-FMCL-USB30. Will the board run on XXX’s PC? 9.1. USB logo program is not available. So, connection to all PCs cannot be guaranteed. For connectivity information, please refer to the TED Support Web. -
Page 20: Can The Board Function As A Usb3.0 Host Controller
Inrevium USB30 Startup Guide 9.5. Can the board function as a USB3.0 Host Controller? No, it cannot function as an USB3.0 Host Controller. 9.6. Is the associated software source code provided? Free sample software and applications can be downloaded from TED Support Web. - Page 21 Inrevium USB30 Startup Guide PLD Solution Dept. PLD Division URL: http://solutions.inrevium.com/ E-mail: psd-support@teldevice.co.jp HEAD Quarter: Yokohama East Square, 1-4 Kinko-cho, Kanagawa-ku, Yokohama City, Kanagawa, Japan 221-0056 TEL: +81-45-443-4016 FAX: +81-45-443-4058 Rev.2.00...
