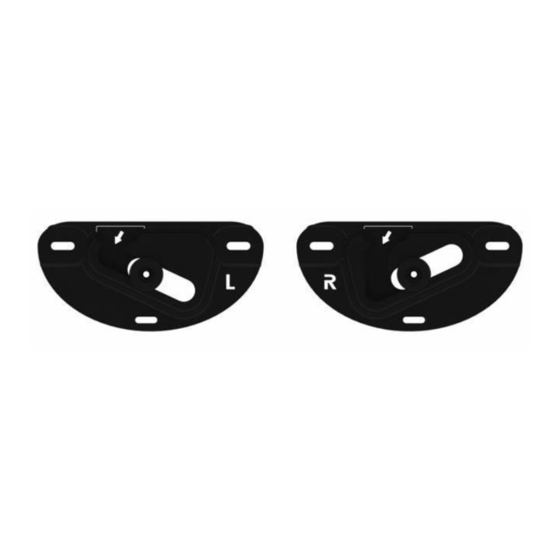

RML8300-F
##
Leaflet No. 464843
rev00
Read through ALL instructions before commencing installation.
If you have any questions about this product or issues with installation
STOP
contact the customer services help line before returning this product to
the store. See ca.orbitalholdings.com/p/RML8300-F
CUSTOMER SERVICES HELP LINE NUMBER:
121lbs
1-800 601 8450 (USA)
55kg
Orbital Holdings Inc. 3187, Cornerstone Drive, Eastvale, CA 91752, USA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF RML8300-F
Summary of Contents for AVF RML8300-F

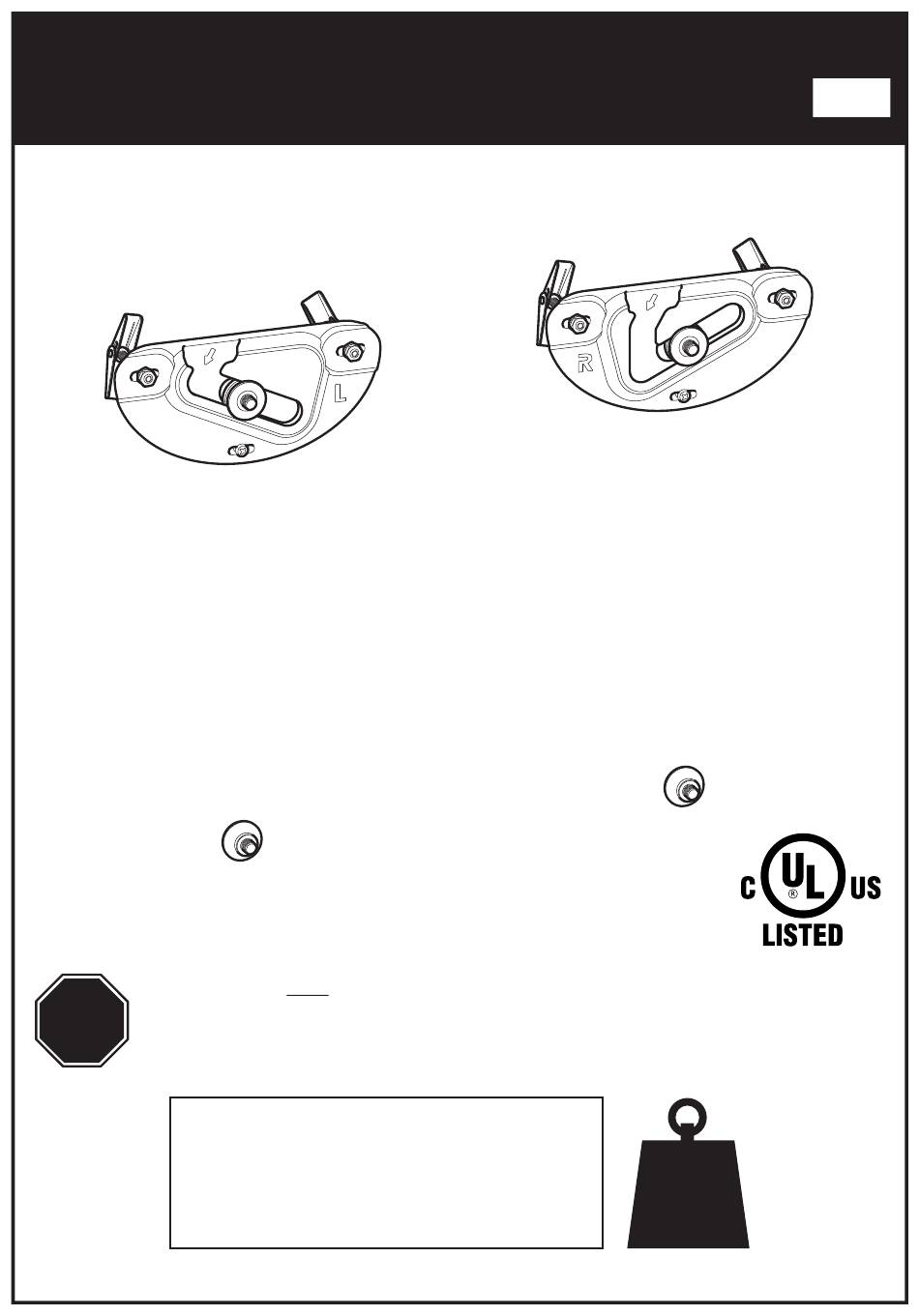

- Page 1 Read through ALL instructions before commencing installation. If you have any questions about this product or issues with installation STOP contact the customer services help line before returning this product to the store. See ca.orbitalholdings.com/p/RML8300-F CUSTOMER SERVICES HELP LINE NUMBER: 121lbs 1-800 601 8450 (USA) 55kg Orbital Holdings Inc.
-
Page 2: Assembly Overview
Assembly Overview Fit Screen Hangers to TV Fitting the Wall Bracket Hanging the TV... -
Page 3: Outils Recommandés
It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a sub standard wall. - Page 4 Boxed Parts...
- Page 5 TV Screws, Reducers and Spacers Measure the TV fixing holes Width and Height TV Fixing 200mm Holes to infinity If width X is less than or height Y is less than STOP installation now and contact the customer help line 100mm to infinity M4 =...
- Page 6 Fit Screen Hangers to TV Once you have established which screw diameter you need for your TV you will need to choose which wall spacing you require. Check the back of your TV and use the OPTION that fits your TV. Please see page opposite for more details.
- Page 7 OPTION 1 12mm Wall Space Top Fixings Bottom Fixings OPTION 2 20mm Wall Space. Not applicable for M4 fixings G1 TopFixings Bottom Fixings OPTION 3 40mm Wall Space. Not applicable for M4 fixings G1 Top Fixings Bottom Fixings...
- Page 8 Assemble Positioning Template Determine Bracket Hole Centers Lay the template on the back of the TV and follow the instructions below. Place the top row of holes on template U1 over hangers C. Mark off the top fixing centres The center line of the template represents Top row holes...
- Page 9 Marking Wall For Drill Points Before marking the wall, Represents the determine the wall type that top of your TV. you have (i.e. Solid Wall/ Dot & Dab/ Plasterboard/ Wood Stud/Metal Stud). Ensure the drilling area is free from mains services (Gas/Electric/Water).
-
Page 10: Fitting The Wall Bracket
Fitting the Wall Bracket Use the correct fixings for your wall type. Mixing fixing screws may be required for installations that span different wall types. DO NOT OVER TIGHTEN SCREWS. Drywall Solid Wall Min supporting surface specification:- ½” thick drywall, mounted on 1½” x 3½” wood stud at 10mm (25/64") 16"... - Page 11 Metal Stud Wood Stud Min supporting surface specification:- Min supporting surface specification:- ½” thick drywall ½” thick drywall 18mm (3/4") 18mm (3/4") 3.5mm (1/8") Ensure hole is (9/64") in the middle of the wood stud 75mm (3") 0.6mm (0.025") MIN stud thickness Use Drywall Fixing H Use Drywall Fixing H Self...
- Page 12 Hanging the TV Hanging the TV is a two person job. Present hangers (on the back of the TV) to the opening on brackets A & B. Slide down and across into place. Ensure both hangers are fully engaged. If cables from the TV prevent the TV resting against the wall then an alternative hanger configuration will be required (see section 2).
