Memphis Shades 2321-0053 Mounting Instructions

2321-0053

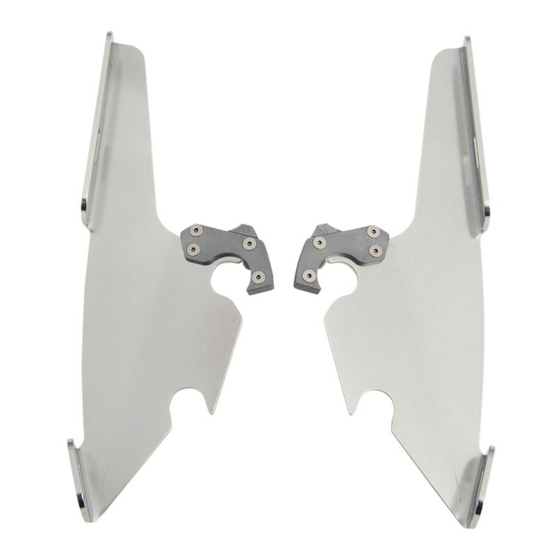

FATS/SLIMS PLATE ONLY HONDA VT750 SHADOW AERO DETACHABLE
Read and follow these directions carefully.
During installation, make certain that when turning the
forks, there can be no interference with wiring or cables
AND, that the windshield can not hit the gas tank,
through the windshield's full range of adjustment.
This is a detachable windshield, ALWAYS make sure the
Locking Mechanism is Fully Engaged after installing the
windshield!
The improper installation of this kit and related compo-
nents could result in serious injury or death.
1.Cover gas tank and front fender with towels to avoid
damage during installation.
2. Install the two mounting plates onto the windshield using
the bottom bolt and the third bolt up. Discard the Nylon
Washers. The small tab goes at the bottom, larger tab goes up.
NOTE: Tabs will point away from the headlight when prop-
erly installed. (see Figure 1 and Figure 4)
3. Install the windshield by placing the lower slots into the
lower mounting bushings. Slip the upper slots into the upper
mounting bushings and gently but firmly seat the slots into
place. Lock the locking mechanism into place. (see figure 3 and 4)
4. Tighten all mounting bolts. Adjust the height, angle and
alignment of the windshield and tighten ALL bolts.
Note: This is a detachable windshield, ALWAYS make
sure the Locking Mechanism is Fully Engaged after in-
stalling the windshield! (see figure 4)
MOUNTING INSTRUCTIONS
Figure 1
Install brackets
tabs out, using
the first and
third bolt from
the bottom.
Face mounting
tabs away from
the headlight.
IMPORTANT CARE AND CLEANING INSTRUCTIONS
Memphis Shades Windshields and Lowers are made of
Lucite® acrylic, and will last for years with proper care.
Clean your windshield with plenty of soapy water — mild
dishwashing liquid is best — and a soft cotton cloth. Use your
bare hand to feel and dislodge bugs, or cover with a wet soapy
towel and let it soak. Don't use paper towels and don't scrape
with anything. Small scratches can be removed with NOVUS
# 2.
NEVER use any glass cleaning products, petroleum based
chemicals, or cleaning agents with ammonia, bleach or any
other harsh chemicals. This includes (but not limited to)
RainX, brake fluid, acetone, paint thinner, benzene and
gasoline. "If it hurts your nose, it will hurt the plastic."
Glass cleansing agents will cause severe damage
to your windshield, and will void your warranty.
NOTE: At certain times of the day the Sunlight can reflect
off the curvature of a windshield and cause extreme heat
build-up on motorcycle instruments and instrument panel.
Take care when parking. Park facing the sun, place an opaque
object over the instruments or adjust the windshield to avoid
reflections.
Figure 3
Figure 2
MEM8866 01-01-08
