Screw-Mounting

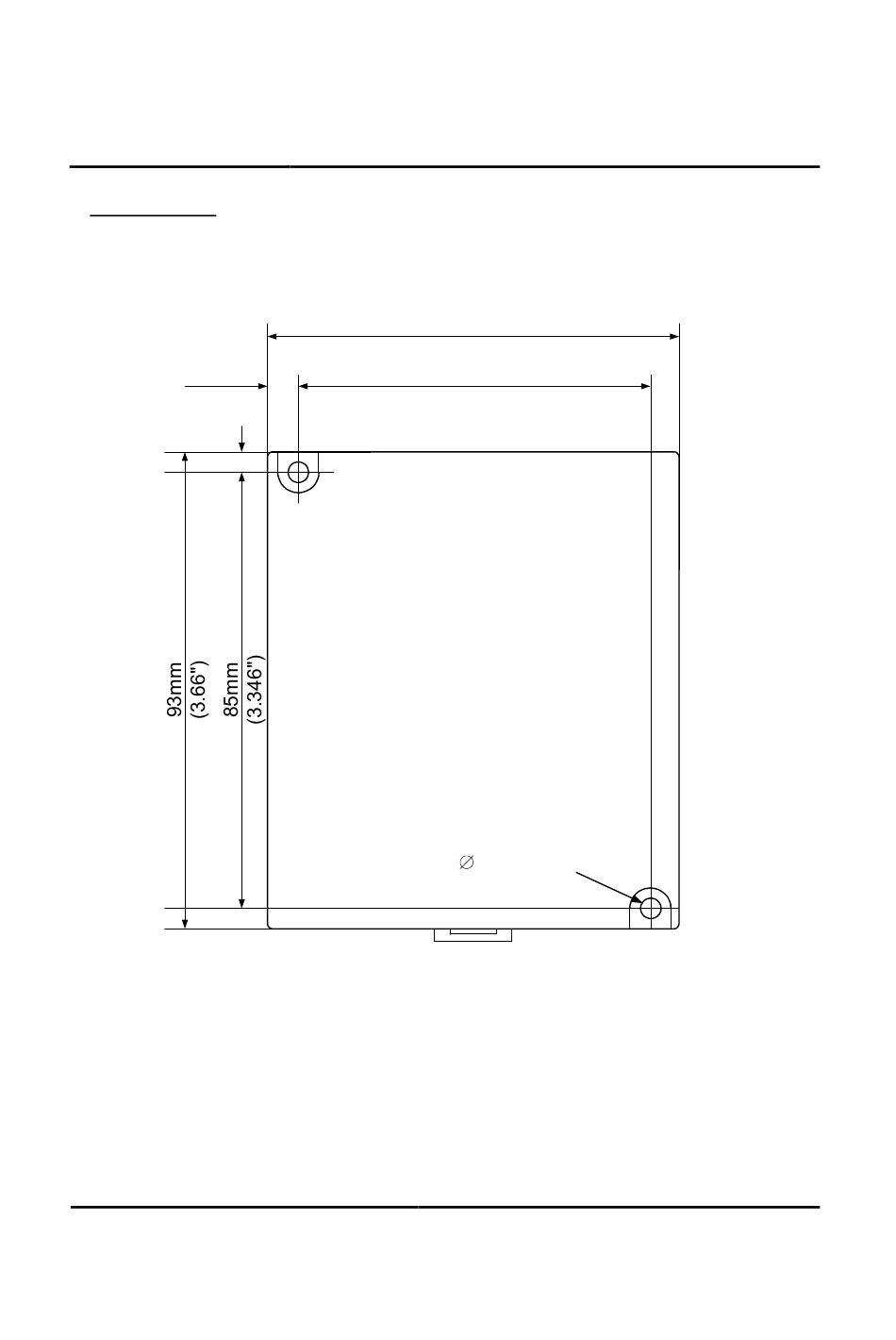

The figure below is not drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
5.8mm
(0.228")
4mm
(0.16")
Unitronics
EX- RC1
80mm
(3.15")
68.4mm
(2.693")
4mm (x2)
(0.16")
R e m o t e I / O Ad a p t e r
