12/09

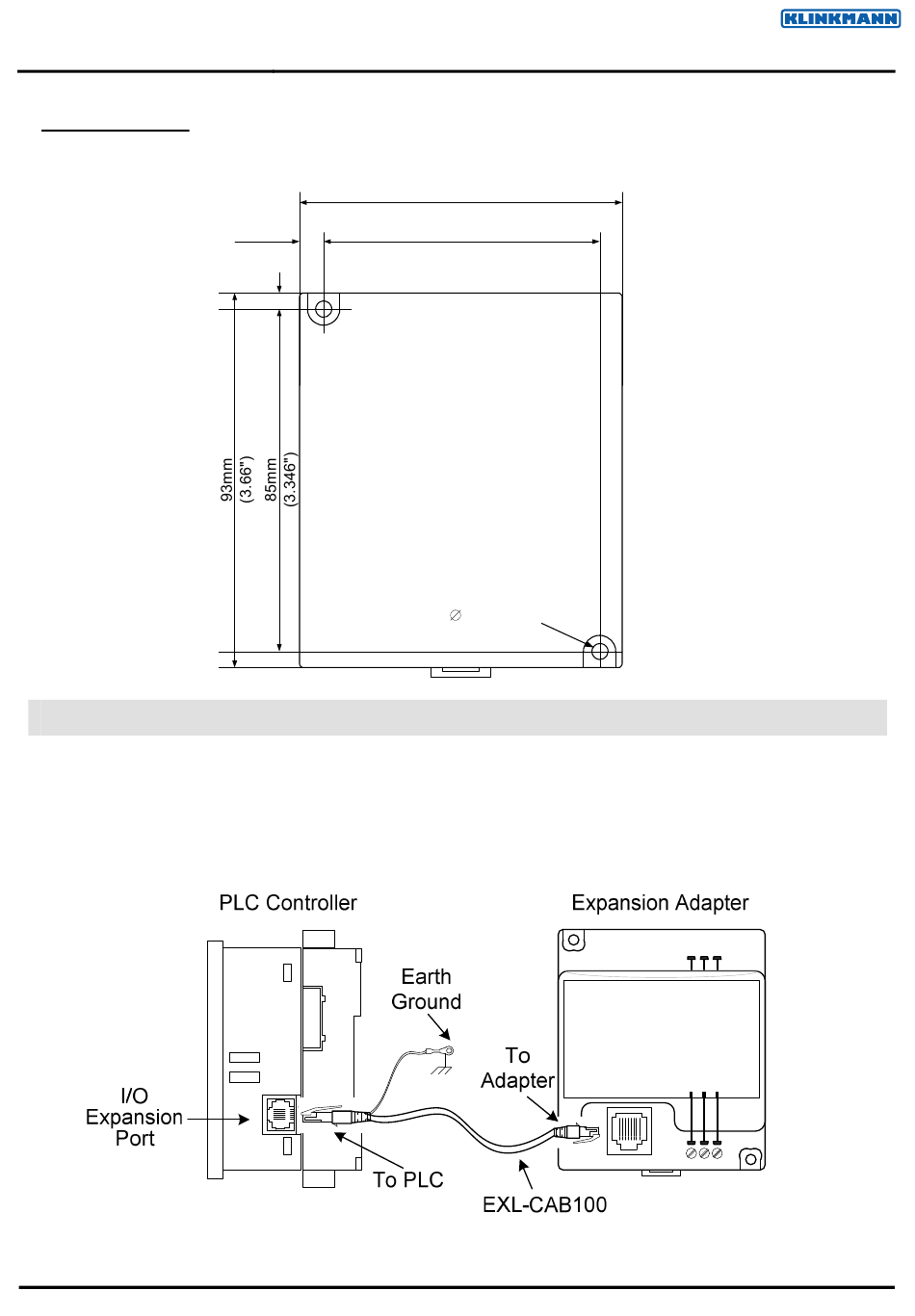

Screw-Mounting
The following figure is not drawn to scale. Mounting screw type: either M3 or NC6-32.
Connecting the OPLC to the EX-A2X
Use the communication cable to connect the module’s PLC expansion port to the PLC.
Take care to connect the correct cable. The connectors of this cable are housed in yellow insulation. Note that
one end is marked To PLC and the other To Adapter; insert accordingly.
The module is supplied with a 1-meter cable, part number EXL-CAB100. Other cable lengths are also available.
Use only an original Unitronics cable and do not make any changes to it.
Unitronics
EX- A2X
5.8mm
(0.228")
4mm
(0.16")
I / O E x p a n s i o n M o d u l e Ad a p t e r , I s o l a t e d
80mm
(3.15")
68.4mm
(2.693")
4mm (x2)
(0.16")
5 / 2011
www.klinkmann.com
3
