One-Way
T
Page
R
Control
Unit
1Volt RMS
Max
T R
IN

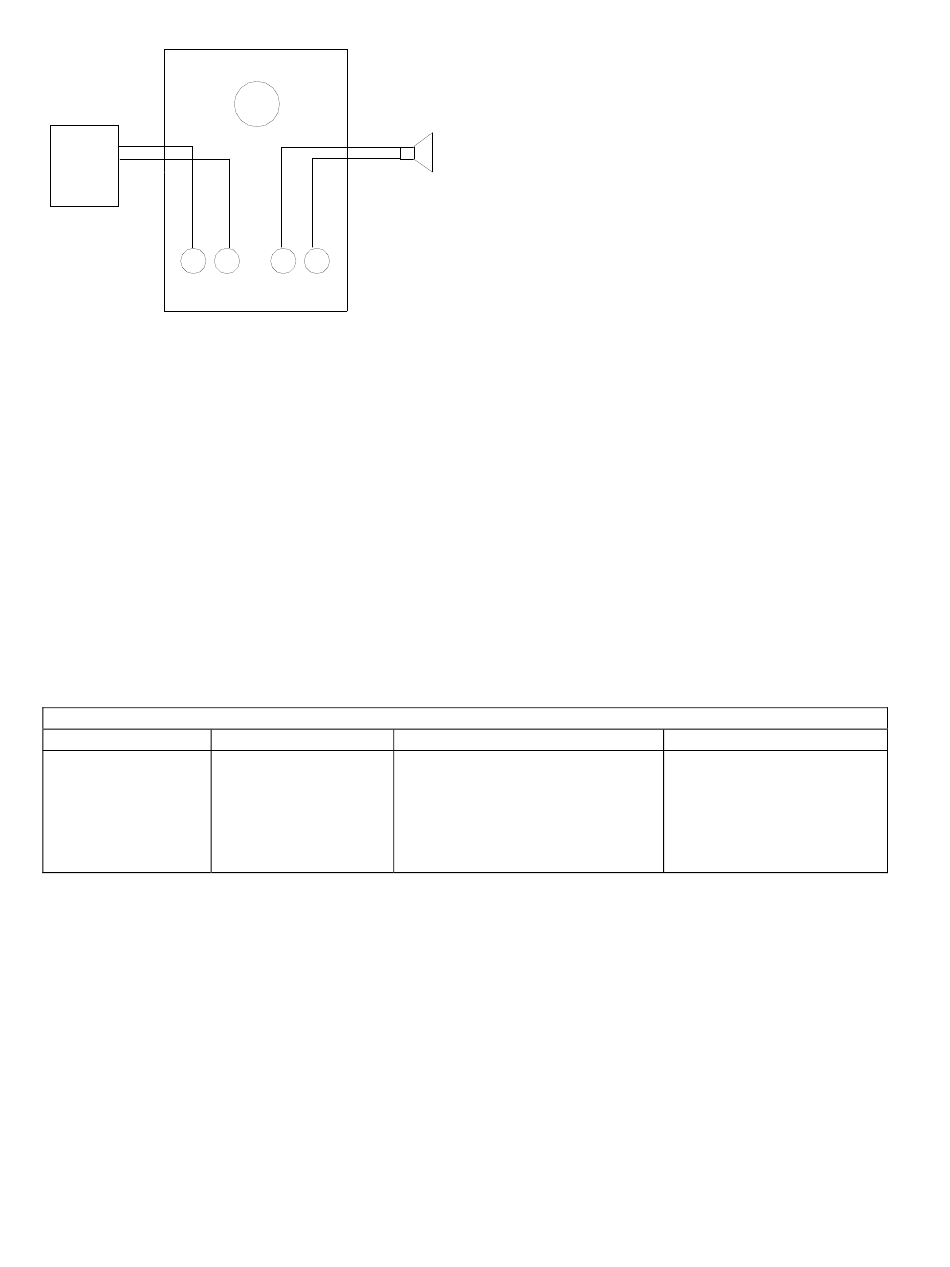

Figure 1.
Problems
No audio output to Open input path.
speaker.
Open output path.
V-1092
T
R
ONE-WAY
AMPLIFIED
SPEAKERS
T R
OUT
TABLE 1 - TROUBLESHOOTING CHART
Possible Causes
Place handset across V-1092
input terminals; No audio
present.
Place handset across speaker
terminal; No audio present.
TECHNICAL ASSISTANCE
When trouble is reported, verify the unit is
properly connected and there are no broken
connections leading to this unit.
Assistance in troubleshooting is available from the
factory. When calling, you should have a VOM
and a test set and call from the job site.
Call (540) 563-2000 and press 1 for
Technical Support or visit our website at
http://www.valcom.com.
VALCOM equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating your
company name, address, phone number, contact
person and the nature of the problem. Send the
unit to:
Repair and Return Dept.
5614 Hollins Road
Roanoke, VA 24019-5056
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty
Verifications
2
Valcom, Inc.
Possible Solutions
Check cabling and cross-
connections to V-1092.
Check cabling and cross-
connections from V-1092
to speaker.
947092
