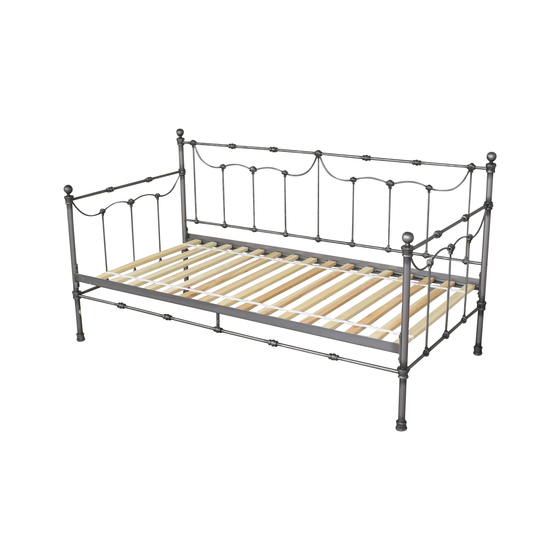

Pottery Barn Savannah Daybed Assembly Instructions

• Please read all instructions before assembly.
• For your safety, assembly by two people is recommended.
• Save all packing materials until assembly is complete to avoid the accidental
discarding of smaller parts or hardware.
Parts Included:
•
(2) Side panels – A (Box 1)
•
(1) Back panel – B (Box 1)
•
(2) Rails – C (Box 1)
•
(1) Front bottom rod – D (Box 1)
•
(1) Wood slat roll – E (Box 2)
•
(1) Trundle (Separate box) OPTIONAL

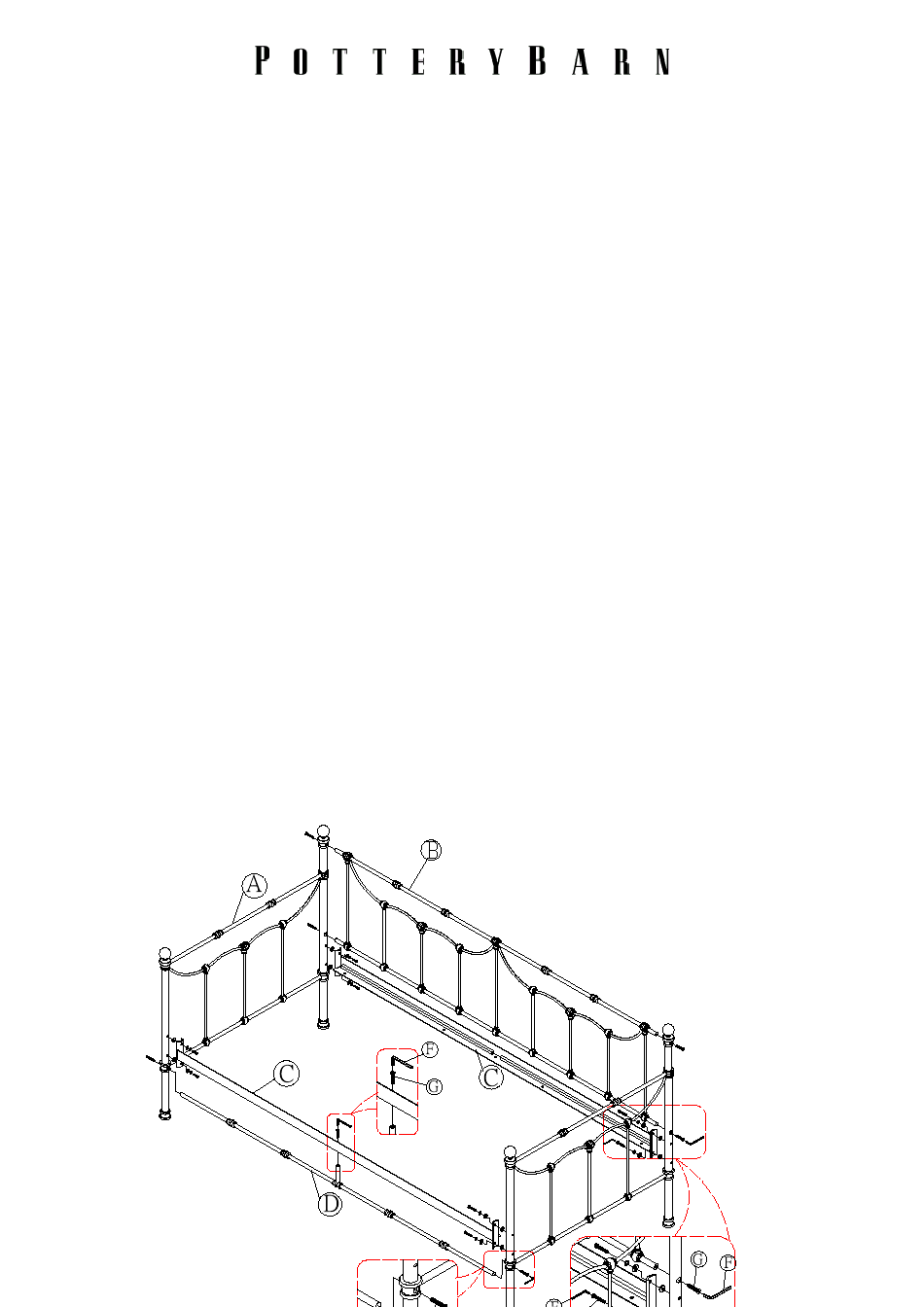

1. Align the rods of the back panel (B) to the holes on the back posts of the side
panels (A). Attach using the medium bolts (G) and loosely tighten with the Allen key
(F).
2. Align the front bottom rod (D) to the lower holes on the front posts of the side
panels. Attach using the long bolts (N) and loosely tighten with the Alley key.
3. Assemble the rails (C) to the posts by using the rubber washers (L), flat washers
(H), lock washers (I) and short bolts (M). Tighten with the Allen key. Use the
medium bolt to secure the front bottom rod to the front rail and tighten with the
Allen key. Tighten all the post connections.
Savannah Daybed
Assembly Instructions
Hardware Included (Box 1):
•
(1) Allen key: diam 4mm – F
•
(13) Medium bolt diam 6mm x 31mm
– G
•
(16) Flat washers: diam 6mm - H
•
(16) Lock washers: diam 6mm - I
•
(8) Nuts: diam 6mm - J
•
(1) Wrench – K
•
(8) Rubber washers: diam 24 x
4mm - L
