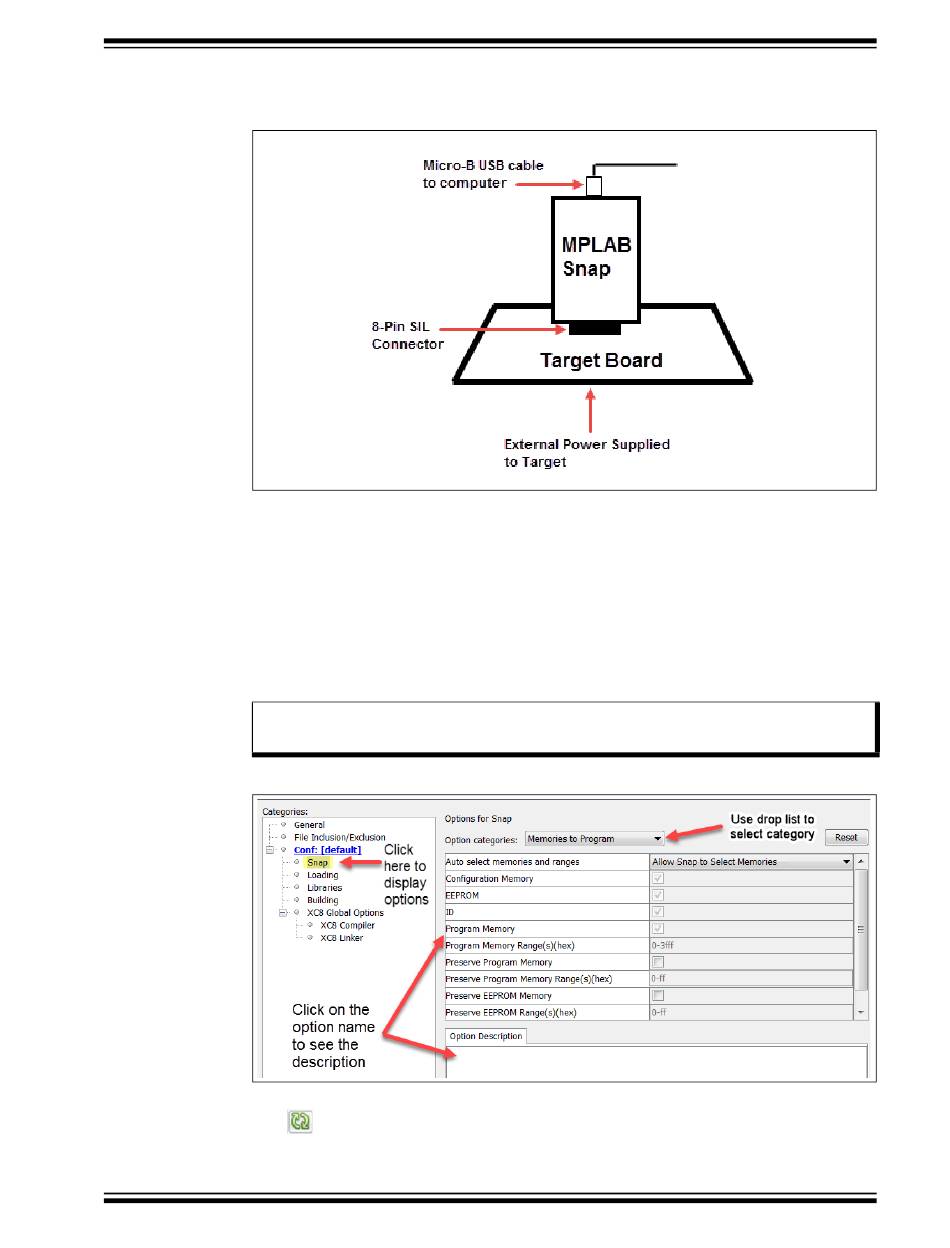

The following figure shows a typical connection for the MPLAB Snap debugger.
FIGURE 1-3:
DEBUGGER OPTIONS SELECTION
The MPLAB Snap project properties available in MPLAB X IDE are a subset of the
MPLAB PICkit 4 options.
Debugger options are set in the Project Properties dialog of MPLAB X IDE. Click on
Snap under "Categories" to display the "Options for Snap" (see
"Options categories" drop-down list to select various options. Click on an option name
to see its description in the Option Description box below. Click to the right of an option
name to select or change it.
Note:
FIGURE 1-4:
After setting the options, click Apply or OK. Also click the Refresh Debug Tool status
icon
2018 Microchip Technology Inc.
®
MPLAB
MPLAB SNAP CONNECTIONS
The available option categories and the options within those categories are
dependent on the device you have selected.
MPLAB X IDE OPTIONS FOR MPLAB SNAP
in the MPLAB X IDE dashboard display to update any changes made.
Snap In-Circuit Debugger
Figure
1-4). Use the
DS50002787A-page 7
