Additional Items Needed - Microchip Technology MPLAB Snap Information Sheet

MPLAB SNAP IN-CIRCUIT DEBUGGER COMPONENTS
The components of the MPLAB Snap In-Circuit Debugger system are:
• an 8-pin SIL connector
• a Micro-B USB connector
• two LEDs
• Emergency Recovery Jumper (not populated)

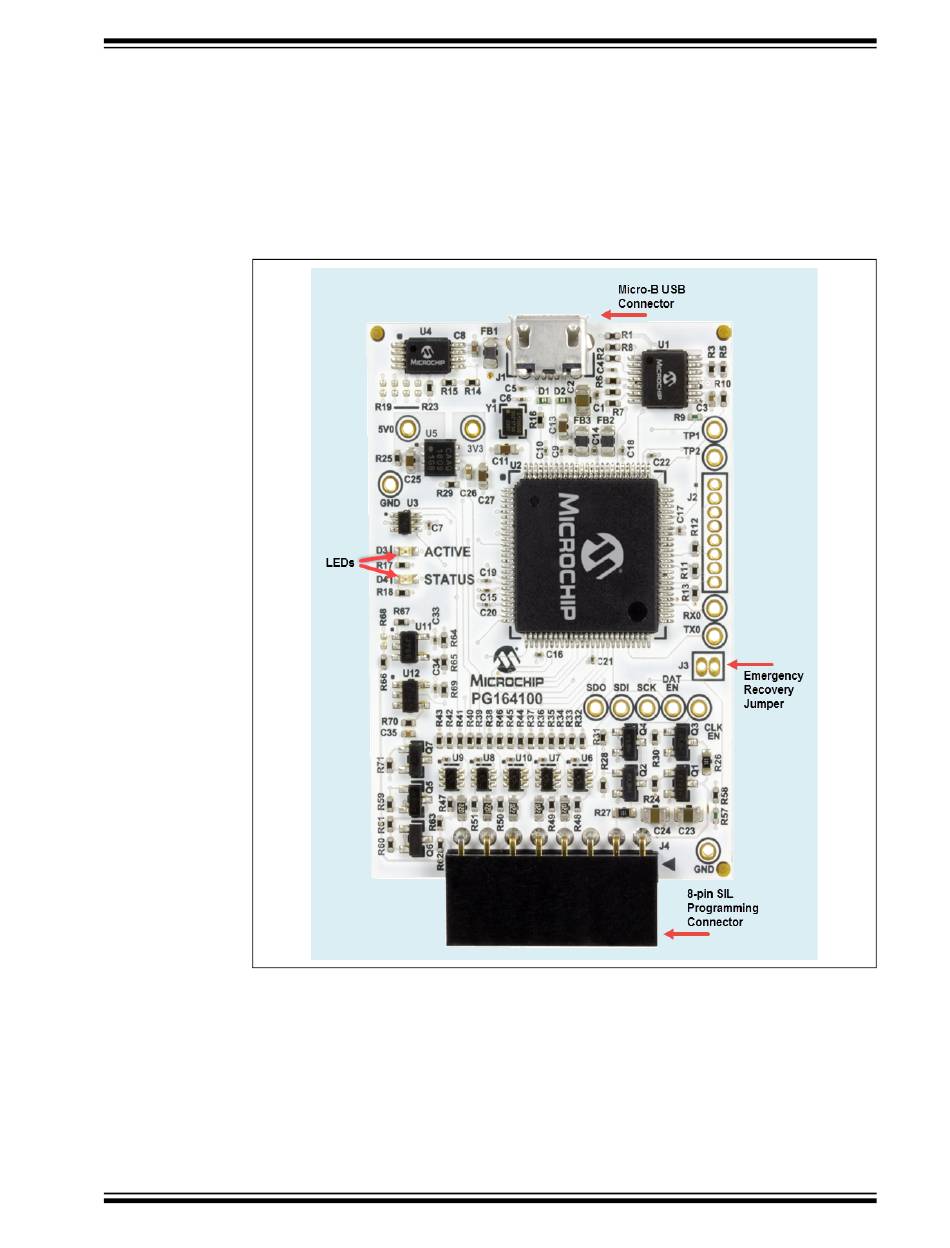

FIGURE 1-1:

ADDITIONAL ITEMS NEEDED

To use the MPLAB Snap In-Circuit Debugger, you will need to supply:
• a full-featured Micro-B USB cable (data and power), no longer than 1.5 meter, to
connect to a computer (for example, the Microchip Part Number
ATUSBMICROCABLE-XPRO)
• target board
• power supply for target board
