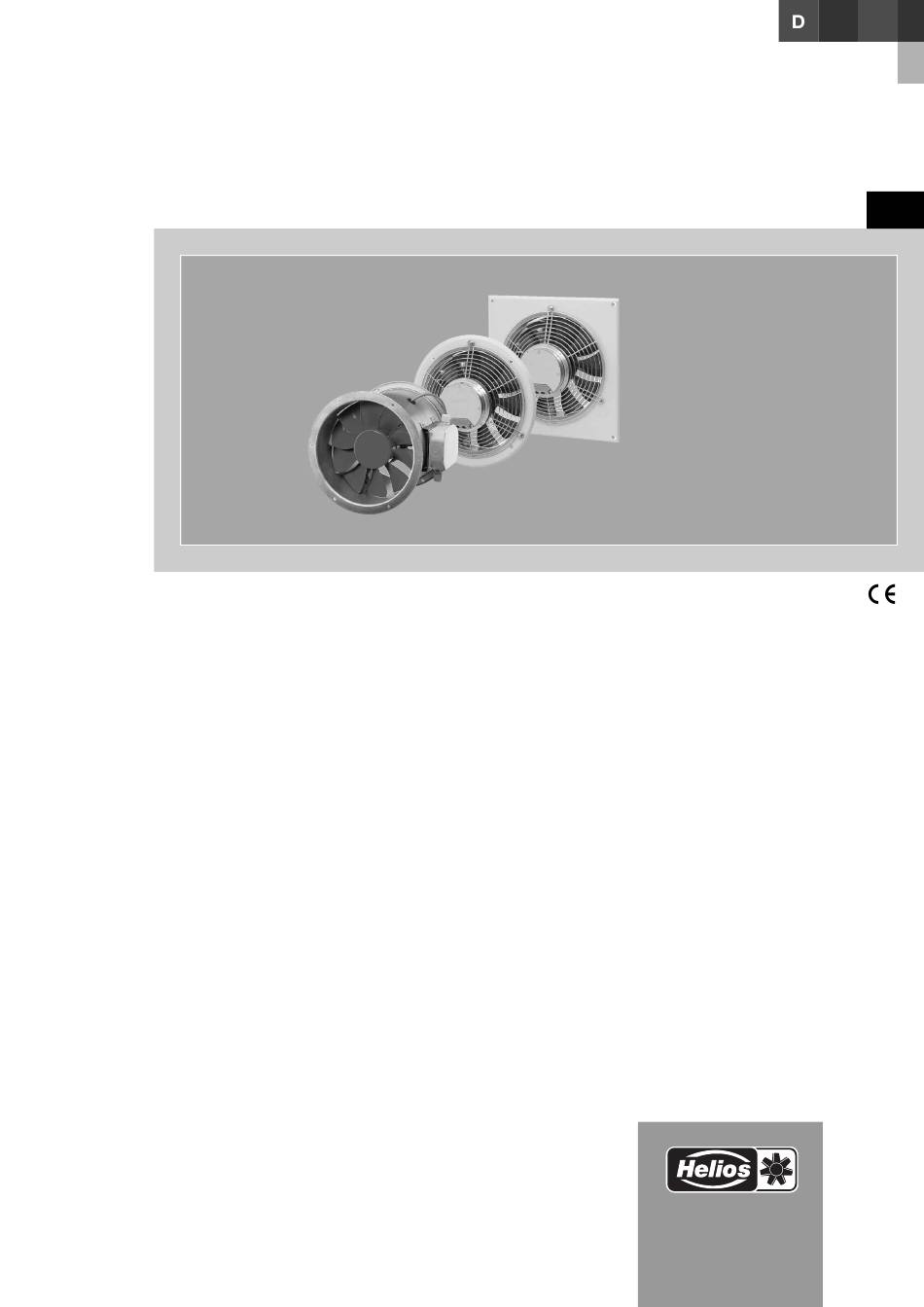

Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Wichtige Informationen KAPITEL 1 Zur Sicherstellung einer einwandfreien Funktion und zur eigenen Sicherheit sind alle nachstehenden Vorschriften genau durchzulesen und zu beachten. ALLGEMEINE HINWEISE Dieses Dokument ist Teil des Produktes und als solches zugänglich und dauerhaft aufzubewahren um einen sicheren Betrieb des EC-Ventilators zu gewährleisten.
Alle Ausführungen dieser Dokumentation müssen beachtet werden, sonst entfällt die Gewährleistung. Gleiches gilt für Haftungsansprüche an Helios. Der Gebrach von Zubehörteilen, die nicht von Helios empfohlen oder angeboten wer- den, ist nicht statthaft. Eventuell auftretende Schäden unterliegen nicht der Gewährleistung. Veränderungen und Umbauten am Gerät sind nicht zulässig und führen zum Verlust der Konformität, jegliche Gewährleistung und Haftung...
(Partikelgröße < 10 µm), wenig aggressiver und feuchter Luft, in gemäßigtem Klima und im Bereich ihrer Leistungskennlinie geeignet, siehe Helios Verkaufsunterlagen / Internet. Die zulässige Medium- u. Umgebungstemperatur beträgt -30 °C bis +40 °C. Gegebenenfalls abweichende Temperaturen sind dem Typenschild zu entnehmen. Die EC-Axial-Hochleistungs- ventilatoren sind als Komponenten einer ortsfesten Lüftungsanlage für Gebäude konzipiert.
Volumenstrom in m³/h 1.13 Typenschild / Technische Daten Die Produktspezifischen technischen Daten sind dem Typenschild zu entnehmen. Nachfolgend sind die einzelnen Angaben anhand eines Beispiels erläutert. Abb.2 HELIOS VENTILATOREN 78056 Villingen-Schwenningen Germany Art-Nr. 4880/001 PC 54012 Type: HQW EC 315 A Ser.Nr.
355 A Drehmoment auf den Rotor) – über Motor blasend Jumper dürfen nur von Helios gesetzt werden! VORSICHT Änderung der Betriebsart sowie der Drehrichtung ist nicht zulässig! – Auslieferzustand Bei den EC-Ventilatortypen HQ.. EC, HW.. EC, HRF.. EC 250 A, 315 A, 355 A ist im Auslieferzustand die Betriebsart "Konstant Drehmoment"...
Abb.5 Der Einsatz von Fremdfabrikaten kann, v.a. bei elektronischen Geräten, zu Funktionsproblemen, Zerstörung WARNUNG des Reglers und/-oder des EC-Ventilators führen. Bei Einsatz seitens Helios nicht freigegebener Regel- und Steuergeräte entfallen Garantie und Haftungsansprüche! Steuerung mehrerer EC-Ventilatoren mit einem Potentiometer Zur Ansteuerung mehrerer EC-Ventilatoren über den Sollwerteingang “0-10V“, muss die 10VDC - Spannungsquelle die Summe aller Sollwerteingänge-Bürdenströme zur Verfügung stellen.
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Motorschutzeinrichtung Alle EC-Axial-Hochleistungsventilatoren sind mit energiesparenden, wartungsfreien EC-Außenläufermotoren (Schutzart für die Typen ... 250 A, 315 A und 355 A IP 44, bzw. 355 B bis 500 B IP 54, funkstörungsfrei, kugelgelagert) mit höch- stem Wirkungsgrad ausgerüstet.
Page 10
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Diagnose zum LED Code Relais K1 * Ursache / Reaktion des Controllers / „Blink“-Code >> Erklärung >> Behebung abgefallen, 11 - Keine Netzspannung Netzspannung vorhanden? 14 unterbrochen >> Gerät schaltet „ Aus“ und bei Spannungswiederkehr automatisch wie- der „...
Page 11
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Diagnose zum LED Code Relais K1 * Ursache / Reaktion des Controllers / „Blink“-Code >> Erklärung >> Behebung 11 x abgefallen, 11 - Fehler Motorstart Ist es möglich den Motor nach der 14 unterbrochen Wenn ein Startbefehl anliegt (Freigabe vor- Fehlermeldung in die Solldrehrichtung...
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Montage – Einbau Es sind die in Kapitel 1, Punkt 1.2 aufgeführten Sicherheitshinweise zu beachten! WARNUNG Der EC-Ventilator wird serienmäßig als komplette Einheit, d.h. anschlussfertig geliefert. In kondensationsfreier Umgebung ist der Einbau in jeder Lage möglich.
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Instandhaltung und Wartung KAPITEL 4 Es sind die in Kapitel 1, Punkt 1.2 aufgeführten Sicherheitshinweise zu beachten! – Grundsätzlich sind die Geräte wartungsfrei, es ist keine Benutzer-Wartung vorgesehen. Alle dennoch notwendigen INSTANDHALTUNG UND Wartungsarbeiten sind von autorisiertem Fachpersonal vgl.
Verschmutzung reinigen unzureichende Nachströmung Nachströmungsöffnungen erweitern Ersatzteile Es sind ausschließlich Helios Originalersatzteile zu verwenden. ACHTUNG Alle Reparaturen dürfen nur von autorisiertem/en Fachpersonal/-Betrieben durchgeführt werden. Stilllegen und Entsorgen Es sind die in Kapitel 1, Punkt 1.2 aufgeführten Sicherheitshinweise zu beachten! WARNUNG Vor der Demontage ist der EC-Ventilator allpolig vom Netz zu trennen! –...
Page 16
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Abmessungen KAPITEL 5 Baureihe HQ.. EC ... ABMESSUNGEN Type Ø A Ø B i.L HQW EC 250 A HQW EC 315 A HQW EC 355 A HQW EC 355 B HQW EC 400 A HQW EC 400 B HQW EC 450 A...
Montage- und Betriebsvorschrift EC-Axial-Hochleistungsventilatoren HQ.. EC / HRF.. EC / HW.. EC Technische Zuordnung der Zubehör-Komponenten Anzahl der Ventilatoren mit: PU/A PU/A SU/A-3 10 EUR EC ETR / EDR Typen aus der 10 V aus der 10 V aus der 10 V aus der 10 V aus der 10 V Ventilator-...
Page 24
HELIOS Ventilatoren GmbH + Co KG · Lupfenstraße 8 · 78056 VS-Schwenningen HELIOS Ventilateurs · Le Carré des Aviateurs · 157 av. Charles Floquet · 93155 Le Blanc Mesnil Cedex CH HELIOS Ventilatoren AG · Tannstrasse 4 · 8112 Otelfingen GB HELIOS Ventilation Systems Ltd.
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Important information CHAPTER 1 In order to ensure complete and effective operation and for your own safety, all of the following instructions should be read carefully and observed.
All versions of this documentation must be observed, otherwise the warranty shall cease to apply. The same applies to liability claims against Helios. The use of accessory parts, which are not recommended or offered by Helios, is not per- mitted. Any possible damages are not covered by the warranty. Changes and modifications to the unit are not permitted and lead to a loss of conformity, and any warranty and liability shall be excluded in this case.
– Normal use: The EC axial high-performance fans are suitable for conveying normal or slightly dusty (particle size < 10 µm), less aggressive and humid air, in moderate climates and in the range of their performance curves, see Helios sales documents / internet.
1.13 Type plate / Technical data The product-specific technical data can be found on the type plate. The individual data is described below using an example. Fig.2 HELIOS VENTILATOREN 78056 Villingen-Schwenningen Germany Art-Nr. 4880/001 PC 54012 Type: HQW EC 315 A Ser.Nr.
Rotation direction left (with 355 A view to the rotor) – via motor outlet Jumpers must only be set by Helios! CAUTION Changing the operating mode and the rotation direction is not permitted! – Default condition With regard to the EC fan types HQ.. EC, HW.. EC, HRF.. EC 250 A, 315 A, 355 A, the operating mode "Constant torque"...
If the current of a EC power supply is not sufficient, a sufficient external 10VDC can be provided by the customer (galvanically disconnected from the mains). Alternatively, the module “EUR EC” by Helios can be used for the various control tasks.
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Motor protection device All EC axial high-performance fans are equipped with energy-saving, maintenance-free EC external rotor motors (pro- tection class for types ... 250 A, 315 A and 355 A IP 44, or 355 B to 500 B IP 54, interference-free, ball bearing- mounted) with the highest efficiency factor.
Page 34
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC „Blink“ code diagnostics LED code Relay K1 * Cause / Controller response / >> Explanation >> Repair Inactive, 11 No mains voltage Mains voltage available? 14 interrupted >>...
Page 35
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC „Blink“ code diagnostics LED code Relay K1 * Cause / Controller response / >> Explanation >> Repair 11 x Inactive, 11 - Motor start error If it is possible to start the motor in the 14 interrupted If a start command is present (enabled and set...
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Design CHAPTER 3 Series HQ.. EC ... / HW.. EC ... The fan types HQ.. EC (Fig.7) / HW.. EC (Fig.8) consist of a mounting plate/ring with integrated inlet nozzles, an EC mo- INSTALLATION tor which is mounted to the protection guard (pursuant to DIN EN ISO 13857) and a dynamically balanced impeller ac- cording to ISO 1940 T1, class G 6,3.
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Installation – Assembly The safety instructions specified in Chapter 1, section 1.2 must be observed! WARNING The EC fan is delivered as a complete unit as standard, i.e. ready for connection. Installation is possible in any position in condensation-free environments.
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Servicing and maintenance CHAPTER 4 The safety instructions specified in Chapter 1, section 1.2 must be observed! – The units are basically maintenance-free, there is no provision for user-maintenance. Nevertheless, all necessary SERVICING AND maintenance work must be carried out by authorised specialist personnel cf.
Clean Insufficient backflow Enlarge backflow openings Spare parts Only original Helios spare parts are to be used. ATTENTION Repairs may only be carried out by authorised specialist personnel/companies. Standstill and disposal The safety instructions specified in Chapter 1, section 1.2 must be observed!
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Dimensions CHAPTER 5 Series HQ.. EC ... DIMENSIONS Type Ø A Ø B i.L direction of flow HQW EC 250 A HQW EC 315 A HQW EC 355 A HQW EC 355 B HQW EC 400 A...
0-10V Signal von z.B. PU/A 10 Art.Nr. 1734/1735 oder EUR EC Art. Nr. 1347 85321 002 SS-1046 24.09.14 * Jumpers may only be set by Helios! SS-1047 / SS-1048 HQW EC HQW EC ... HWW EC HWW EC ...
Installation and Operating Instructions EC axial high-performance fans HQ.. EC / HRF.. EC / HW.. EC Technical allocation of accessory components Number of fans with: PU/A PU/A SU/A-3 10 EUR EC ETR / EDR Typen from the 10 V from the 10 V from the 10 V from the 10 V from the 10 V...
Page 48
HELIOS Ventilatoren GmbH + Co KG · Lupfenstraße 8 · 78056 VS-Schwenningen HELIOS Ventilateurs · Le Carré des Aviateurs · 157 av. Charles Floquet · 93155 Le Blanc Mesnil Cedex CH HELIOS Ventilatoren AG · Tannstrasse 4 · 8112 Otelfingen GB HELIOS Ventilation Systems Ltd.
