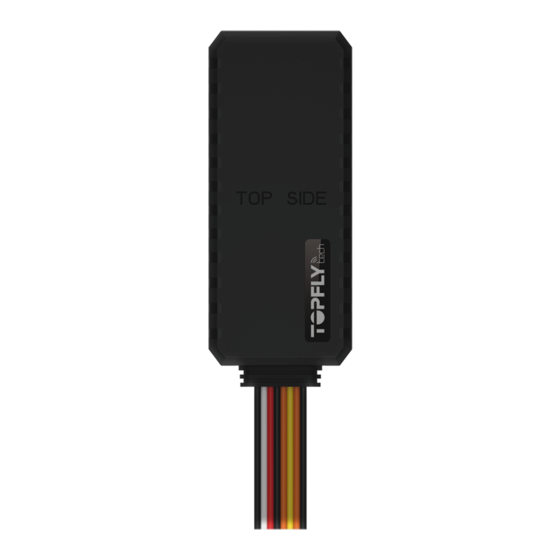

- Page 1 TOPFLYtech TLW1-8A/E Vehicle GPS Tracker User Manual 20200908...
- Page 2 Thanks for your purchasing of the high-quality GPS tracker from TOPFLYtech. Please read this user manual carefully before installation and operation. Information in this manual is the property of TOPFLYtech. Changes to the specifications and features in this manual may be made by TOPFLYtech without prior notice.
-
Page 3: Table Of Contents
EARTBEAT ETTING 11.5 GMT S .............................. 12 ETTING 11.6 PIN S ..............................13 ETTING 11.7 ............................. 13 ANAGER ETTING 11.8 ............................13 ANAGER ELETE 11.9 ............................. 13 ANAGER 11.10 ..........................13 NTITHEFT ETTING Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... - Page 4 HECKING 11.15 ) ......................... 15 ELAY ONTROL 11.16 ) ..................15 OOGLE EARCH LREADY UILT 11.17 PIN ............................ 15 ORGOT THE OPTIONAL ACCESSORIES LIST ....................16 FOTA NOTIFICATION ........................17 FCC WARNING..........................17 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
-
Page 5: Quick Reference Of Connection Diagram
(Digital output1) Orange SOS Button Black Connector1 Connector3 Connector2 2A Fuse Fuse Fuse Box Black Orange Vehicle Battery Yellow 12V or 24V START Relay Position 12V or 24V White Cut off Engine Starter Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 6: Product Specifications
87mm*35mm*13.5mm Weight Backup Battery Li-Polymer 200 mAh/ 3.7V Operating Voltage 7V to 32V DC Operating Temperature -30℃ ~ +80℃ (-22°F ~ 176°F) Storage Temperature -40℃ ~ +85℃ (-40°F ~ 185°F) Air Interface Protocol Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 7: Standard Accessories Introduction
Solid on Positioned Note: Indicator lights will go out automatically after the tracker turn on for 10 minutes. 5. Installation Guide 5.1 SIM Card Pre-Installation Note 5.1.1 SIM card data service should be enabled. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 8: Installation
Refer to frequently used operation commands in this manual 8. Tracker Operation 8.1 Power on and off 8.1.1 Power on: Insert a SIM card and connect the tracker to external power. It will turn on automatically. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 9: Location Search
9.3 Unable to locate 9.3.1 Is the top side (with TOP SIDE logo on) facing upwards without shielded by Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 10: Location Drift
Current PIN Manager Code Manager Delete MANAGERD, Manager List MANAGERL, Current PIN Current PIN Antitheft Status(On/Off) Antitheft Setting ANTITHEFT, Current PIN Distance Towing Setting DRAG, ,Current PIN Upper Speed Limit Speed Limit Setting SPEED Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 11: Apn Setting
Current PIN,Server Domain Name or IP,Port Number# Server Domain Name or IP: Range: Letters, Numerals and Symbols Length Limit: 1~128 Port Number: Range: Positive Integer Length Limit: 0~65535 Note: Tracker will return “SET IP OK” when received this command. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 12: Upload Interval Setting
Default: 5 minutes Note: Tracker will return “SET HBT OK” when received this command. 11.5 GMT Setting GMT, Current PIN,Time Zone# Time Zone: Range: Floating point Range Limit: -12.0 ~ 12.0 Default: 8.0 Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 13: Pin Setting
Note: Tracker will return “SET MANAGERD OK” when received this command. 11.9 Manager List MANAGERL, Current PIN# Note: 1) Tracker will return “SET MANAGERL OK” when received this command. 2) All the manager phone numbers will be listed. 11.10 Antitheft Setting Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 14: Towing Setting
2) Set “Upper Speed Limit” to 0 will turn off speed alarm. 11.13 SMS Tracking Mode Setting TRACK, Current PIN,SMS Tracking Time# SMS Tacking Time Range: Range: Positive Integer Range limit: 0, 1, 2 ~ 65535 Minutes Default: 0 Note: Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 15: Sim Card Balance Checking
1) If the manager phone number has been set, only the manager can use “MYSELF#”. If no manager setting, the tracker will return the IMEI and current PIN when it received “MYSELF#” from any mobile phone. 2) This command can be used to retrieve password. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 16: Optional Accessories List
TA-34 （RS232 & Analog） TA12 BLE Tag TA20 External TPS Suite (BLE) TA22 Internal TPS Suite (BLE) BLE 5.0 Wireless Temperature TSTH1-B and Humidity Sensor BLE 5.0 Wireless Door and TSDT1-B Temperature Sensor Shenzhen TOPFLYtech Co., Limited. All Rights Reserved... -
Page 17: Fota Notification
It can save clients the time and effort of updating firmware manually. Please note that this feature is enabled in default. If you want to turn it off, please contact with TOPFLYtech. If this feature is disabled, the fw update only can be done by sending upgrade command manually 14. - Page 18 This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Shenzhen TOPFLYtech Co., Limited. All Rights Reserved...
