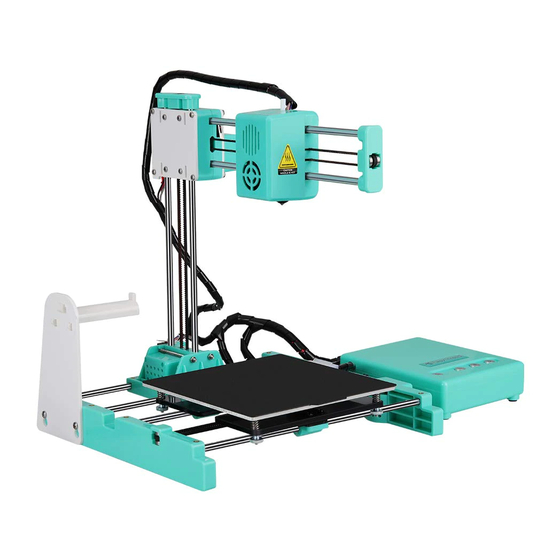

Easythreed X3 3D Printer Install Manual This manual is written in accordance with EasyThreed X3 3D printer。 Printer upgrades and equipment models are slightly different, is a normal phenomenon, based on the actual products received. User’s manual inside TF card.
Page 2
Parts List:Take out parts from package , check if all parts have as listed below。 1. Install the XZ Axis set to the Printer Base. 2. Install it downward in the direction of this arrow 1. Put Z-axis motor wire through this hole...
Page 3
2.After insert the XZ Axis, Fixed with 2 screws. Fixed with screws 3. Connect the Z-axis motor line to the output line of the printer control box as shown in the figure below.. Z-axis motor end-to-end docking...
Page 4
4.Install the Filament Holder as below. Important Notice:This filament holder can only hang on 250g weight filament. connect the power and start the 3D printing journey.。 ShenZhen EasyThreed Technology CO.,LTD http://www.easythreed.com info@easythreed.com...
