EasyThreed ELITE Quick Start Manual

Version 1.0
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QUICK START GUIDE
QUICK START GUIDE
VERSION 1.0
ELITE 3D PRINTER
Please read this User's Manual carefully before use.
Please keep this User's Manual properly for future reference.
Pictures are for reference only, subject to our available products.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE and is the answer not in the manual?

Questions and answers

Related Manuals for EasyThreed ELITE

Summary of Contents for EasyThreed ELITE

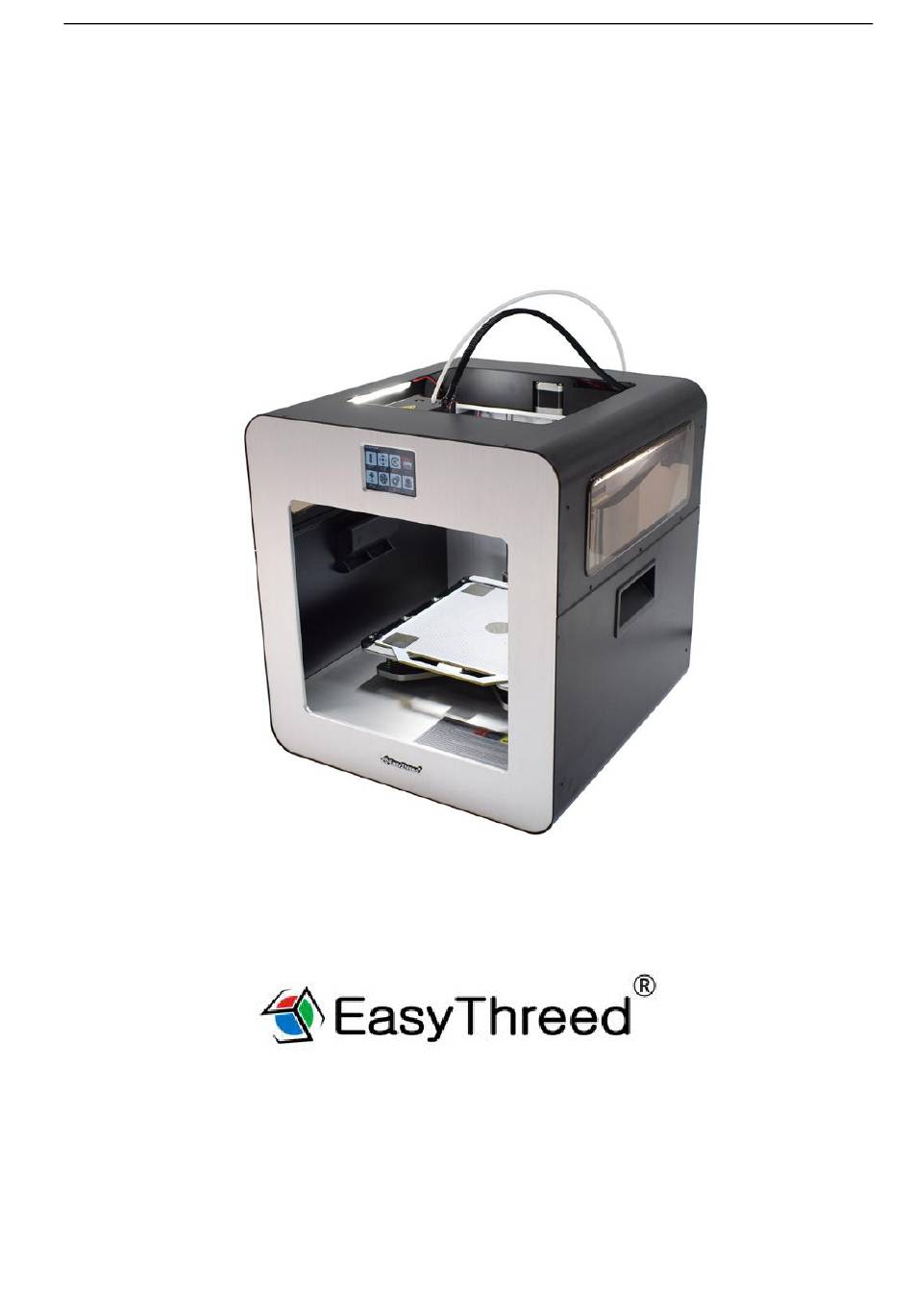

  • Page 1 QUICK START GUIDE QUICK START GUIDE VERSION 1.0 ELITE 3D PRINTER Please read this User’s Manual carefully before use. Please keep this User’s Manual properly for future reference. Pictures are for reference only, subject to our available products.

  • Page 2: Table Of Contents

    QUICK START GUIDE 1 Table of Contents SAFETY INSTRUCTIONS............................１ Machine placement..........................１ Specification for use of power supply....................１ Instructions during printing........................１ PRODUCT INTRODUCTION............................１ Name of main components........................１ Basic Parameter............................２ UNPACKING AND INSTALLATION..........................３ INTRODUCTION OF STARTING UP THE PRINTER....................４ Power On..............................

  • Page 3: Safety Instructions

    QUICK START GUIDE SAFETY INSTRUCTIONS Before installing and using this machine, make sure to read the following contents. Please do not use this machine with the methods not described in this User’s Manual. Try you best to avoid possible physical injury and property losses.

  • Page 4: Basic Parameter

    QUICK START GUIDE Cable Locker Filament spool Ribbon Cable Power Switch Power Socket 2.5 Basic Parameter  Print parameters Working environment - Working temperature: 5 °C- 35°C, Relative humidity: 30%-90%  Electric parameters Power input: 110-240V AC, 50/60Hz; Power output: 24V/DC, 8A Maximum power: 350W Nozzle diameter 0.4mm...

  • Page 5: Unpacking And Installation

    QUICK START GUIDE UNPACKING AND INSTALLATION 1. Open the packing box and check if it is sealed. 2. Unwrap the packing box to take out the manual and check if the accessories are complete. 3.Take out the top accessory box and then take out 3D 4.Take out the foam inside the printer Printer.

  • Page 6: Introduction Of Starting Up The Printer

    QUICK START GUIDE 7. Put the material through the Teflon hose. 8. Start to print. Teflon hose INTRODUCTION OF STARTING UP THE PRINTER Power On  Plug the power cord->Insert SD card->Power Switch on. The 3d printer starts up, as follows, ...
  • Page 7 QUICK START GUIDE Click handset, goes to XYZ adjustment operation page, click back after operation completed.  “+” means the forward direction ，“-”means the reverse direction， “H”accordance axis to be zero，“Back”mean to the setup auto page，“Unlock”means unlock the motor and can move by hand Click Feed/Retract, goes to Filament operation page, operate per instruction, click back after operation completed.

  • Page 8: Printing

    QUICK START GUIDE  Click LED Setup, goes to LED operation page, click back after operation completed. Then click back again to the home page.  Click help goes to help operation page, click back after operation completed and goes to home page. Printing ①...

  • Page 9: Instruction Of Lcd Display

    QUICK START GUIDE Instruction of LCD Display The above images shows the common control function, Customer could adjust per their own need, if any questions, please contact our after-sales department. MAINTANANCE  Do not try to use the methods those not described in this manual to disassembly or modify this machine, in order to avoid damage to the printer or other more serious accidents.

  • Page 10: Faq

    QUICK START GUIDE Remark 10. Small wrench and Directory 9. Data cable 11.Filament blanket 12、Instruction manual tweezers Quantity 1 pcs 1 set 1 pcs 1 pcs Remark Q1: Why is the printing model not adhesive to the platform? A1: The nozzle is too far away from the platform, Adjust the distance between them to assure that the distance is just enough to get through a calibrated film.
  • Page 11 With the maturity of 3D printing, FDM printing supplies on the market is rich and multiple color, But the compatibility of supplies and printers is particularly important. Thank you for choosing EasyThreed 3D Printer! Shenzhen EasyThreed Technology Co., Ltd. Website: http://www.easythreed.com Tel: 86-755-89882011 No.
