Lucci LEDlux HENRI Installation Instructions

Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this luminaire. Please keep instructions for future reference.

Warranty

•
This portable luminaire is covered by a 3-year warranty valid for in-store replacement or refund only.
•
The warranty period starts from the date of purchase. Please retain the proof of purchase.
•
Warranty will be void if there is any damage due to improper usage or modification to the portable luminaire.
•
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void the warranty.

Installation Requirements

•
Select a suitable location for the portable luminaire:
Ensure it is on a flat and stable surface.
-
This portable luminaire is suitable for indoor use only.
-
Do not place flammable material near or over the portable luminaire.
-
Ensure the portable luminaire is not installed in direct line of an air vent/system.
-
If the portable luminaire is placed in an area prone to moisture, ensure that the area is well ventilated, and an
-
appropriately rated exhaust fan is used if required. Damage or corrosion caused by moisture is not a product
fault, and as such is not covered under warranty.
•
Only use the supplied plug in LED driver with this luminaire.
•
Take care not to pull any electrical wires during unpacking as this may damage the connection.
•
Lay out all the components on a smooth surface and make sure no components are missing before assembling.
If parts are missing, return the complete product to the place of purchase for inspection or replacement.
•
Check whether the luminaire has been damaged during transport. Do not operate/install any product which appears
damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
•
Do not plug into the mains power socket outlet before or during assembly. Only do so after the portable luminaire is
fully assembled and is ready to use for the first time.

Installation Directions

1. Remove all packaging material from the product and be careful not to throw away accessories that may be hidden
within the packaging material. Place the luminaire on a smooth non-scratch surface to help with assembly.
2. Attach the bottom half of the luminaire (F) onto the top half of luminaire (E) by twisting it clockwise. Install the base
(G) onto the bottom half of the luminaire (F) and secure it, by tightening the nut (H) using the supplied spanner (I).
NOTE
: Pull the cord out from the bottom as you assemble to remove any slack and take care not to cross-
thread during assembly.
3. To adjust the arm (B), loosen the grub screw (D) using the supplied Allen key (C). After adjusting to the desired angle,
tighten the grub screw again.
NOTE
: Do not adjust the arm (B) more than 90, as this may damage the knuckle joint or the internal wiring.
4. To adjust the body (F), loosen the grub screw (K) using the supplied Allen key (J). After adjusting to the desired angle,
tighten the grub screw again.
NOTE
: Do not adjust the body (F) more than 16, as this may damage the knuckle joint or the internal wiring.
5. Insert the power adaptor connector (M) into the luminaire connector (L).
6. Insert the power adaptor into the mains power socket outlet and ensure it is fully plugged in.
7. Turn on the mains power socket outlet.
8. Press the touch switch (A) (short press) to turn the portable luminaire ON/OFF.
Press and hold the touch switch (A) (long press) to adjust the brightness of the portable luminaire.
1 | P a g e

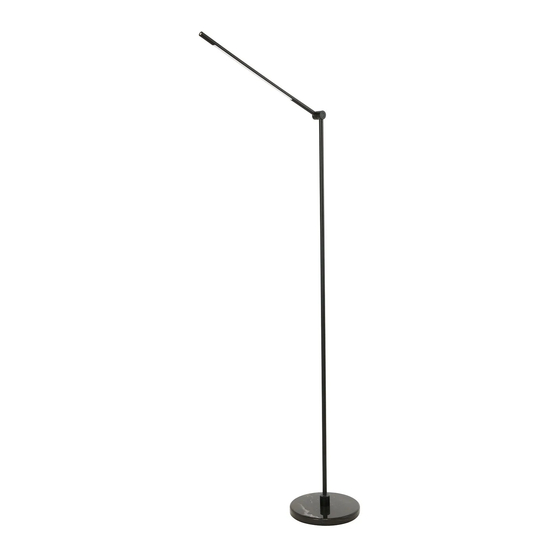

HENRI LED FLOOR LAMP
SKU# 269424, 269425
Rated Voltage 220-240V~ 50Hz
v 1 . 0 ( 0 6 / 2 0 2 0 )
