Kesseböhmer DISPENSA VVS Series Handling Instructions

HANDLING INSTRUCTIONS
for DISPENSA VVS-x
Top damper
Support frame
Front connector
(inside)
Problem Possible cause
1. Shifted segment; Synchromatic defective.
2. Bottom runner dirty.
3. Connection between support frame
4. Bottom damper is unlatched.
1. Door will not close 5. Are the screws tight? Are you using the correct
completely
6. Are the top/bottom runners correctly
7. Has the cabinet been assembled correctly?
1. Bottom runner dirty.
2. Pull-out makes a noise
2. Is fifth foot correctly positioned for cabinet
during opening and closing
3. No soft close damping
1. Is the top damper installed?
(with option installed)
2. Is the top damper locked in place?
Top runner
(with stop point)
Bottom runner
and bottom runner is loose.
screws?
positioned?
a) Is it vertical and level? (b) Is the fifth foot
correctly positioned for cabinet widths >40 cm?
widths >40 cm?
Stop point
Trays or
baskets

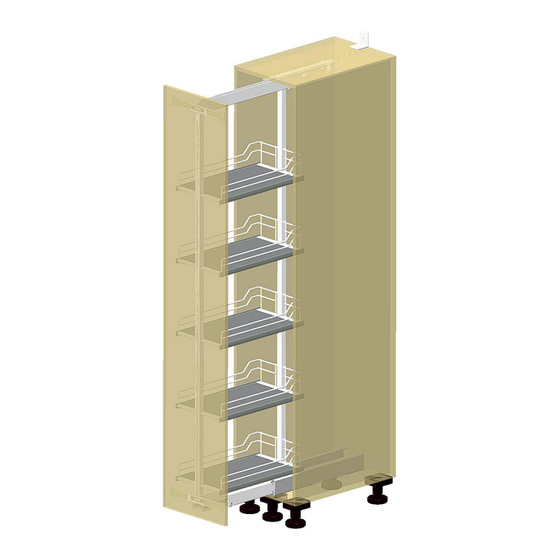

Pull-out components:
■
■
■
■
■
■
■
■
Follower with Synchro lever
Bottom damper
Possible solution (summary)
Replace follower with Synchro lever.
Clean the runner. (No oil!)
Check the connection between the frame and the
bottom runner and tighten if necessary.
Push the front panel against the cabinet until you
hear the damper mechanism engage.
1. Tighten screws.
2. Use the correct screws.
Position top/bottom runners correctly.
(a) Align the cupboard so it is plumb and level.
(b) Position fifth foot correctly and adjust until
cabinet is level.
Clean the runner.
Install and adjust fifth foot.
Install the damper.
Push the damper forward until it locks in place.
02/2012
Top runner
Support frame
Trays or baskets
Front panel connector
Bottom runner
Top damper
(optional)
Bottom damper
(optional)
Follower with Synchro lever
Full information
1.1
1.2
1.3
1.4
1.5
1.6
1.7 1.7 (a) 1.7 (b)
2.1
2.2
3.1
3.2
KESSEBÖHMER l 1 l 2 l 3 l 4 l 5
