- Page 1 Assembly Instruction D-GZ215PST-4-3...
- Page 2 Parts List Post Base Base Cover Long Beam(short side) Short Beam(short side) Long Beam(long side) Short Beam(long side) Bottom tube of slanting beam Middle Beam Connector Slanting Bar Long Middle Beam Short Middle Beam Long Netting Bar Short Netting Bar Big Top Connector Hook Small Top Connector...
- Page 3 Parts List Slanting Support Bar Hardware Pack 1 M6x15 Bolt 56 PCS M6 Flat Washer 80 PCS M6x15 Bolt 24 PCS M6 Wrench 1 PC Fig.1: Insert Base Cover (C) into Post (A), attach Base (B) to Post (A) by using Bolt (AA) and Flat Washer (BB). Fig.2: Attach Long Beam (F) to Short Beam (G) by using Bolt CC and Flat Washer BB.
- Page 4 Fig.5, Fig.5-1: Attach Slanting Support Bar (X) to Beam and Post (A) by using Bolt (AA) and Flat Washer (BB). Fig.6: Attach Middle Beam Connector (I) to Beam (D, E, F, G) by using Bolt (AA) and Flat Washer (BB). Hardware Pack 2 M6 Flat Washer 16 PCS...
- Page 5 Fig.11: Attach Long Middle Beam (L) and Short Middle Beam (M) to Middle Beam Connector (I) respectively by using Bolt DD, Flat Washer BB, Nut EE. Fig.12: Insert Small top support beam (S) into Small Top Connector (R). Fig.13: Put Big Canopy (T) on the big top and do not expand it now. Assemble the Small canopy (U) into 4 corners of Small Top Support Beam (S).

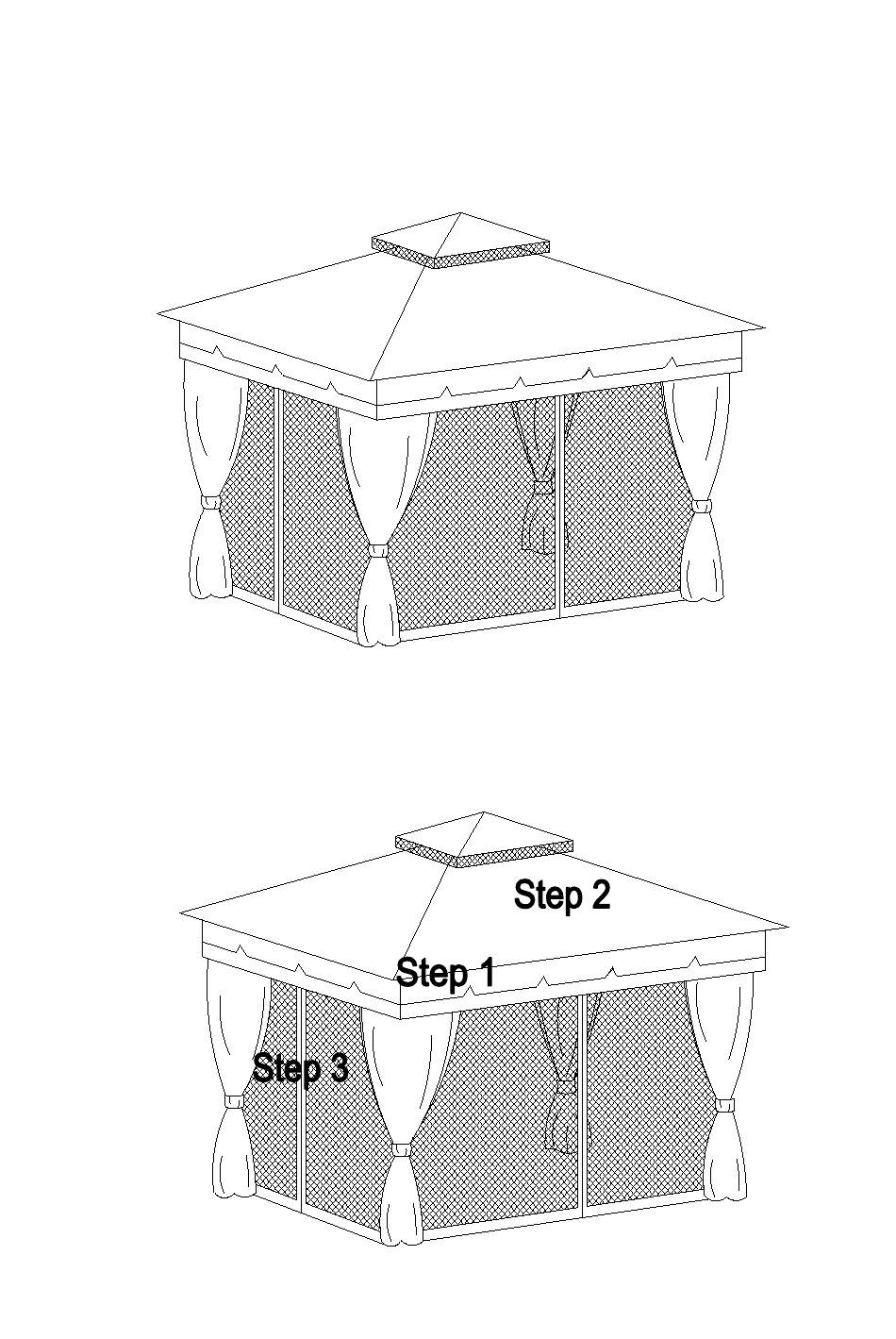

- Page 6 Fig.15: Spread Big Canopy (T) and fix it into Bottom tube of slanting beam (H). Fig.16: Hang Mosquito Netting (W) and Curtain (V) on the beam (D, E, F, G) and Netting bar (N, O) by using Plastic Ring (GG). Fig.17: Up Base cover (C), use Stake (FF) to fasten the gazebo on the ground and now your gazebo is ready for use.
- Page 7 Please take time to read these instructions thoroughly and follow each step carefully for safe and easy operation. Keep this manual for future reference. For technical assistance on assembly or replacement parts, call Sunjoy Industries at 1-866-578-6569 from 8:30AM to 5:30PM EST, or email us at customer.care@sunjoydirect.com, or visit www.sunjoydirect.com for assistance.
