Summary of Contents for Sunjoy D-GZ399PST-H
-
Page 1: Assembly Instructions

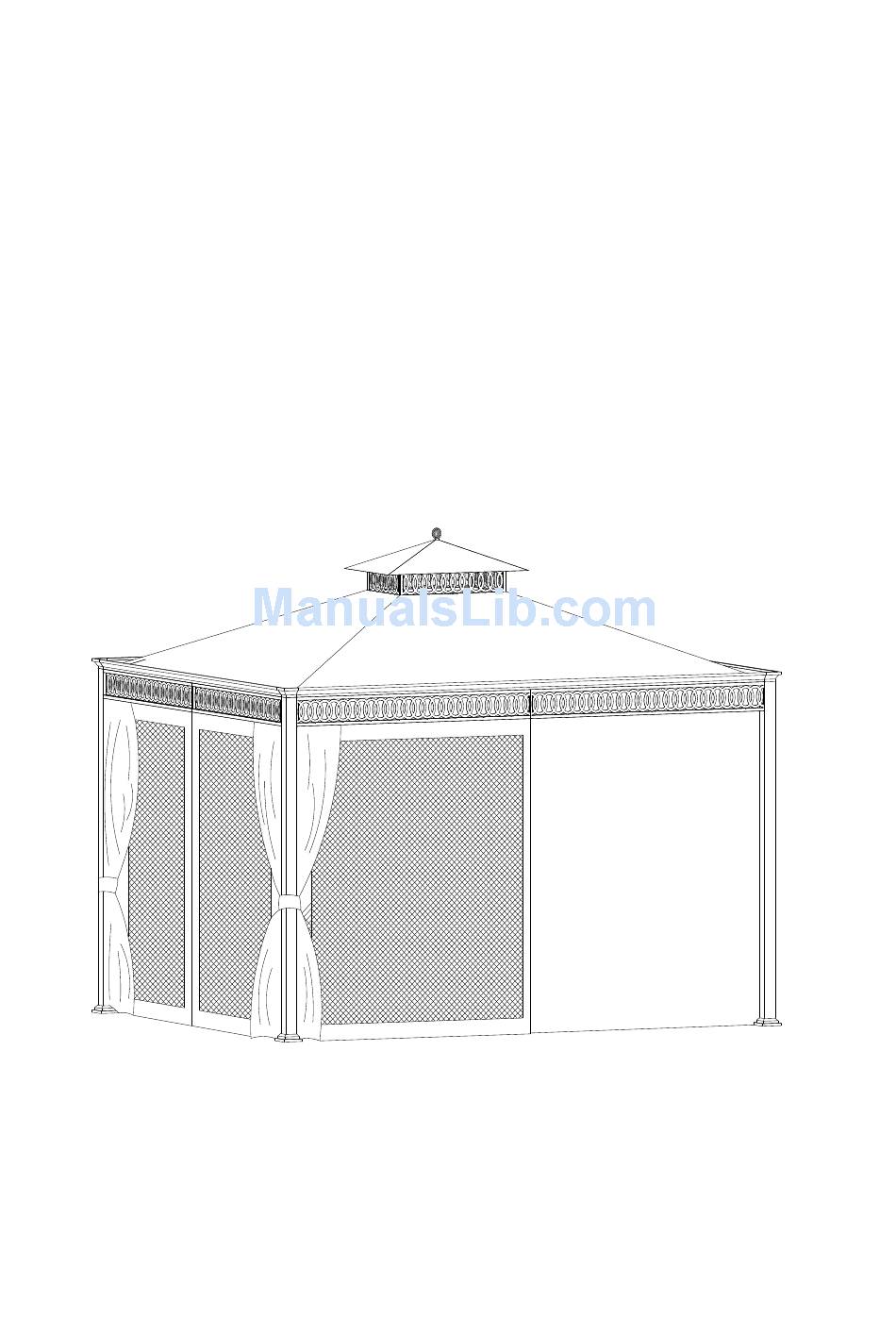

Assembly Instructions Item#:D-GZ399PST-H 0 / 10... -
Page 2: Safety Information
Thank you for your purchase! We are pleased that you have chosen Sunjoy for your outdoor furniture purchase. Our clear, easy to follow, step by step instructions will guide you through the project from start to finish. Safety information •Keep all children and pets away from assembly area. Children and pets should be supervised when they are in the area of the production construction. - Page 3 1-866-578-6569 for help. •This unit is heavy. Do not assemble this item alone. At least two or more people are recommended for safe assembly. •Tools Required for assembly (NOT included): Screwdriver, a hammer, and a ladder not lower than 2m (about 6.6 feet).
- Page 4 Parts List Description Part# Label Image Post GZ0399XXH01 Base cover GZ0399XXH02 Post base GZ0399XXH03 Long panel 1 GZ0399XXH04 GZ0399XXH05 Long panel 2 GZ0399XXH06 Short panel 1 Short panel 2 GZ0399XXH07 Slanting bar GZ0399XXH08 Short mid top bar GZ0399XXH09 Long mid top bar GZ0399XXH10 Slanting bar GZ0399XXH11...
-
Page 5: Hardware Pack
Small top bar 2 GZ0399XXH16 GZ0399XXH17 Hook Long panel of top GZ0399XXH18 frame Small panel of top GZ0399XXH19 frame Long netting bar GZ0399XXH20 GZ0399XXH21 Short netting bar GZ0399XXH22 Top Finial GZ0399XXH23 Small canopy GZ0399XXH24 Large canopy GZ0399XXH25 Curtain GZ0399XXH26 Mosquito netting Hardware Pack 1 Description Part#... - Page 6 Fig.1: Slide the Base protector (B) onto the Post (A), connect the Post base (C) and post (A) by using bolt (AA) and flat washer (BB). Fig.2: Attach the Conner decor block (J) onto the top of the post (A) by using bolt (AA) and flat washer (BB). Fig.3: Insert the Long panel 1 (D1) into Long panel 2 (D2), attach them by using bolt (CC) and flat washer (BB).
- Page 7 Hardware Pack 2 Description Part# Label Image M6*15 bolt SM06015C M6 flat washer UD06C M6*15bolt BM06015C M6*25 bolt BM06025C Fig.7: Attach Long panel of top frame (N1) to Small panel of top frame (N2) by using bolt (DD) and washer (BB). Fig.8-1: Insert Slanting bar (F) to Slanting bar Connector (H).
- Page 8 Fig.13: Attach each corner of the small canopy (Q) to the end of the top slanting bar (L) . Fig.14: Screw the Top Finial (P) to Small top connector (K). Fig.15: Attach assembled small top to the corner of top frame, attach the netting of small canopy onto the preassembly hook-and-loop fasteners inside of small top frame.
-
Page 9: Care And Maintenance
Please do not return this product to the store. For technical assistance or replacement parts, please call Sunjoy Group at 1 (866) 578-6569 between 8:00 AM EST and 8:00 PM PST. You may fax your replacement parts form (which is included in the packaging) to 1 (740) 283-3549 or email to customer.care@sunjoygroup.com... -
Page 10: Limited Warranty
Limited Warranty •This limited warranty is extended to the original purchaser and applies to defects in materials and workmanship of your item provided the item is maintained with care and used only for personal, residential purposes. •The item is warranted to be free from defects in material or workmanship for a period of one (1) year.
